5.1 List of duct distribution system spare
parts
Important:
•
use liquid Tefl on guaranteed for water pressures up to 100 bars to seal
the water connections;
•
wait 3 hours for the Tefl on to set.
64
69
66
77
62
65
72
70
76
Fig. 5.a
79
0
78
Fig. 5.b

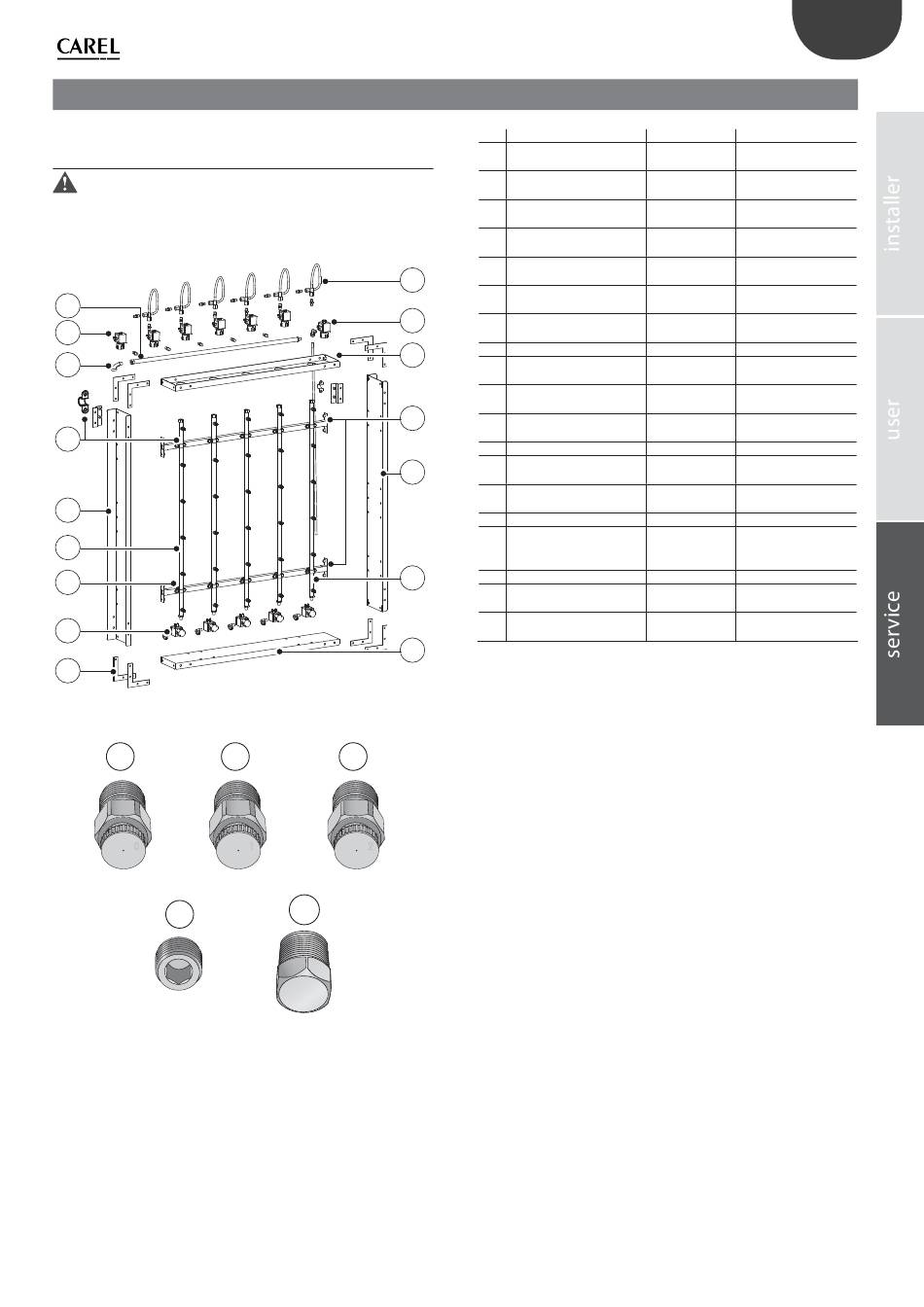

5. RACK SPARE PARTS

74 75
1 2
73
ref. description
60 frame top side
61 frame bottom side
62 side shoulder
63 vertical manifold support
bar
64 horizontal manifold
67
65 vertical manifold
70
66 M/F G1/4" elbow
connector
67 G1/8" hose
60
69 24 V 50 Hz NC stainless
steel solenoid valve
70 24 V 50 Hz NO stainless
steel solenoid valve
63
72 kit of 15 M3 screws for
adjusting manifold angle
73 M G1/8" plug
74 atomising nozzle MTP1 2.8
62
kg/h marked "1"
75 atomising nozzle MTP2 4.0
kg/h marked "2"
76 kit of 8 brackets
77 kit for vertical manifold
assembly with screws and
washers
77
78 M 1/8" NPT plug
79 atomising nozzle MTP1
1.5 kg/h
kit of washers and M6 bolts
for complete rack assembly
61
"humiFog multizone Recambios/spare parts" +030222102 rel. 1.0 - 12.05.2009
ENG
code notes
14C585A1** ** = 00 to 15 based on
the length
14C470A1** ** = 00 to 15 based on
the length
14C585A1** ** = 20 to 35 based on
the length
14C470A1** ** = 40 to 55 based on
the length
98C585P2** ** = 80 to 95 based on
the length
98C585P2** ** = 60 to 75 based on
the length
1309610AXX
14C531A097
1312079AXX
1312115AXX
UAKVITIM30
1309633AXX
UAKMTP1000
UAKMTP2000
UAKS000000
UAKMOR0000
1309639AXX
UAKMTP0000
UAKVITIM60
Tab. 5.a
