Hanil Fleta 5 Quick Manual

Quick Guide
Display & Control Panel
'Mode' Rotary Knob
Turn the knob: Select a parameter
Setting Run Parameters
(RPM / RCF / Time / ACC / DEC)
Setting Rotor ID & Bucket
Be sure to set the ID of the rotor
or bucket correctly before use.
Calling up a Program
Turn the Enter knob to
select the desired
program number

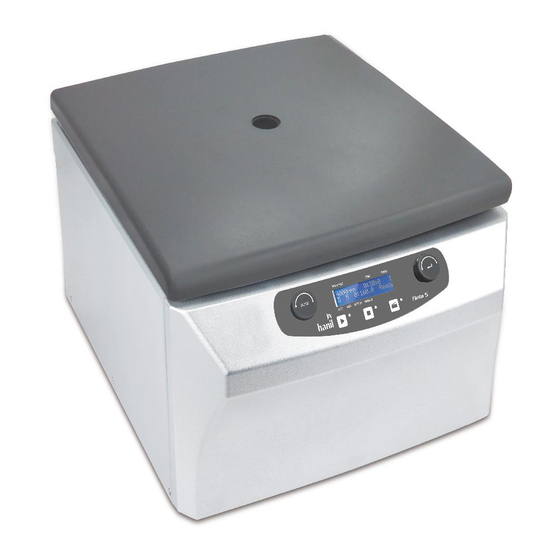

Fleta 5
Cat. No. : FL-5
Display Screen
Status of RPM / RCF / Time /
Rotor ID / ACC / DEC / Program
Start Stop
Press the Enter
knob
Press the Enter
knob
Saving a Program
Turn the Enter knob to Setting run parameters
select the desired (See 'Setting Run
program number Parameters')
Serial No.
Max. RPM
Max. RCF
Timer
Program
ACC / DEC Ramps
'Enter' Rotary Knob
Turn the knob : Up or down the values
Press the knob : Setting mode, Save the values
Lid Open
Turn the Mode knob to select
a parameter to be changed
Turn the Mode knob to move
the cursor to Rotor ID mode
Press Enter knob
Installation Date
5,500 rpm
6,230 xg
< 100 hr, continuous
100
9/10
Turn the Enter knob
to increase, decrease the
values + Press Enter button
Turn the Enter knob to set
the rotor ID +
Press the Enter button
Do you save?
Select [YES]
+ Press Enter knob
