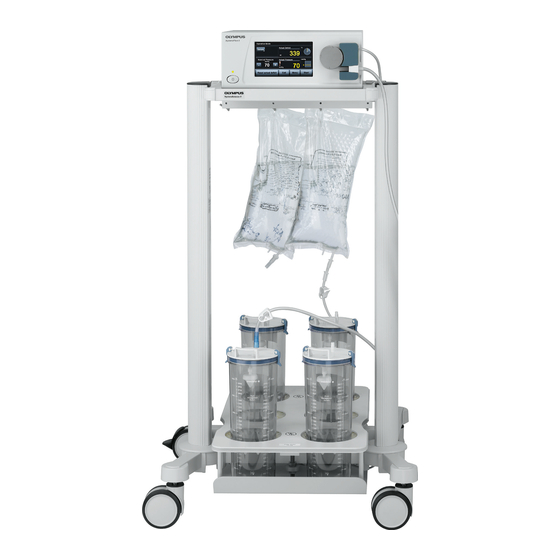

- Page 1 HysteroFlow / HysteroBalance II Hysteroscopic Fluid Management System Quick Reference Guide...
- Page 2 Warning This quick reference guide is only a summary of the HysteroFlow/HysteroBalance II Instructions for Use. For detailed operating instructions, be sure to follow the Instruction Manual that was included with your device when purchased. Hy s te r o flo w Qu i ck R ef e re n c e G u i d e...
- Page 3 Connect Inflow Tubing 1. Turn the unit on. 2. After self test, press Menu to check or change system settings. (Refer to page 4 for menu settings) 3. Hang fluid irrigation bags on the upper scale hooks. 4. Close inflow and outflow stopcocks on the instrument.
- Page 4 Menu Settings After each menu selection, press OK. Nominal Flow Menu Select a nominal flow value between 30 and 500 ml/min. Maximum Deficit Menu Select a deficit threshold value between 200 and 2500 ml. Alarm Volume Menu Select a volume between 1 and 5. Bag Size Select a bag size between 0 and 5 liters.
- Page 5 Connect Outflow Tubing To Suction 1. Place containers on the bottom scale and toggle them with the connection tubes. 2. Connect the yellow Leur Lok on the outflow tubing to the outflow port of the instrument. 3. Connect the short end of the Y tube to the patient drape.
- Page 6 Begin the procedure Warnings Warning Message Alert Cause Change Fluid Bag 3 Beeps > 500 ml remaining Deficit Reached 3 Beeps Deficit exceeds the preset value Overpressure 3 Beeps Actual pressure 10 mmHg above nominal pressure Deficit Exceeded 10 Beeps In increments of 100 ml above the preset value Actual pressure >...
- Page 7 System Accessories Part # Description WA40634A Inflow and Outflow Tubing Set, Sterile, 5/pkg WA40635A Inflow Tubing Set, Sterile, 10/pkg 006775-901 Under Buttocks Drape/Fluid Collection Set, 5/pkg 006772-901 3L Canisters 36/pkg WA40634A WA40635A Inflow and Outflow Tubing Set, Sterile, 5/pkg Inflow Tubing Set, Sterile, 10/pkg 006772-901 3L Canisters 36/pkg Hy s te r o flo w Qu i ck R ef e re n c e G u i d e...
- Page 8 Option 2: Orders/Order Status Option 3: Service & Repair Olympus is a registered trademark of Olympus Corporation, Olympus America Inc., and/or their affiliates. Medical devices listed may not be available for sale in all countries. For more information, contact your Olympus sales representative, or call 800-848-9024.
