This instruction manual is for the Olympus Arms Used with Microscopes for Equipment Mounting. To
ensure the safety, obtain optimum performance and to familiarize yourself fully with the use of this
equipment, we recommend that you study this manual thoroughly before operating the system.
Retain this instruction manual in an easily accessible place near the work desk for future reference.

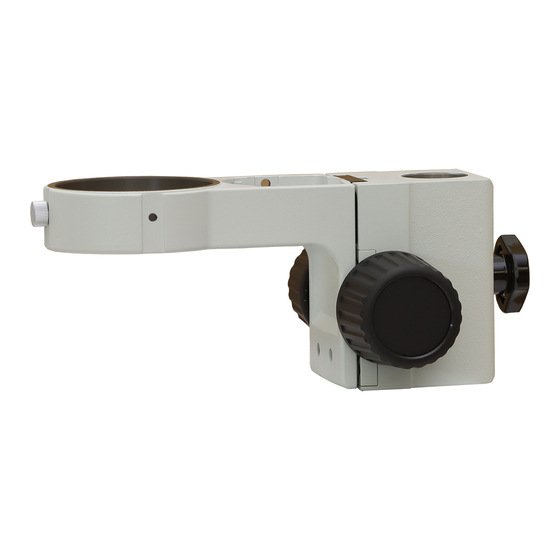

SZ2-STS/SZ2-STB1
SZ2-STP/SZ2-STB2
SZ2-STB3
Arms Used with Microscopes for
INSTRUCTIONS
Equipment Mounting
A X 7 2 6 6
Advertisement
Table of Contents
Related Manuals for Olympus SZ2-STS
Summary of Contents for Olympus SZ2-STS
- Page 1 Arms Used with Microscopes for Equipment Mounting This instruction manual is for the Olympus Arms Used with Microscopes for Equipment Mounting. To ensure the safety, obtain optimum performance and to familiarize yourself fully with the use of this equipment, we recommend that you study this manual thoroughly before operating the system.
- Page 2 }All of the modules are provided with the electrostatic discharge (ESD) feature. However, the clamping knobs of the SZ2- STS/STB2/STB3 are not provided with the ESD feature. Arm for SZX Stand Bonder Arm SZ2-STS SZ2-STB1 Retaining screw Equipment mounting shaft x 3 screws 15.8 mm...
- Page 3 SZ2-STS/STP/STB1/STB2/STB3 Prober Arm Bonder Arm SZ2-STP SZ2-STB2 Equipment mounting hole 24.5 mm Retaining screw Clamping knob x 3 screws Retaining screw x 3 screws Focus Equipment mounting adjustment screw hole knob x 4 positions Allen wrench Allen wrench Focus adjustment...
- Page 4 Bonder Arm SZ2-STB3 Equipment mounting hole 24.5 mm Clamping knob Focus adjustment Clamping screw knob LSGA mounting section x 3 positions...
- Page 5 ASSEMBLY Mounting on the Equipment (Figs. 1 to 3) SZ2-STS, SZ2-STB2 or SZ2-STB3 Loosen the clamping knob @, fit the equipment mounting hole into the pole ² of the system and tighten the clamping knob @ firmly. # When mounting the equipment for the SZX, remove the drop-preven- tion ring from the stand.
- Page 6 SZ2-STP Fix the equipment mounting focusing arm firmly by inserting and tighten- SZ2-STP ing three or more hex-socket screws 5. # Mount so that the optical axis of the microscope and surface of the specimen are not tilted. Fig. 3...
- Page 7 SZ2-STS/STP/STB1/STB2/STB3 Attaching the Microscope Frame (Figs. 4 & 5) SZ2-STS, SZ2-STB1 or SZ2-STB3 1. Loosen the clamping screw @ and insert the microscope frame. The clamp- ing screw can be attached to any of the three positions around the arm.
- Page 8 Attaching the LSGA Illuminator (Fig. 6) # The LSGA cannot be attached ton the SZ2-STB2 and SZ2-STP. Using the IHA or IHD holder, the LSGA illuminator can be attached to any of the five (or three with the SZ2-STB3 in combination with the IHA mount- ing holder) LSGA attaching positions @ on the arm.
- Page 9 SZ2-STS/STP/STB1/STB2/STB3 SPECIFICATIONS Item Specifications Model SZ2-STS SZ2-STB1 +0.2 Microscope attaching method Insertion (attaching hole diameter 76 mm). Attaching using a clamping knob. Ball guide system, up/down movement with rack & pinion. Focus adjustment Focus adjustment stroke 50 mm Focus adjustment knob tension adjustable.
- Page 10 Item Specifications Model SZ2-STB3 +0.2 Microscope attaching method Insertion (attaching hole diameter 76 mm). Attaching using a clamping knob. Focus adjustment Up/down movement with rack & pinion and dovetail guide. Focus adjustment stroke 43 mm. Focus adjustment knob tension adjustable. Illuminator (LSGA) attaching method Possible using an LSGA attaching holder (IHA).
- Page 12 Manufactured by Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan Distributed by (Biological) (Industrial) 8F Olympus Tower, 446 Bongeunsa-ro, Gangnam-gu, Seoul, Korea 135-509 AX7266 04...
