Summary of Contents for Olympus FLUOVIEW FV10i-DOC

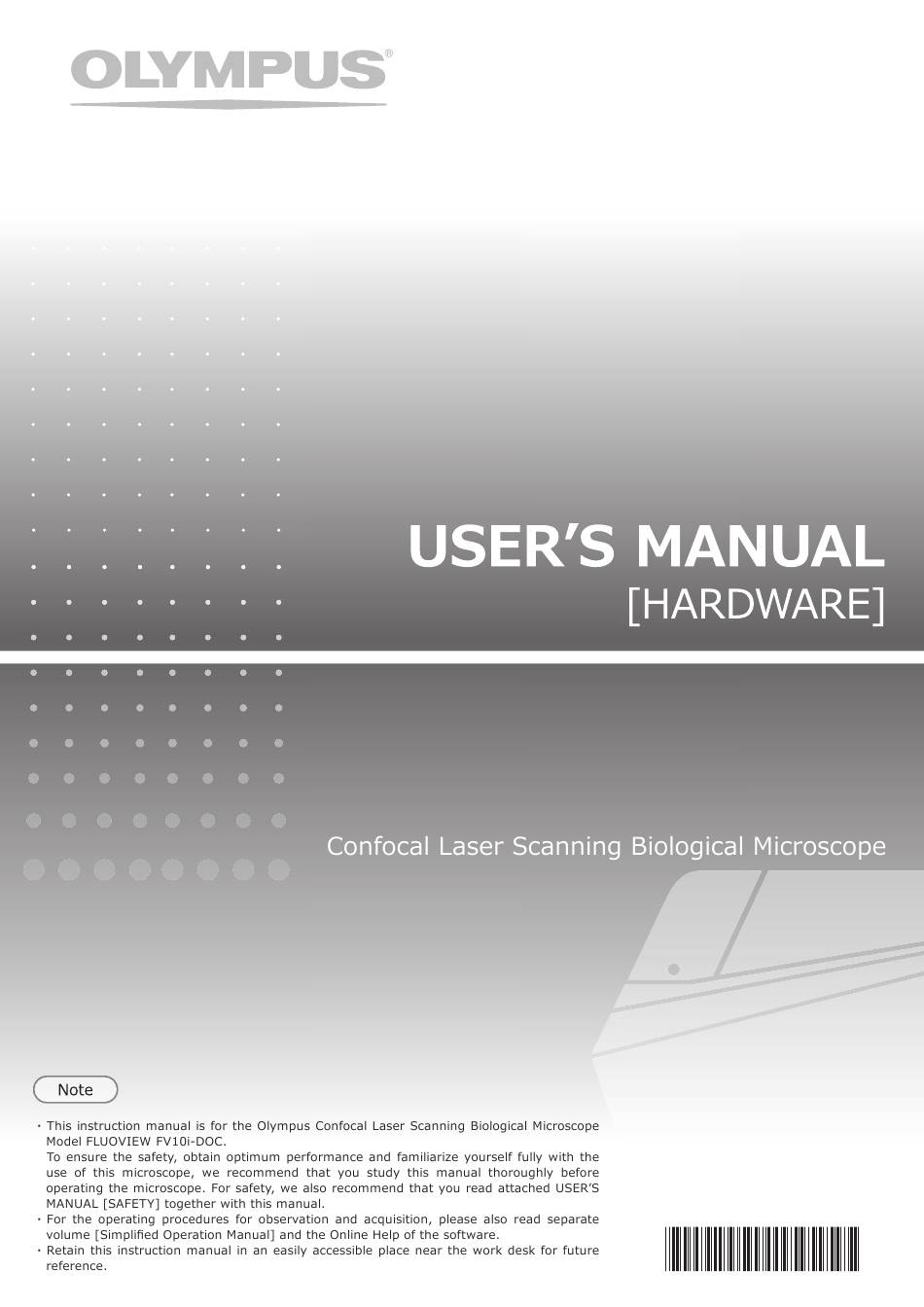

- Page 1 FLUOVIEW FV10i-DOC A X 8 0 1 9 [ TYPE 3]...
-
Page 3: Table Of Contents
FLUOVIEW FV10i-DOC CONTENTS IMPORTANT SYSTEM AND MAIN CONTROLS ASSEMBLY Connecting the Cables ................................5 Placing the Specimen ................................... 6 USING THE IMMERSION OIL Attaching Immersion Oil ................................7 Removing Immersion Oil ................................7 Draining Water from the Water Tray .......................... 7 PROPER SELECTION OF THE POWER SUPPLY CORD ................ - Page 4 IMPORTANT For safety precautions, please refer to attached USER’S MANUAL [ SAFETY ]. Getting Ready 1. Three forms of specimen (containers) can be used including a 35 mm glass-bottom dish, slide glass (76 mm x 26 mm) and well slide (8 compartments). The standard thickness of the cover glass is 0.17 mm, but the range from 0.13 to 0.21 mm is acceptable.
- Page 5 FLUOVIEW FV10i-DOC SYSTEM AND MAIN CONTROLS Main Unit: FV10C-O3 Cover Close lever Cover lock buttons Push the botton to open the cover. Water tray Sub-switch Press and hold for 3 seconds to switch the system OFF. Status LEDs }Status LEDs when both the main and sub switches are ON. LEDs Laser Software...
- Page 6 Specimen holder 1. Specimen holder for slide glass: FV10C-HOS-2 2. Specimen holder for 35 mm dish: FV10C-HOD1 Immersion oil applying hole Immersion oil applying hole Map area indicator Dish stopper Holder handle Positioning hole Positioning hole Specimen stoppers 3. Specimen holder for well slide: FV10C-HOW Slide glass stopper Holder handle Positioning hole...
- Page 7 FLUOVIEW FV10i-DOC Power Supply Unit: FV10C-PSU Main switch Power cord connector Output connector Controller: FV10C-CU }The software is pre-installed. }The display is not provided. Please prepare a WUXGA (1920 x 1200 pixels) display. Main switch Software: FV10i-SW Dongle...
-
Page 8: Assembly
· Cables and cords are vulnerable to bend or twist. Do not apply CAUTION excessive force to them. · Always use the power cord provided by Olympus. If no power ² cord is provided, please select the power cord by referring to the section “PROPER SELECTION OF THE POWER SUPPLY... -
Page 9: Placing The Specimen
FLUOVIEW FV10i-DOC Placing the Specimen (Figs. 2 to 4) 1. Push and hold the cover button @, and lift the cover. 2. Place the specimen. · Be sure to take out the specimen holder from the main unit CAUTION ² before placing the specimen on it so that the specimen will not drop inside the main unit. -
Page 10: Using The Immersion Oil
USING THE IMMERSION OIL }When an oil-immersion objective is engaged in the light path, the display shows a message that requests you to attach immersion oil (which should be the oil designated by Olympus). (Displayed message: “Please replenish objective lens with oil.”) Attaching Immersion Oil (Fig. -
Page 11: Proper Selection Of The Power Supply Cord
If no power supply cord is provided, please select the proper power supply cord for the equipment by referring to “ Specifications ” and “ Certified Cord ” below: CAUTION: In case you use a non-approved power supply cord for Olympus products, Olympus can no longer warrant the electrical safety of the equipment. - Page 12 Table 2 HAR Flexible Cord APPROVAL ORGANIZATIONS AND CORDAGE HARMONIZATION MARKING METHODS Alternative Marking Utilizing Printed or Embossed Harmoniza- Black-Red-Yellow Thread (Length tion Marking (May be located on Approval Organization of color section in mm) jacket or insulation of internal wir- ing) Black Yellow...
- Page 13 MEMO...
- Page 14 MEMO...
- Page 16 Shinjuku Monolith, 3-1, Nishi Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan Wendenstrasse 14-18, 20097 Hamburg, Germany 3500 Corporate Parkway, Center Valley, Pennsylvania 18034-0610, U.S.A. 491B River Valley Road, #12-01/04 Valley Point Office Tower, Singapore 248373 31 Gilby Road, Mount Waverley, VIC., 3149, Melbourne, Australia 5301 Blue Lagoon Drive, Suite 290 Miami, FL 33126, U.S.A.
