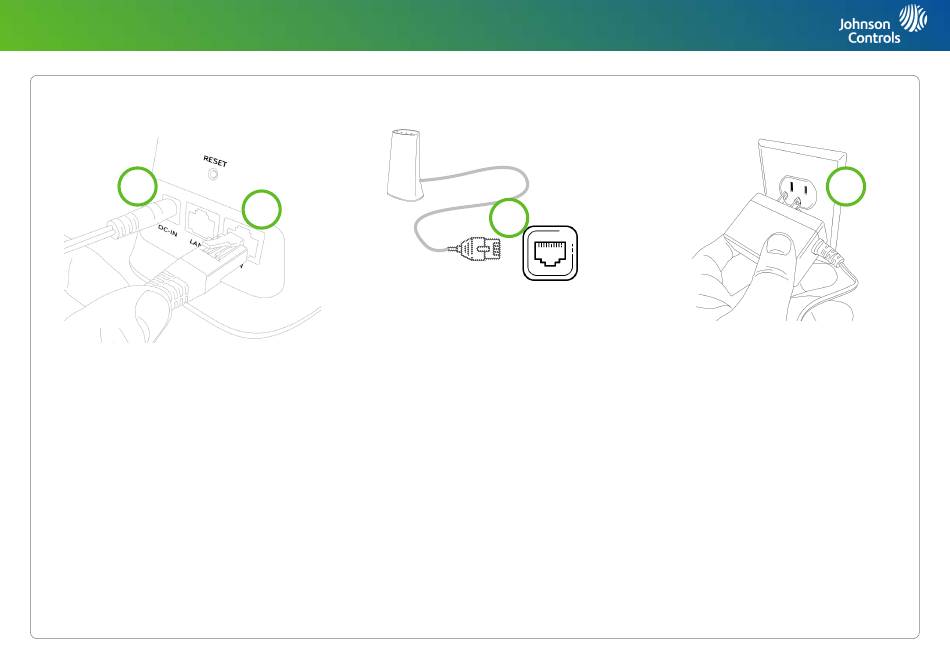

CONNECTING THE WIRES
1
1. Plug the barrel jack end of the
power supply into the "DC-IN" port
2. Connect the provided ethernet
cable into the "WAN" port
*Please note: If you are installing IQ WiFi to run in parallel to the customer's primary network, plug the ethernet cable into
an available port on the customer's existing router
2
3. Connect the opposite end of the
provided ethernet cable into the
"ETHERNET" port on the modem*.
JOHNSON CONTROLS CONFIDENTIAL AND PROPRIETARY
3
MODEM*
PAGE
10
OF
45
4
4. Plug in your power supply
to the wall outlet. System
may take up to 3 minutes
to power up.
