INSTRUCTIONS FOR USING THE MICROSCOPE
INTENDED USE:
The PRIMA OPH surgical microscope has been
designed for surgical
of ophthalmology, i.e. the microscope meets the
special requirements of this discipline.
DESCRIPTION OF THE MODULES
The PRIMA OPH surgical microscope comprises the
following modules:
1. X-Y COUPLING
The X-Y coupling allows fine, motorized positioning
of the surgical microscope in a horizontal plane.
The range of travel is 50mm x 50mm.
The X-Y coupling is provided with a reentering
facility. Then you press the red activator button
shown as (A) in fig.-13
- the X-Y coupling adopts its center position
- XY movement is done through joystick provided
foot control.
Z axis movement: Z axis coupling allows fine
Motorized focusing of the area of interest within a
travel range of 40mm Two foot paddles are provided
on the foot control to facilitate up and down
movement of Z-axis.
2. SUPPORT ARM FOR THE SURGICAL MICRO-
SCOPE
The Support contains a tilt device, allowing the
viewing direction of the surgical microscope to be
adapted to the surgical field as required, maximum
tiltation is 90° forward.
3. MAIN MICROSCOPE
The Max lite coated optics of the main microscope
provide superb optics quality. The microscope
image displays optimum contrast and excellent
detail recognition along with a large depth of
Field.
The bright microscope image is a particular benefit
in vitreoretinal surgery.
The objective lenses with the focal lengths of
175mm and 200mm are available for different
working distance.
6135000-795
procedures in the field
PRIMA OPH
Prima OPH
A

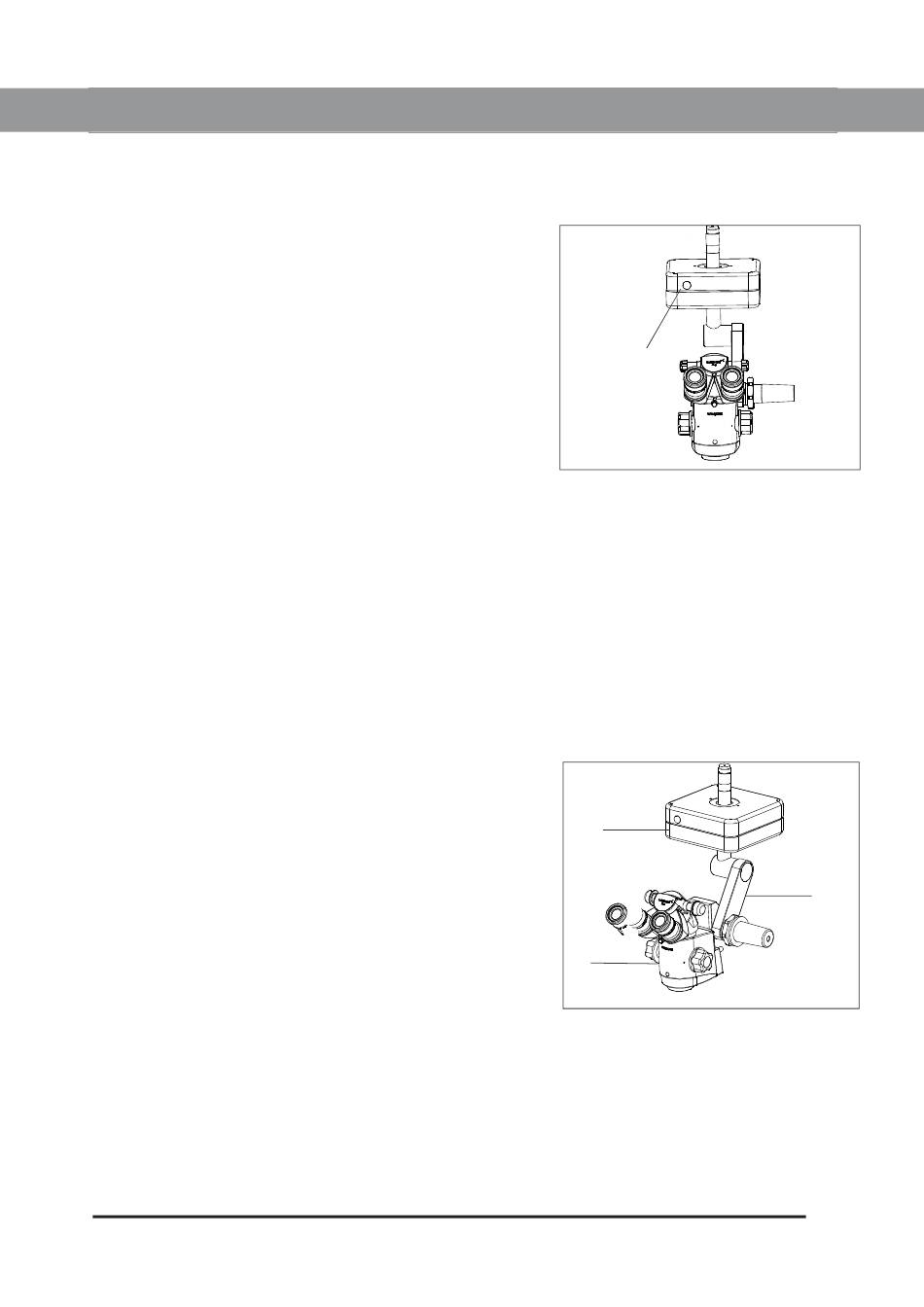

Fig. 13
