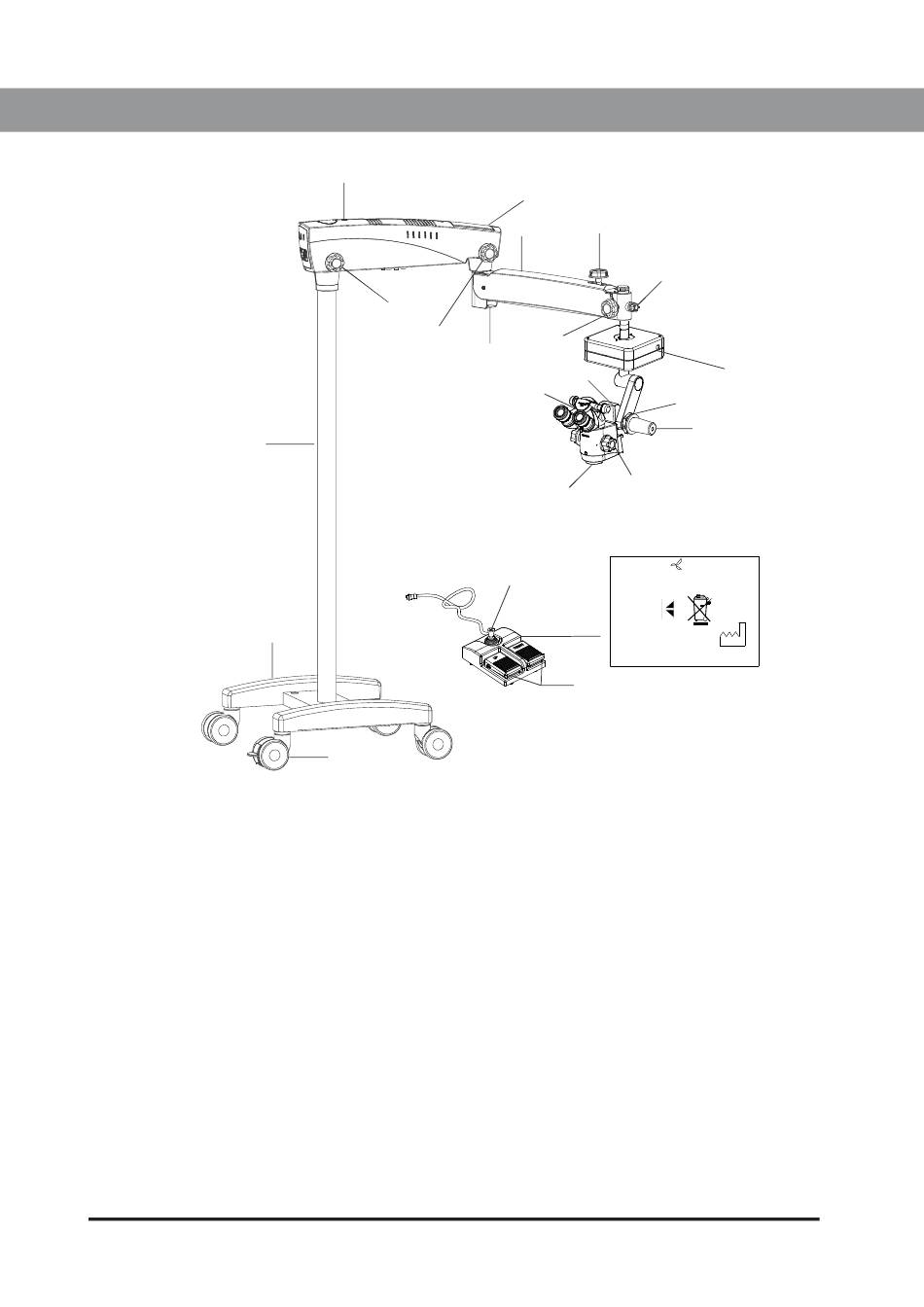

DESCRIPTION OF PARTS

3
1. Wheel with brake
3. Column
5. Suspension Arm
7. Suspension arm movement locking knob
9. Suspension arm hydraulic movement lock
11. Swivel arm cover
13. Magnichanger
15. Common Main Objective
17. Z- axis
19. Foot paddles for Z-axis
6135000-795
11
6
7
2
1
4
9
5
8
10
17
12
15
18 LABOMED
Part # ..................
LABO AMERICA, INC.
920, Auburn Court
Fremont CA 94538
USA
www.laboamerica.com
19
Fig. 1
2. Metal base
4. Swivel Arm
6. Swivel arm locking knob
8. Coupling movement locking knob
10. Suspension arm spring tension adjustment
12. Binocular head with eyepieces
14. Handle
16. Illumination Control Knob
18. Joystick for XY Movement
20. XY Coupling
21. Tilt Control & Lock knob
