Prima OPH
MICROSCOPE INSTALLATION (continued)

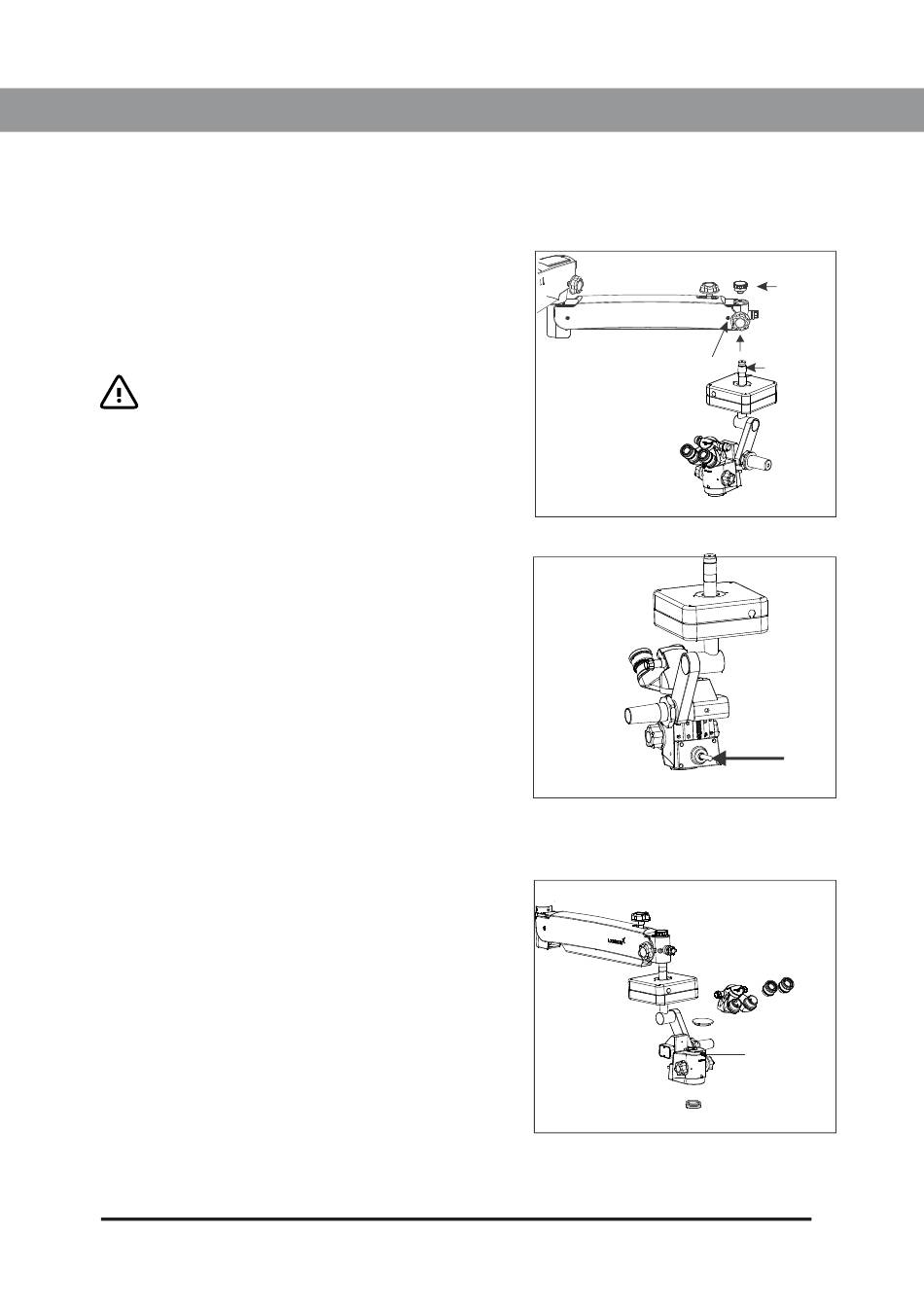

Retrieve the XY or Z-axis coupling assembly (as
ordered) from the packing and follow as below
refer Fig.5.
3
• Install the coupling to the suspension arm by
sliding the guiding shaft (1) to the suspension arm.
• Lock the inclined coupling with the thread plug(3).
2
1
Make sure that safety screw must tight in place
at position (2) to avoid sudden falling of the
coupling. Safety screw tagged within the arm.
Mounting the light guide
• Switch off the illumination system
Fig. 5
• The light guide comes pre-routed through swivel
arm (that houses the LED illumination system)
and the suspension arm.
• Insert the light guide into the receptacle in the
microscope till it clicks into position as shown as
A in fig.6
• Make sure that the light guide has been routed in
such a way that the carrier system and the
surgical microscope are not obstructed, and that
they can be moved in their entire range of
movement without stretching, extreme, kinking or
A
Twisting of the light guide.
Install the binocular head and eyepieces on the
Fig. 6
magni-changer. Secure the binocular head with
head locking screw shown as (A) in figure 6a.
A
Fig. 6 a
17
Issue 1.6
6135000-795
Printed on: July, 2020
