MICROSCOPE INSTALLATION

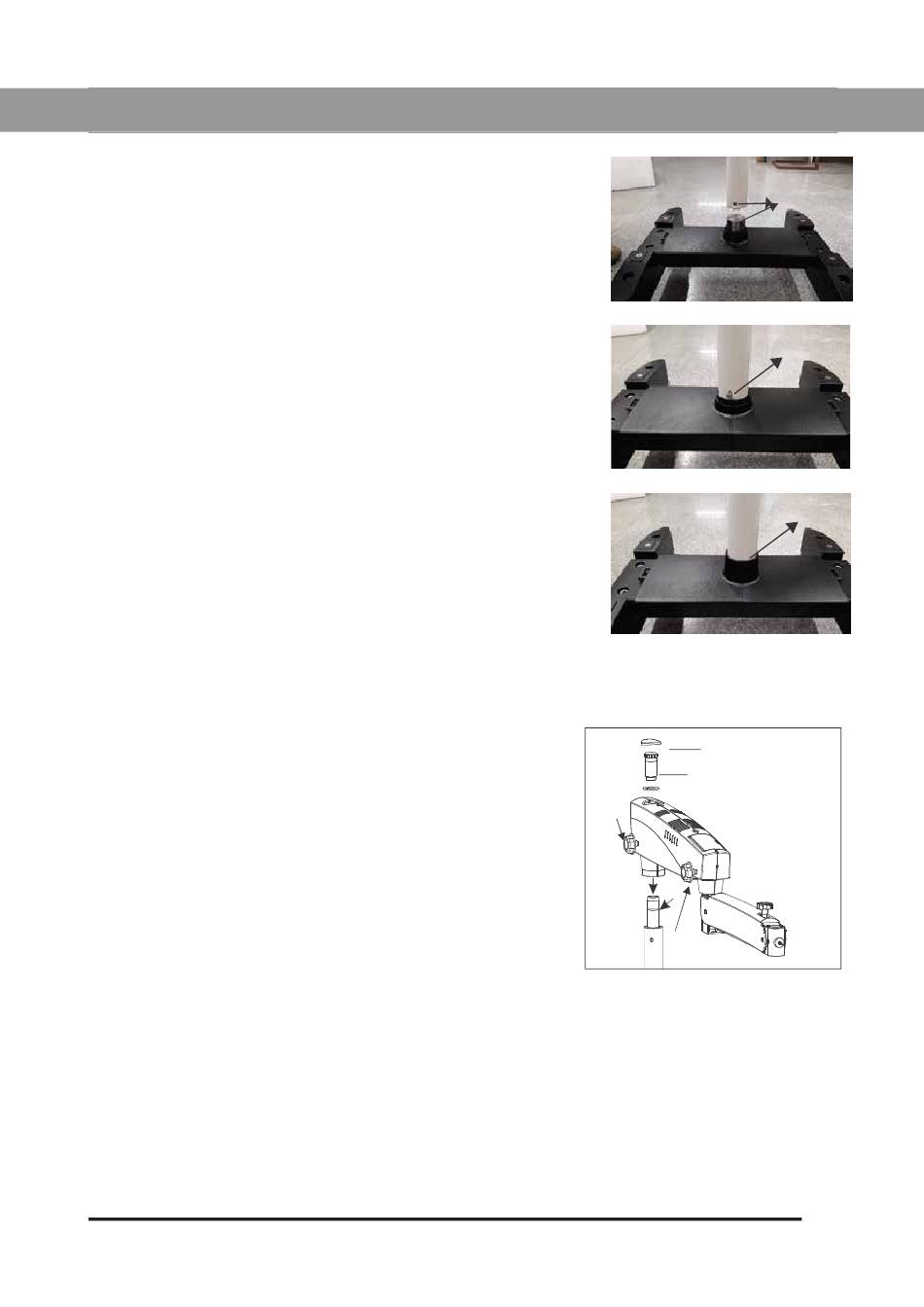

1. Open the microscope box. Remove column from the
box. Engage this column onto the shaft by aligning
three guide holes on column and shaft, shown as B
in fig.-13.
2. Tighten three allen screws from the sides, shown as C
in fig.- 14.
3. Make sure that during assembly of the column, ring
(D) is fixed in place, as shown in fig.-15.
Retrieve the swivel arm and suspension arm
assembly from the packing box and follow Instruction
as below (refer fig.-3)
Ensure Loosening of swivel arm lock knob (A).
Install the swivel arm assembly on the upright holding
shaft (1) fig.-3.
Lock the swivel arm with threaded plug (2) from top.
Put protective cap (3) in place and loosen suspension
arm locking B knobs so that it can be rotated.
6135000-795
A
PRIMA OPH
Prima OPH
B
Fig 13
C
Fig 14
D
Fig 15
3
2
1
B
Fig.3
