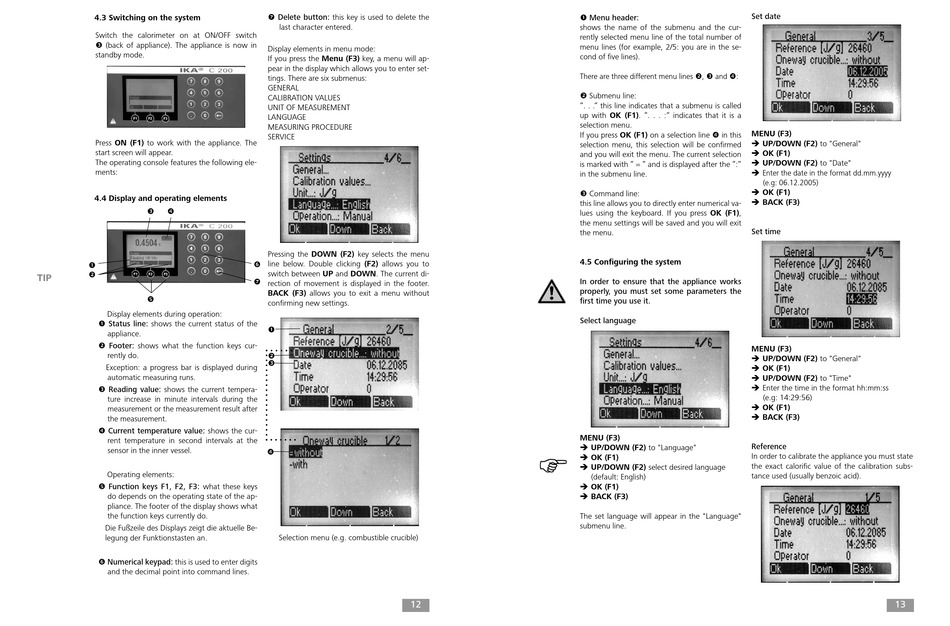

4.3 Switching on the system
Switch the calorimeter on at ON/OFF switch
 (back of appliance). The appliance is now in
standby mode.
Press ON (F1) to work with the appliance. The
start screen will appear.
The operating console features the following ele-
ments:

4.4 Display and operating elements

 


TIP

Display elements during operation:
 Status line: shows the current status of the
appliance.
 Footer: shows what the function keys cur-
rently do.
Exception: a progress bar is displayed during
automatic measuring runs.
 Reading value: shows the current tempera-
ture increase in minute intervals during the
measurement or the measurement result after
the measurement.
 Current temperature value: shows the cur-
rent temperature in second intervals at the
sensor in the inner vessel.
Operating elements:
 Function keys F1, F2, F3: what these keys
do depends on the operating state of the ap-
pliance. The footer of the display shows what
the function keys currently do.
Die Fußzeile des Displays zeigt die aktuelle Be-
legung der Funktionstasten an.
 Numerical keypad: this is used to enter digits
and the decimal point into command lines.
 Delete button: this key is used to delete the
last character entered.
Display elements in menu mode:
If you press the Menu (F3) key, a menu will ap-
pear in the display which allows you to enter set-
tings. There are six submenus:
GENERAL
CALIBRATION VALUES
UNIT OF MEASUREMENT
LANGUAGE
MEASURING PROCEDURE
SERVICE
Pressing the DOWN (F2) key selects the menu
 line below. Double clicking (F2) allows you to
switch between UP and DOWN. The current di-

rection of movement is displayed in the footer.
BACK (F3) allows you to exit a menu without
confirming new settings.




Selection menu (e.g. combustible crucible)
12
Set date
 Menu header:
shows the name of the submenu and the cur-
rently selected menu line of the total number of
menu lines (for example, 2/5: you are in the se-
cond of five lines).
There are three different menu lines ,  and :
 Submenu line:
". . ." this line indicates that a submenu is called
up with OK (F1). ". . . :" indicates that it is a
selection menu.
MENU (F3)
If you press OK (F1) on a selection line  in this
 UP/DOWN (F2) to "General"
selection menu, this selection will be confirmed
 OK (F1)
and you will exit the menu. The current selection
 UP/DOWN (F2) to "Date"
is marked with " = " and is displayed after the ":"
 Enter the date in the format dd.mm.yyyy
in the submenu line.
 OK (F1)
 Command line:
 BACK (F3)
this line allows you to directly enter numerical va-
lues using the keyboard. If you press OK (F1),
the menu settings will be saved and you will exit
Set time
the menu.

4.5 Configuring the system

In order to ensure that the appliance works
properly, you must set some parameters the
first time you use it.
Select language
MENU (F3)
 UP/DOWN (F2) to "General"
 OK (F1)
 UP/DOWN (F2) to "Time"
 Enter the time in the format hh:mm:ss
 OK (F1)
 BACK (F3)
MENU (F3)
Reference
 UP/DOWN (F2) to "Language"
In order to calibrate the appliance you must state
 OK (F1)
the exact calorific value of the calibration subs-
 UP/DOWN (F2) select desired language
tance used (usually benzoic acid).
(default: English)
 OK (F1)
 BACK (F3)
The set language will appear in the "Language"
submenu line.
(e.g: 06.12.2005)
(e.g: 14:29:56)
