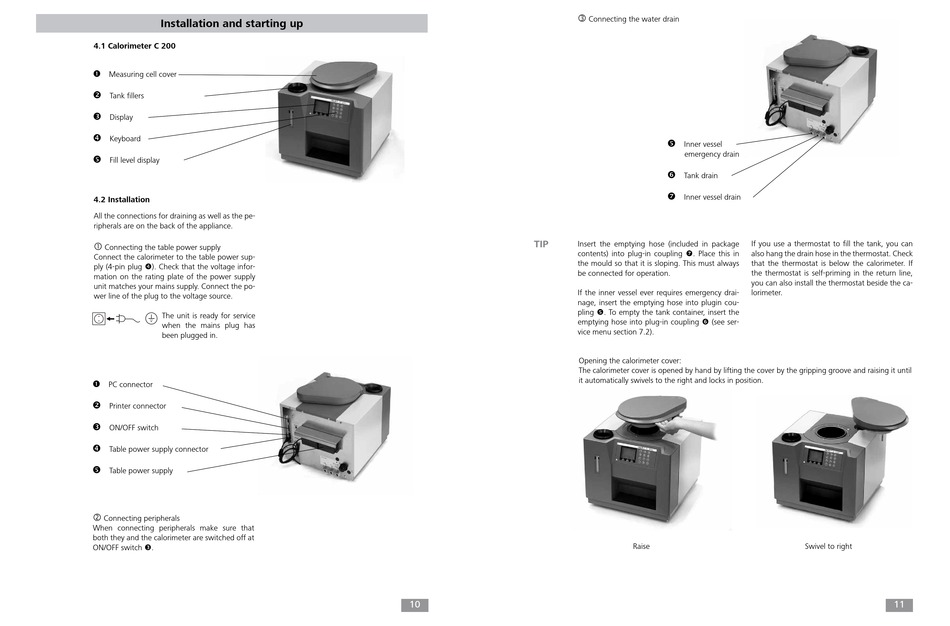

Installation and starting up

4.1 Calorimeter C 200


Measuring cell cover

Tank fillers

Display

Keyboard

Fill level display

4.2 Installation

All the connections for draining as well as the pe-
ripherals are on the back of the appliance.

Connecting the table power supply
Connect the calorimeter to the table power sup-
ply (4-pin plug ). Check that the voltage infor-
mation on the rating plate of the power supply
unit matches your mains supply. Connect the po-
wer line of the plug to the voltage source.
The unit is ready for service
when the mains plug has
been plugged in.
 PC connector

Printer connector

ON/OFF switch

Table power supply connector

Table power supply

Connecting peripherals
When connecting peripherals make sure that
both they and the calorimeter are switched off at
ON/OFF switch .

Connecting the water drain
TIP
Insert the emptying hose (included in package
contents) into plug-in coupling . Place this in
the mould so that it is sloping. This must always
be connected for operation.
If the inner vessel ever requires emergency drai-
nage, insert the emptying hose into plugin cou-
pling . To empty the tank container, insert the
emptying hose into plug-in coupling  (see ser-
vice menu section 7.2).
Opening the calorimeter cover:
The calorimeter cover is opened by hand by lifting the cover by the gripping groove and raising it until
it automatically swivels to the right and locks in position.
10

Inner vessel
emergency drain

Tank drain

Inner vessel drain
If you use a thermostat to fill the tank, you can
also hang the drain hose in the thermostat. Check
that the thermostat is below the calorimeter. If
the thermostat is self-priming in the return line,
you can also install the thermostat beside the ca-
lorimeter.
Raise Swivel to right
11
