Chapter 8: Hardware Installation for Synchronous Mirroring
The following figure shows the connection that is described in step 4 and step 5.

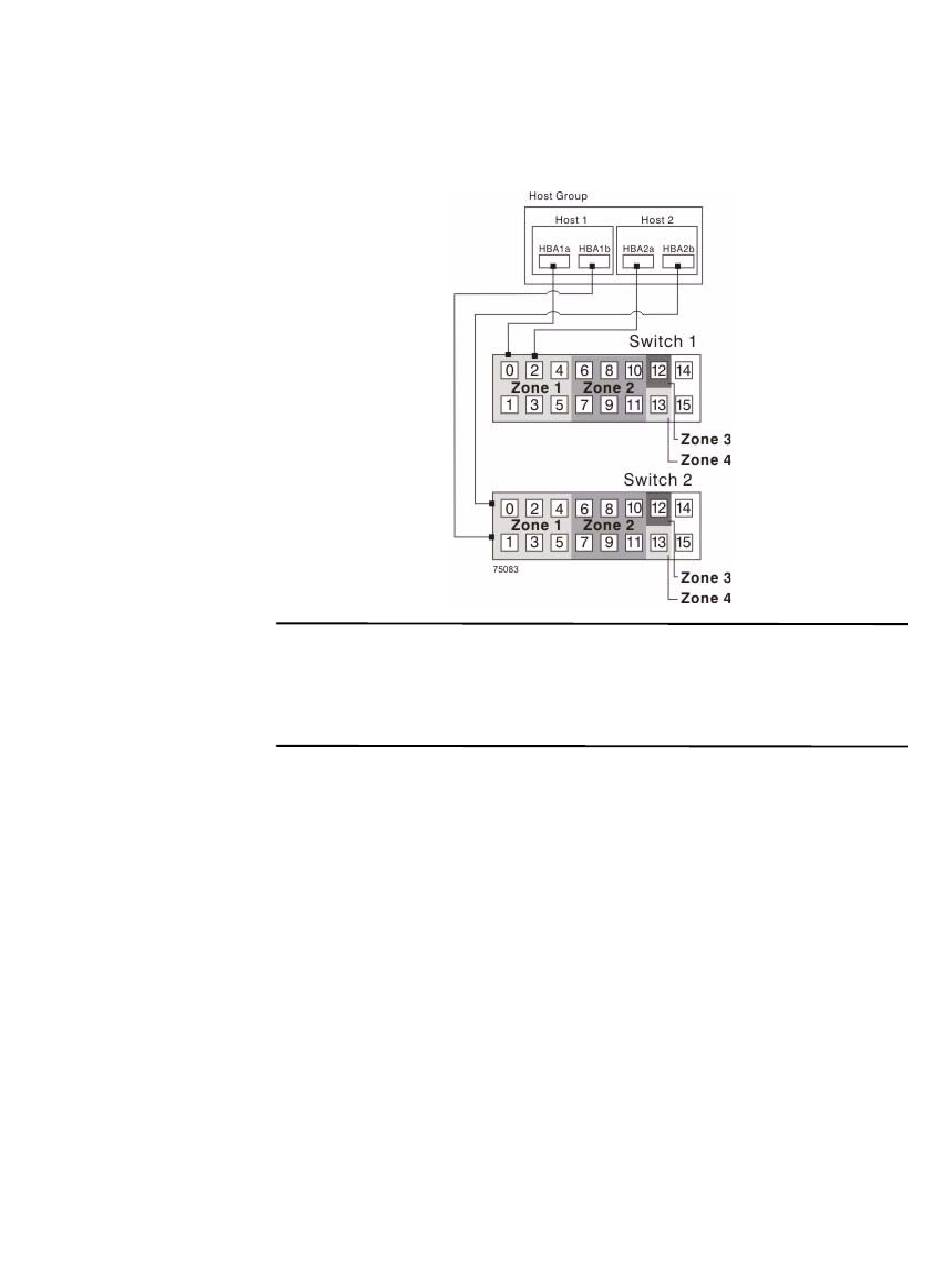

Figure 4 Host Bus Adapter Connections to Fibre Channel Switches
NOTE You can connect the cables to any port in the correct zone of the switch for all
of the controller trays except the CE6998 controller tray. Host port 4 on each controller
of the CE6998 controller trays is reserved for using the Synchronous Mirroring
premium feature. If you are not using the Synchronous Mirroring premium feature,
host port 4 on a CE6998 controller tray is available for host connections.
5.
Connect the secondary host bus adapter for each host at this site to an available
port in zone 1 of switch 2.
6.
Connect controller port A1 of the storage array to an available port in zone 1 of
switch 1.
The figure following step 9 shows the conneciton for CE6998 controller trays.
7.
Connect controller port B1 of the storage array to an available port in zone 1 of
switch 2.
8.
Connect controller port A2 of the storage array to an available port in zone 2 of
switch 1. In a four-host-port system, connect controller port A4 to an available
port in zone 2 of switch 1.
199
