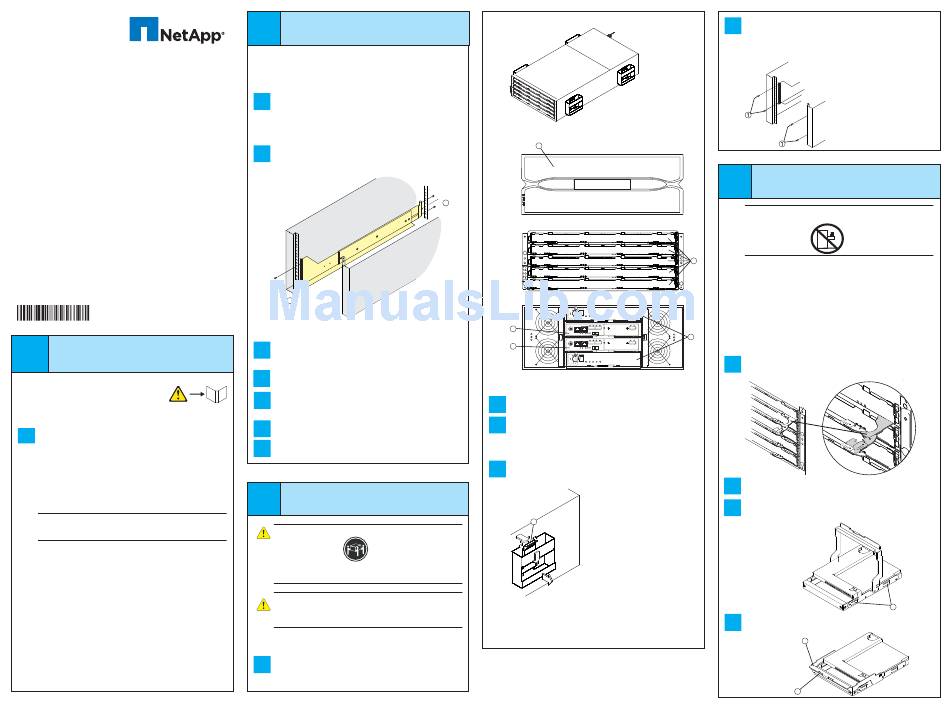

Storage System
Quick Install Guide
for the DE6600 Drive Tray
52998- 00A
1

Before you begin

For warnings, refer to the printed Safety Notices
document.
For detailed installation instructions, refer to E2600 Controller-Drive
Installation Guide.
What you need for assembly:
1.1
DE6600 drive tray (for connection to
an E2660 controller-drive tray):
One four-unit (4U) -high DE6600 drive tray
One cabinet-mounting hardware kit
Options:
Drives (four minimum for each drive drawer or 20 minimum for
the drive tray)
ATTENTION Possible equipment damage – Because of the weight
of the entire array, the drives cannot ship installed in either a single
DE6600 drive tray or a cabinet.
One rail-mounting hardware kit
If you have any questions about the fi rmware or your confi guration,
contact your Customer and Technical Support representative.
Tools:
An Internet connection
A medium fl at-blade screwdriver
A No. 2 Phillips screwdriver
Anti-static protection
Labels – To help you to identify cable connections and to trace
cables more easily
A cart – To hold the drive tray and its components
A fl ashlight
2
Install the mounting rails
You can install the drive tray into an industry-standard cabinet.
There must be a minimum depth of 76 cm (30 in.) between the front
EIA support rails and the rear EIA support rails.
Position the mounting rails in the cabinet.
2.1
If you are installing the mounting rails above an existing tray,
position the mounting rails directly above the tray.
If you are installing the mounting rails below an existing tray,
allow 17.8-cm (7-in.) vertical clearance for the DE6600 drive tray.
From the front of the cabinet with the mounting-rail fl anges inside of
2.2
the cabinet's mounting rail assemblies, place the mounting rail inside
the cabinet, and extend the mounting rail until the fl anges on the
mounting rail touch the inside of the cabinet.
1
1. Two M5 Screws for the Front EIA Support Rail
2. Two M4 Screws for the Rear EIA Support Rail
From the rear of the cabinet, use the Phillips screwdriver to loosely
2.3
tighten the two screws. Do not completely tighten the screws until you
have installed the DE6600 drive tray in the cabinet.
Insert one M5 screw through the front of the cabinet, and screw it into
2.4
the top captured nut in the mounting rail.
Insert two M4 screws through the rear of the cabinet, and screw them
2.5
into the captured nuts in the rear fl ange in the mounting rail, and
tighten the adjustment screws on the mounting rail.
Repeat step 2.3 through step 2.5 to install the second mounting rail.
2.6
Insert one M5 screw through the front of the mounting rail. This screw
2.7
will attach the DE6600 drive tray to the cabinet.
3
Install the drive tray
WARNING (W09) Risk of bodily injury –
>35 kg (77 lbs)
Three persons are required to safely lift the component.
WARNING (W08) Risk of bodily injury – An empty tray weighs
approximately 56.7 kg (125 lb). Three persons are required to safely
move an empty tray. If the tray is populated with components, a
mechanized lift is required to safely move the tray.
NOTE Make sure you do not install the drives in the drive tray until you
have moved it into the cabinet.
With the help of at least two other persons, remove the DE6600 drive
3.1
tray and all of the contents from the shipping carton, using the four
drive tray handles as shown.
DE6600 Drive Tray with Drive Handles
DE6600 Drive Tray – Front and Rear View
1
2
!
1. Front Bezel
!
2. Drive Drawers (Front Bezel Removed)
4
8 8
5
8 8
3. Power Supply
4. ESM A
5. ESM B
Remove the front bezel by grasping the sides and pulling the bezel
3.2
toward you. Set it aside.
With the help of a mechanized lift or at least two other persons,
3.3
place the rear of the DE6600 drive tray on the mounting rails. Slide
the DE6600 drive tray into the cabinet, and verify that the rear of the
DE6600 drive tray is secured by the hold-down clips at the rear of each
mounting rail.
After the DE6600 drive tray is correctly aligned, use your thumb to
3.4
unlatch the four drive tray handles (two to a side), and remove the drive
tray handles from the DE6600 drive tray, from the rear to the front.
1
2
3
4
1. Thumb Latch
2. Pull the thumb latch away from the drive tray to detach the hook.
3. Shift the drive tray handle down to release the other four hooks.
4. Move the drive tray handle away from the drive tray.
Secure the side of the DE6600 drive tray to the cabinet. Use the four
3.5
10-32 screws to attach the fl ange on each side of the DE6600 drive
tray to the mounting rails.
NOTE Make sure that each drive drawer in the DE6600 drive tray is
securely fastened to ensure correct air fl ow to the drives.
4

Install the drives

WARNING (W 18) Risk of bodily injury – Do not use equipment in
the cabinet as a shelf or work space.
2
IMPORTANT: The installation order within each drawer is from left-to-
right in each row. You must install a drive in slots 1, 4, 7, and 10. Make
sure that the four drives in each row are adjacent to each other. The
long edge of each dirive should touch the drive next to it. To maintain
a uniform airfl ow across all drawers, the drive tray must be confi gured
with a minimum of four drives in the front of each row in the drive
drawer.
!
3
NOTE: The drive drawers ship installed in the DE6600 drive tray, but
!
the drives ship separately from the drive drawers.
Starting with the top drive drawer in the DE6600 drive tray, release
4.1
the levers on each side of the drive drawer by pulling both towards the
center.
10
11
12
10
11
12
10
11
12
10
11
12
10
11
12
Pull on the extended levers to pull the drive drawer out to its full
4.2
extension without removing it from the drive tray.
Starting with the fi rst drive, raise the drive handle to the vertical
4.3
position, and align the raised buttons on each side over the matching
gap in the drive channel on the drive drawer.
1. Raised Buttons
Lower the drive straight down, and rotate the drive handle down until
4.4
the drive snaps into place under the drive release lever.
2
1. Drive Release Lever
2. Drive Handle
1
1. Four screws for securing the front of
the DE6600 drive tray.
1 0
1 1
1 2
1 0
1 1
1 2
1 0
1 1
1 2
1
