Embraer EMB145 Operation Manual page 1437

EQUIPMENT
AIRPLANE
AND FURNISHINGS
OPERATIONS
MANUAL

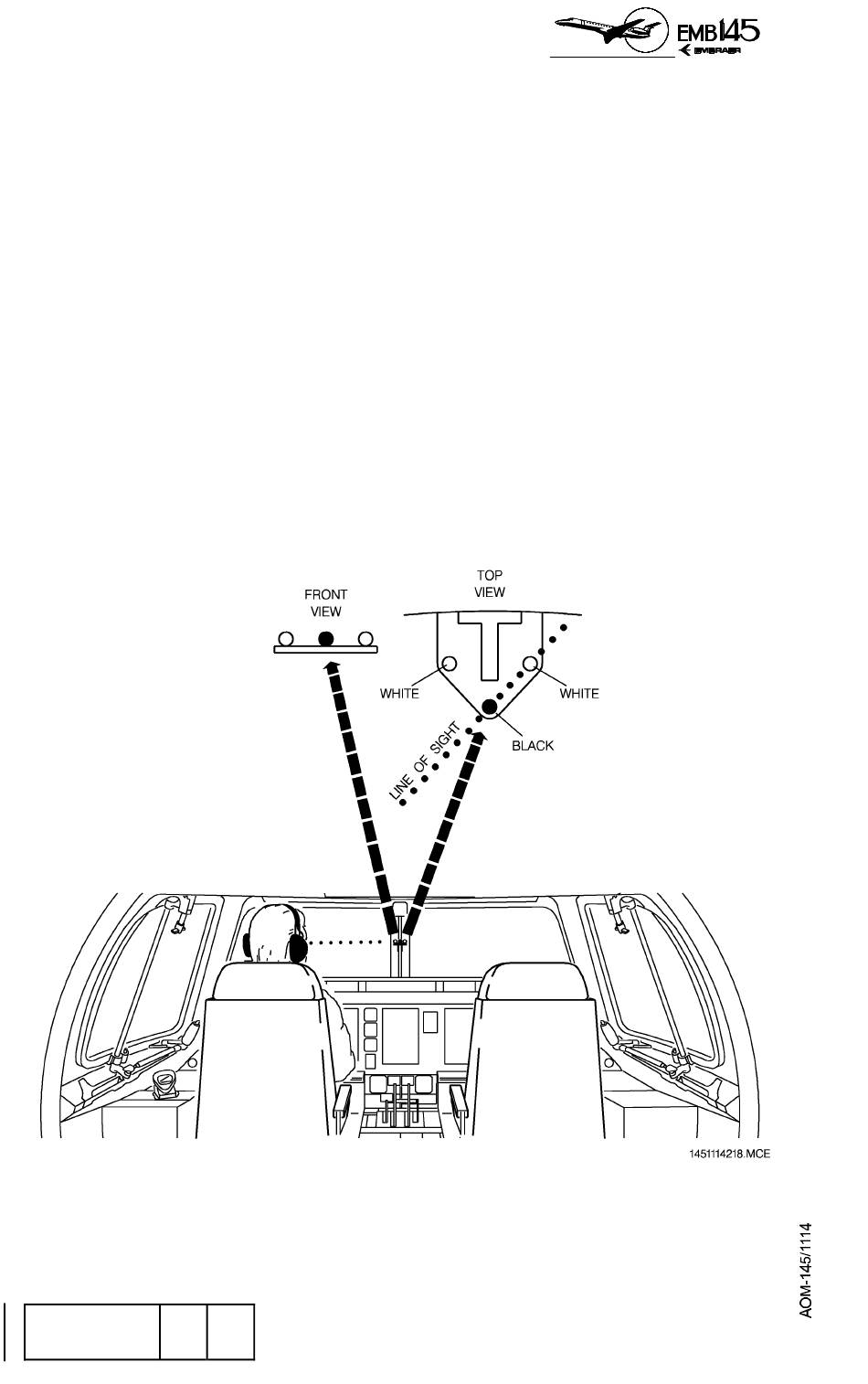

PILOT SEAT ADJUSTMENT
Seat adjustment should be accomplished to accommodate the pilot's
eye level and position best suited for control column actuation. The
seat should be moved up or down until the pilot's line of sight reaches
the same horizontal plane of a sight device made up of two white
spheres and a black sphere. Then, move the seat fore or aft until the
opposite white sphere is aligned with the black one. The seat should
not be moved anymore. To adjust the rudder pedals, refer to PEDAL
ADJUSTMENT.
Page Code
4 01
2-02-05 OCTOBER 02, 2001
