Embraer EMB145 Operation Manual page 1625

CREW
AWARENESS
PFD
1
IC−600 1:
− DECISION HEIGHT
− GLIDE SLOPE DEVIATION
− LOCALIZER DEVIATION
− COURSE
− PACKED DISCRETE
AHRS 1 / IRS 1:
− MAGNETIC HEADING
− ROLL AND PITCH ANGLE
− NORMAL AND LONGITUDINAL
ACCELERATION
ADC 1
− COMPUTED AND TRUE AIRSPEED
− ALTITUDE RATE
− CORRECTED AND UNCORRECTED
ALTITUDE
Page
2-04-30
4
AIRPLANE
OPERATIONS
MANUAL
EICAS
RADIO
ALTIMETER 1

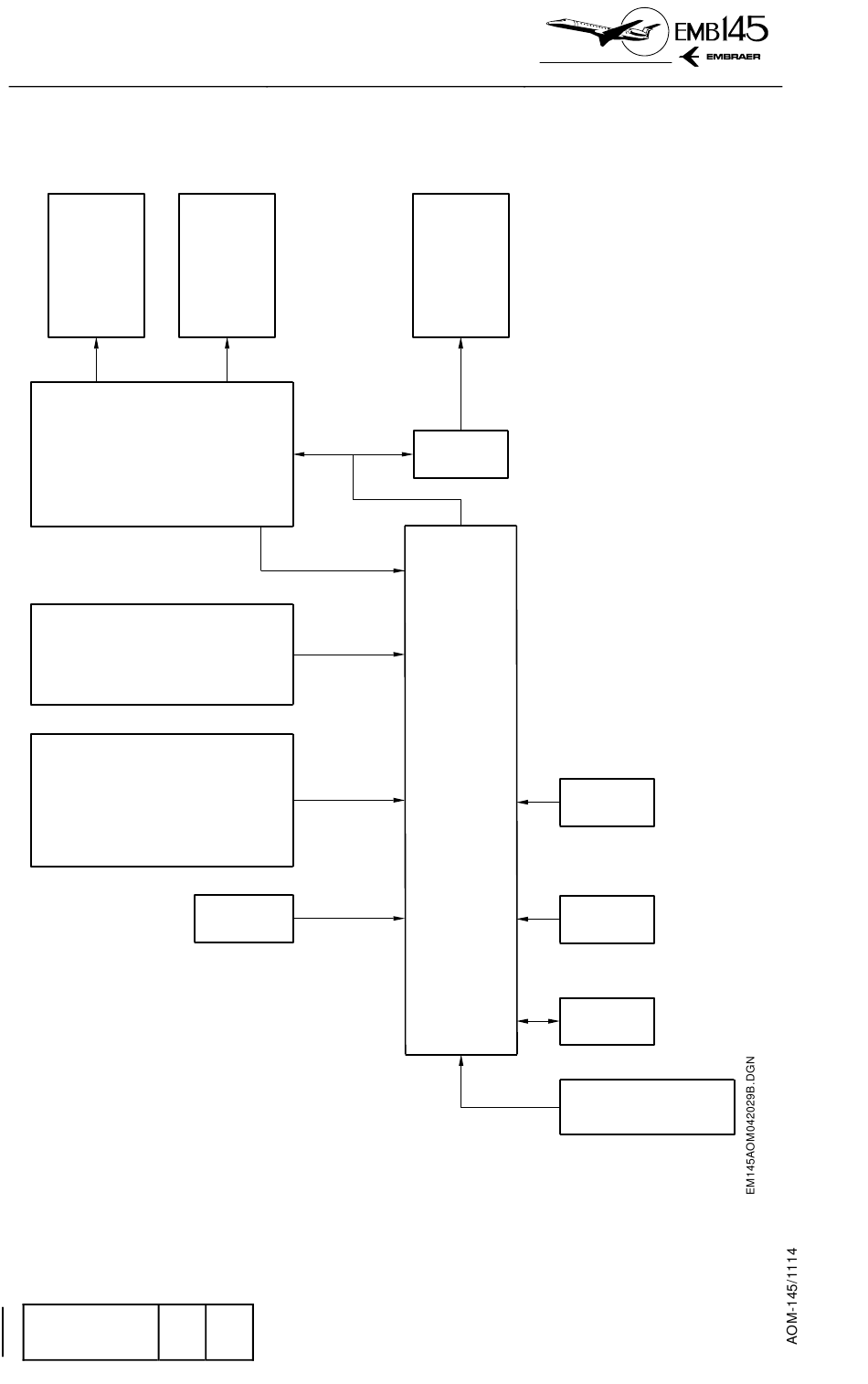

GPWS SCHEMATIC
Code
01
PFD
2
IC−600 2
FLAP
GPWS
LANDING
GEAR
AWU
(MAINTENANCE PANEL)
TEST SWITCH
REVISION 38
