Embraer EMB145 Operation Manual page 1246

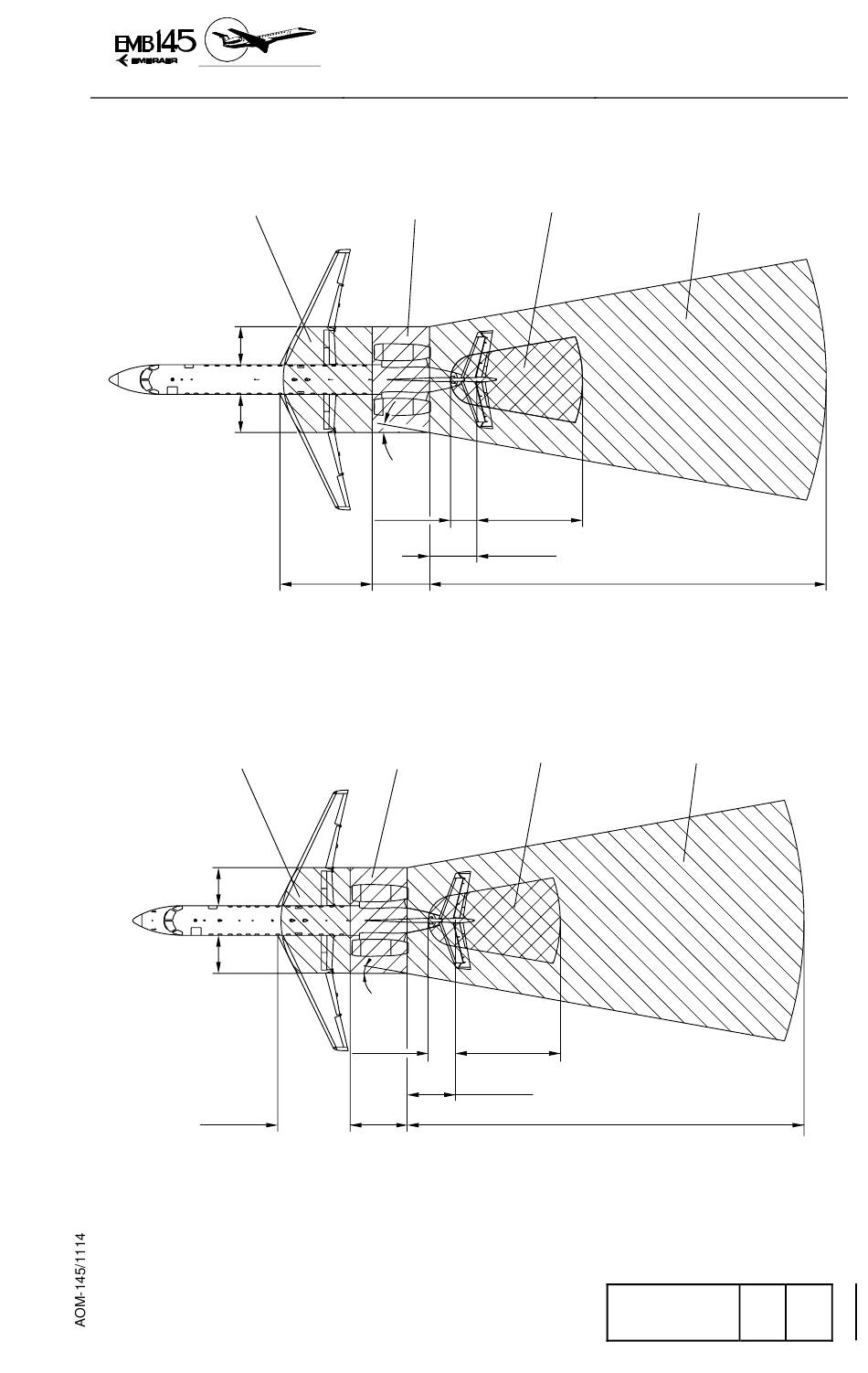

HAZARD AREAS
ENGINE INLET
INGESTION
HAZARD AREA
3 m
9 ft−10 in
3 m
9 ft−10 in
ENGINE INLET
INGESTION
HAZARD AREA
3 m
9 ft−10 in
3 m
9 ft−10 in
6 m
19 ft−8 in
(*) Access to this area is permitted just with engine running in idle
speed.
REVISION 39
AIRPLANE
OPERATIONS
MANUAL
(*) ENGINE
ACCESSORIES
CAUTION AREA
10°
2 m
6 ft−7 in
7 m
4.3 m
22 ft−12 in 14 ft−1 in
EMB−145 MODEL
(*) ENGINE
ACCESSORIES
CAUTION AREA
10°
2 m
6 ft−7 in
4.3 m
14 ft−1 in
EMB−135 MODEL
APU
HAZARD AREA
8 m
26 ft−3 in
3.6 m
11 ft−10 in
30 m
98 ft−5 in
APU
HAZARD AREA
8 m
26 ft−3 in
3.6 m
11 ft−10 in
30 m
98 ft−5 in
1-12-10
GROUND SERVICING
ENGINE EXHAUST
HAZARD AREA
ENGINE EXHAUST
HAZARD AREA
EM145AOM121006A.DGN
Page Code
11 01
