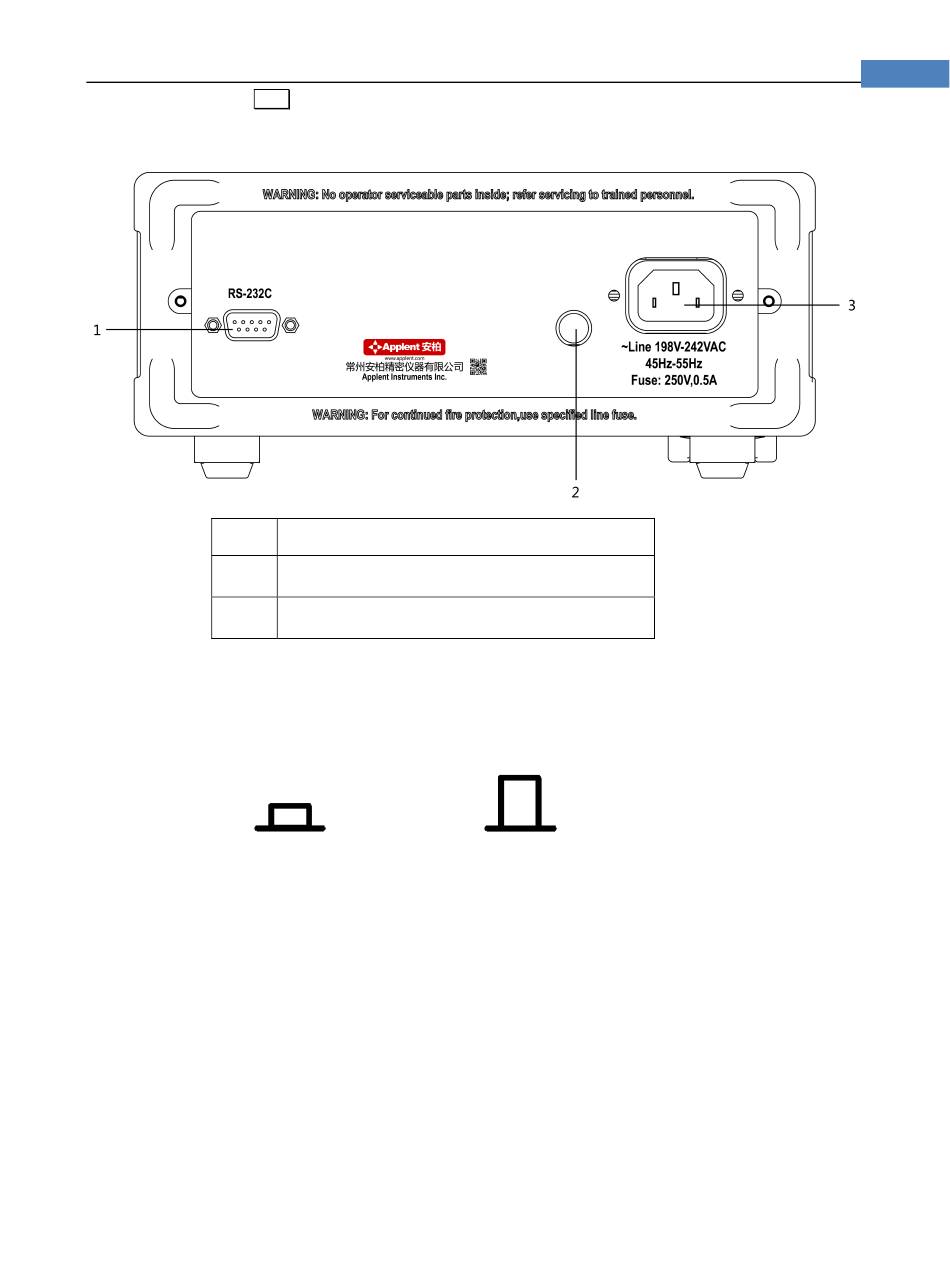

3.1.3 Rear panel description
Figure 3-2 Rear panel
1
2
3
3.2 Power ON/OFF
3.2.1 Power up
3.2.2 Warm-up time
AT2511/511C is ready to be used as soon as the power-up sequence has completed. However, to
achieve the accuracy rating, warm up the instrument for 15 minutes.
3.3 Connect to Device under Test
3.3.1 Connection of test side
Figure 3-3 Definition of test terminal pin
Perform short-circuit zero calibration.
RS232C 。
Reserved port, this version does not use.
Fuse Holder
250V，0.5A fuse
AC Power Cord Receptacle
198V~242VAC，45Hz~55Hz
Power ON
Power OFF
Start up
