3.1 Front Panel

3.1.1

Front panel description

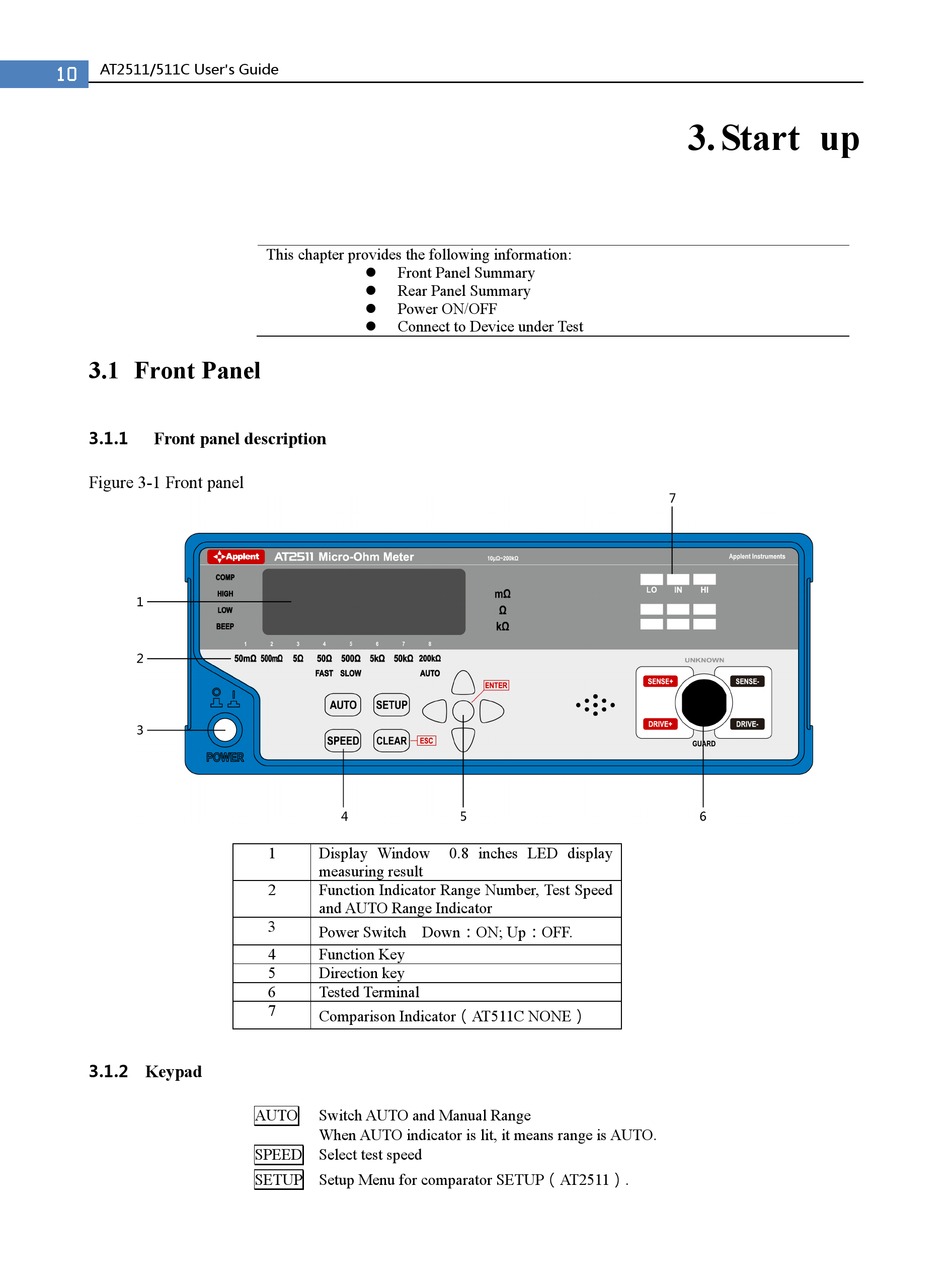

Figure 3-1 Front panel

3.1.2 Keypad

This chapter provides the following information:

Front Panel Summary

Rear Panel Summary
 Power ON/OFF

Connect to Device under Test
1 Display Window
measuring result
2 Function Indicator Range Number, Test Speed
and AUTO Range Indicator
3
Power Switch Down：ON; Up：OFF.
4 Function Key
5 Direction key
6 Tested Terminal
7
Comparison Indicator（AT511C NONE）
AUTO Switch AUTO and Manual Range
When AUTO indicator is lit, it means range is AUTO.
SPEED Select test speed
SETUP Setup Menu for comparator SETUP（AT2511）.
0.8 inches LED display
