Altronix AL1042ULADA Installation Manual page 20

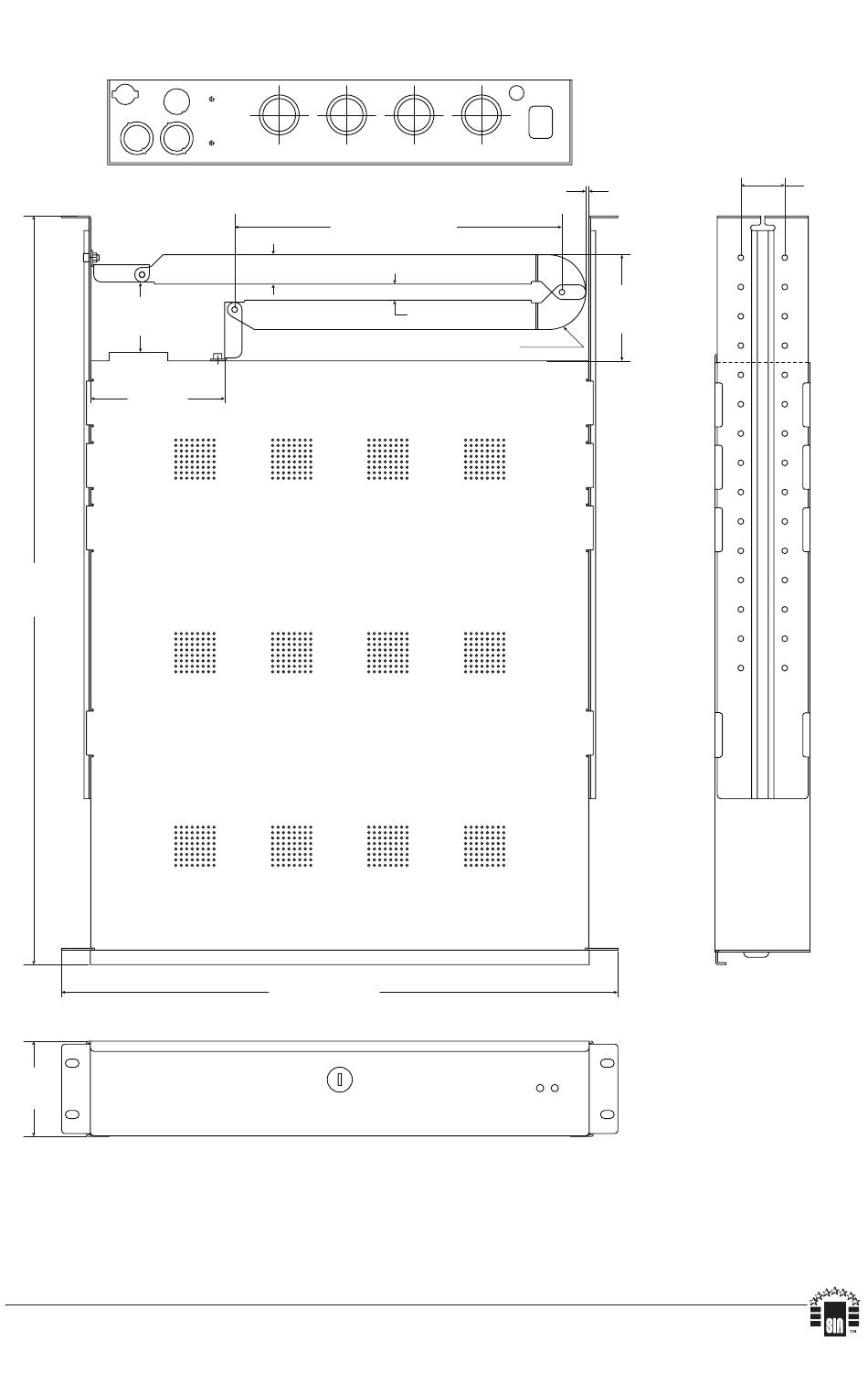

R1042ULADA Enclosure Dimensions (H x W x D):
3.375" x 19.0" x 26.5" (85.8mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.
2.4"
61mm
4.57"
116.1mm
26.5"
673.1mm
3.375"
85.8mm
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IIAL1042ULADA/R1042ULADA
- 20 -
11.175" (283.8mm)
1" (25.4mm)
0.55" (14mm)
R 1.27" (32.3mm)
19" (482.6mm)
H09U
0.1"
2.5mm
3.62"
92mm
AL1042ULADA / R1042ULADA Installation Guide
1.5"
38.1mm
