Basic Instructions to be used with Wenger Storage Cabinets only!
Contents
Required Tools 2
Fasteners 2
Visit the Storage Products web page at wengercorp.com for more information.
Note: Please read and understand these instructions before assembling.
Note: Two or more people are recommended to work together during assembly.
Note: If you need additional information, contact Wenger Corporation using the information below.
©Wenger Corporation 2020
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: (800) 4WENGER (493-6437) • Worldwide: +1-507-455-4100 • wengercorp.com
For more detailed product information, refer to the
Cabinet Storage Products Assembly Instructions 250B394.

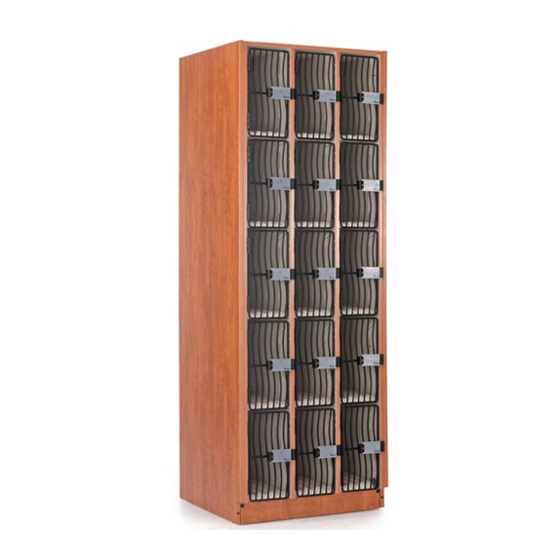

UltraStor
®
for Cabinet Storage Products
AcoustiCabinet
Assembly for UltraStor Cabinets 3
Assembly for AcoustiCabinets 7
Printed in USA 2020-11
Assembly Instructions
Finished Back Kit
®
Part #250B093-02
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wenger UltraStor
Summary of Contents for Wenger UltraStor
- Page 1 Required Tools 2 Assembly for UltraStor Cabinets 3...
- Page 2 Required Tools The following tools are required for assembly. • Cordless drill • 5/32" hex key or insert bit • Phillips head screwdriver or bit • Non-marring clamps (if not using two people) • 5/32" drill bits (included) • Tape measure - 3-3/4" (95 mm) long - 6" (154 mm) long Fasteners The fasteners shown below are contained in the hardware kits. Any fasteners remaining when an the installation is complete can be discarded. #10-16 x 1-1/2" Pan Head Screw 7 x 50 mm 1/4-20 x 1.38" Hex Socket Screw Machine Screw 8 x 25 mm #12 x 3-1/2"...
- Page 3 Assembly for Ultrastor Cabinets This procedure is for assembling the finished back kit onto Ultrastor cabinets only. STOP For assembly onto AcoustiCabinets, go to page 7. Before Attaching The finished back kit should be attached to upright standing cabinets using at least two people. The cabinets should already be leveled in their final location anchored and connected with any end cover panels attached as detailed in the Cabinet Storage Products Assembly Instructions 250B394. To help prevent scratching and mixing-up panels, leave the finished back panels in the STOP packaging until they are ready to be installed.
- Page 4 Assembly for Ultrastor Cabinets (continued) Assembly (continued) Finished back panels will match both the width of the cabinet and the filler strips between them. Wider "end" finished back panels will overhang the back edge of the cabinet and end covers at each end of the row. The outside edges of the finished back panels are indicated by a hole near the edge at the top and bottom of the panel as shown. The labeling on the packaging will also indicate intended panel locations. Filler Finished back panel edge Finished back panel edge Strip will overhang the edge of will overhang the edge of the cabinet and end cover the cabinet and end cover...
- Page 5 Assembly for Ultrastor Cabinets (continued) Assembly (continued) 2. Set the finished back panel into position at the back of the cabinet. a. Locate the top edge of the panel to be flush with the top edge of the cabinet. b. Locate the pilot holes in the sides of the panel to be centered over both cabinet side panels (not any end cover panels) 3. Use clamps or at least two people to hold the finished back panel into position for the remaining assembly procedure. Cabinet Cabinet Side Panel Side Panel Finished Back Panel Center pilot holes over side panels...
- Page 6 Assembly for Ultrastor Cabinets (continued) Assembly (continued) 4. Use the included 5/32" x 3-3/4" (95 mm) drill bit 5. Attach the finished back panel to the sides and to drill 2" (51 mm) deep holes straight into the top of the cabinet using 7 x 50 mm hex socket side and top panels of the cabinet through the screws (1). existing pilot holes in the finished back panel. Be sure to use the correct fastener as STOP shown on page 2. Be sure to use the 3-3/4" (95 mm) long STOP drill bit.
- Page 7 Assembly for AcoustiCabinets This procedure is for assembling the finished back kit onto AcoustiCabinets only. STOP For assembly onto UltraStor Cabinets, go to page 3. Before Attaching The finished back kit should be attached to upright standing cabinets using at least two people. The cabinets should already be leveled in their final location anchored and connected with any end cover panels attached as detailed in the Cabinet Storage Products Assembly Instructions 250B394. To help prevent scratching and mixing-up panels, leave the finished back panels in the STOP packaging until they are ready to be installed.
- Page 8 Assembly for AcoustiCabinets (continued) Assembly (continued) 2. To assemble the extension frame, lay the frame pieces out as shown. Be sure that all of the insert nuts are facing up as shown. STOP 3. Attach the both ends of the top and middle/bottom panels to the side panels using two #10-16 x 1-1/2" pan head screws (3) and one 8 x 25 mm wood dowel (4). Panel 8 x 25 mm Wood Dowel #10-16 x 1-1/2" Pan Head Screws Side Panels (same) Middle/Bottom Panels (same)
- Page 9 Assembly for AcoustiCabinets (continued) Assembly (continued) 4. Set the assembled extension frame into position at the back of the cabinet. a. Fit the extension frame over the sound absorptive material pads and to be flush with the cabinet panels. b. Locate the top edge of the top panel to be flush with the top edge of the cabinet. c. Locate the pilot holes in the sides of the extension frame to be centered over both cabinet side panels (not any end cover panels) 5. Use clamps or at least two people to hold the extension frame into position for the remaining assembly procedure. Cabinet Cabinet Side Panel Side Panel Center pilot holes over side panels Assembled Extension Frame Fastener Fastener (to be installed later)
- Page 10 Assembly for AcoustiCabinets (continued) Assembly (continued) 6. Use the included 5/32" x 6" (154 mm) drill bit to 7 Attach the extension frame to the sides and top drill 3-1/2" (89 mm) deep holes straight into the of the cabinet using #12 x 3-1/2" wood screws side and top panels of the cabinet through the (5). existing pilot holes in the finished back panel. Be sure to use the 6" (154 mm) long STOP drill bit. Be sure that the new holes are parallel with the existing holes. Do not drill through the sides or top of the cabinet! #12 x 3-1/2"...
- Page 11 Assembly for AcoustiCabinets (continued) Assembly (continued) Finished back panels will match both the width of the cabinet and the filler strips between them. Wider "end" finished back panels will overhang the back edge of the cabinet and end covers at each end of the row. The outside edges of the finished back panels are indicated by a hole near the edge at the top and bottom of the panel as shown. The labeling on the packaging will also indicate intended panel locations. Finished back panel edge Finished back panel edge will overhang the edge will overhang the edge of the cabinet and of the cabinet and Filler end cover end cover Strip Finished Finished...
- Page 12 Assembly for AcoustiCabinets (continued) Assembly (continued) 9. Use the included 3-3/4" (95 mm) x 5/32" drill bit to drill 2-1/2" (64 mm) deep holes straight into the 8. Attach the finished back panel to the sides of the top panel of the extension kit through the existing cabinet using 1/4-20 x 1.38" machine screws (2). pilot holes in the finished back panel. Be sure to use the correct fastener as Be sure to use the 3-3/4" (95 mm) long STOP shown on page 2. STOP drill bit.
