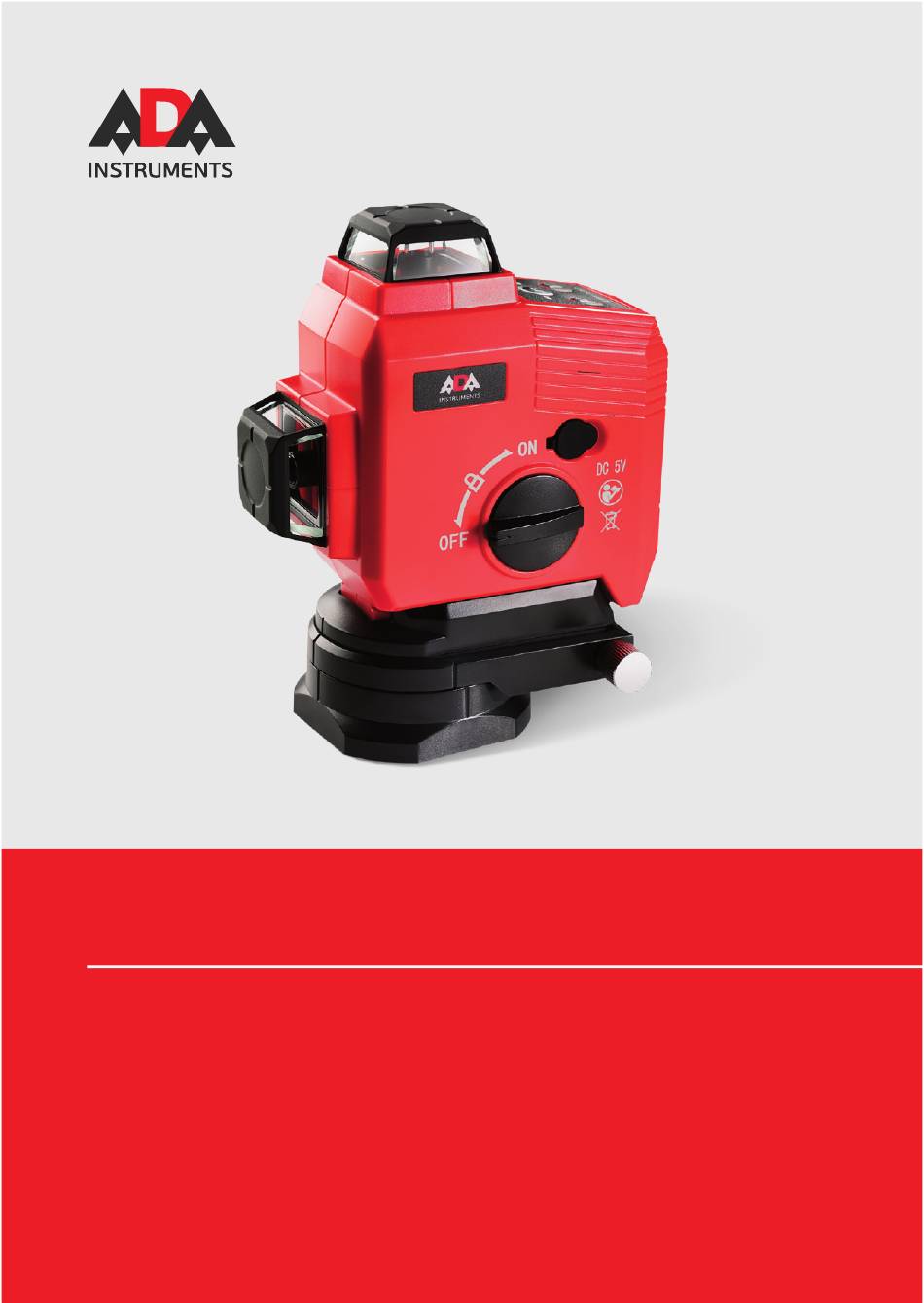

- Page 1 OPERATING MANUAL TOPLINER 3-360 Line Laser adainstruments.com...
- Page 2 English Ceiling Cross Horizontal Line Cross Down Cross 5. APPLICATION 6. SAFETY PRECAUTION near emitter.
-
Page 3: Specifications
SET WITHOUT GIVING PRIOR WARNING. APPLICATION Line laser ADA TOPLINER 3-360 is designed to check the horizontal and vertical position of the surfaces of the elements of building structures and also to transfer the angle of inclination of the structural part to similar parts during construction and installation works. -
Page 4: Insert The Battery
English FEATURES 1. Keypad 2. Jack for charger 3. Battery compartment 4. Rotating base 5. Lock switch (ON/X/OFF) 6. Vertical laser window 7. Horizontal laser window KEYPAD 1. Tilt LED. Indicator lights up in the intermediate position of the compensator lock. 2. -
Page 5: Lock Switch
English MOUNTING THREAD It is possible to place the line laser on the tripod or wall mount during operation. For attachement use thread 1/4” at the bottom part of the instrument or thread 5/8” at the bootom part of the rotating base. LOCK SWITCH Lock switch has tree positions: 1. -
Page 6: Detector Mode
English DETECTOR MODE Use the detector mode in bright light when laser beam is not visible. Press button to switch on the dector mode. Upper LED flashes. Place the detector to the the place of beam location. Follow the instruction of detector usage when searching the beam. -
Page 7: To Check Plumb
English TO CHECK THE ACCURACY OF LINE LASER (SLOPE OF PLANE) Place line laser on the tripod 5m away from the wall so the horizontal laser line will be directed to the wall. Switch on the power. The line laser starts to self-level. - Page 8 English SPECIFIC REASONS FOR ERRONEOUS MEASURING RESULTS • Measurements through glass or plastic windows; • Dirty laser emitting window; • After line laser has been dropped or hit. Please check the accuracy; • Large fluctuation of temperature: if instrument will beused in cold areas after it has been stored in warm areas (or the other way round) please wait some minutes before carrying out measurements.
-
Page 9: Warranty
English • Do not open instrument housing. Repairs should be carried out by autho- rized workshops only. Please contact your local dealer. • Do not remove warning labels or safety instructions. • Keep instrument away from children. • Do not use instrument in explosive environment. WARRANTY This product is warranted by the manufacturer to the original purchaser to be free from defects in material and workmanship under normal use for... - Page 10 product. The manufacturer, or its representatives, assumes no responsi- bility for any damage, and loss of profits caused by usage other thsn ex- plained in the users’ manual. The manufacturer, or its representatives, assumes no responsibility for damage caused by wrong movement or action due to connecting with oth- er products.
-
Page 11: Warranty Card
WARRANTY CARD Name and model of the product __________________________________________ Serial number___________________________Date of sale______________________ Name of commercial organization ________________________________________ stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. - Page 12 ADA International Group Ltd., No.6 Building, Hanjiang West Road #128, Changzhou New District, Jiangsu, China Made In China adainstruments.com...
