  • Page 1 FZR 70335-A...
  • Page 2 English ....................................–28 Čeština .....................................29–50 Slovenčina ..................................51–72 Magyarul ..................................73–94 Polski ....................................95–116 FZR 70335-A FZR 70335-A...

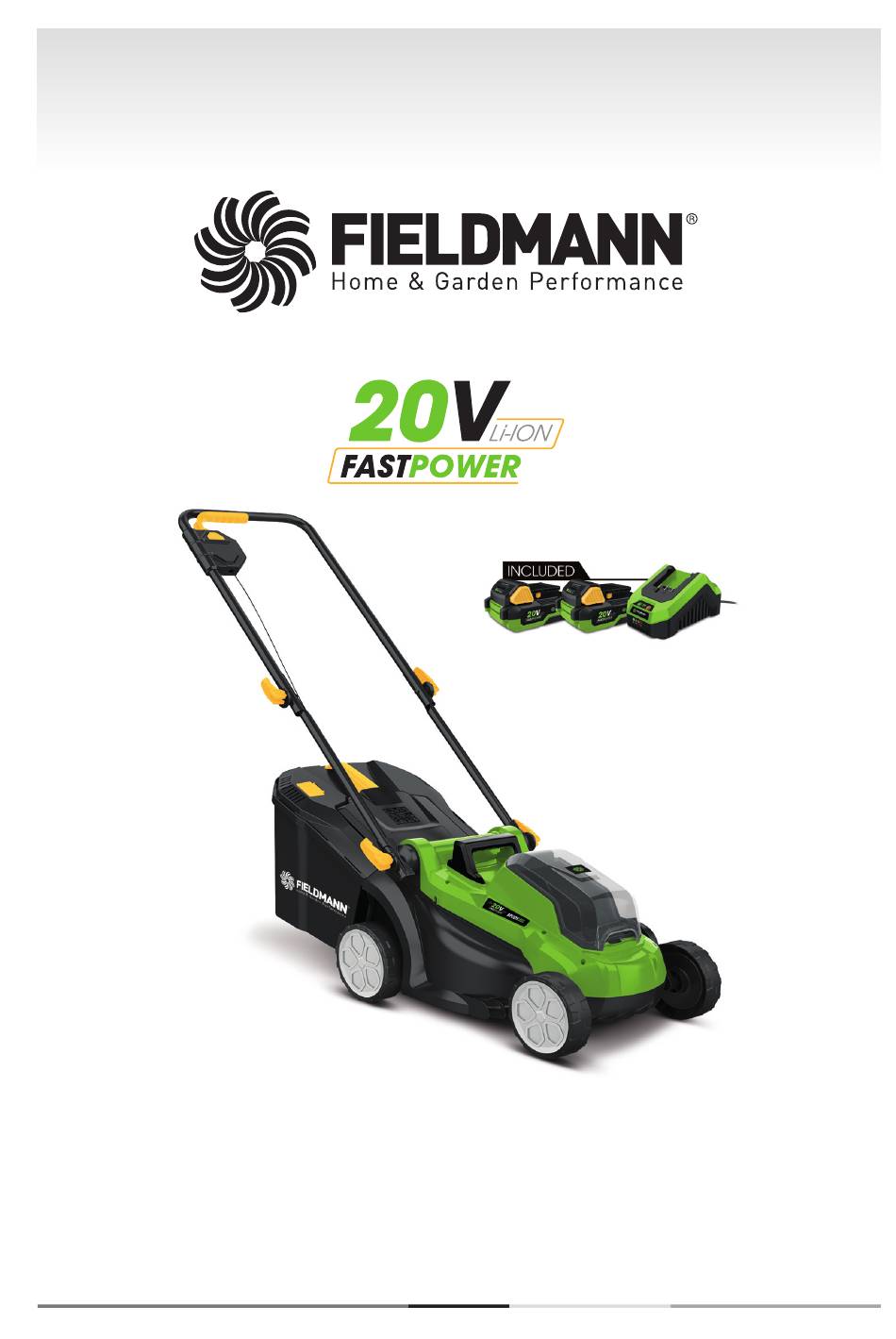

  • Page 3 ( 2x 2Ah battery included) ( 1x charger included) CORDLESS LAWN MOWER USER’S MANUAL...
  • Page 4 FZR 70335-A...
  • Page 5 (charger FDUZ 79110 not included) Loosen Tighten CORDLESS LAWN MOWER USER’S MANUAL...
  • Page 6 Quick charger (1x quick charger included) Battery 2 Ah (2x 2Ah battery ncluded) FZR 70335-A FZR 70335-A...

  • Page 7: Table Of Contents

    Table of contents Cordless lawn mower 330mm USER'S MANUAL Thank you for purchasing this cordless lawn mower with battery and charger. Before you start using it, please carefully read this user's manual and save it for possible future use. Section: Cordless lawn mower 1.

  • Page 8: General Safety Regulations

    User manual. The user’s manual also contains operating, maintenance, and repair instructions. The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions. FZR 70335-A...

  • Page 9: Symbols

    Symbols 2. SYMBOLS Risk of injury due to cutting mechanism! Never reach into the cutting mechanism. Use eye protection. Observe the safety instructions before using the product for the fi rst time. Use ear protection. Keep other persons in distance! WARNING! When operating the device, take care that no other persons are nearby (safe distance: 5m).

  • Page 10: Description

    Read carefully the basics of working safely with the machine and the user's manual. This machine must not be operated by anyone with limited physical, sensory or mental abilities (including children). Furthermore, it must not be used by inexperienced people who do not have the technical knowledge to operate it. FZR 70335-A...
  • Page 11 Basic work safety These people must be supervised by a competent person or instructed about the basics of work safety. If children are near the machine, make sure they do not play with it. Tingling or numb hands are indications of excessive vibrations. If this happens, shorten the work cycle, take suffi...

  • Page 12: Basic Work Safety

    Do not run when pushing the mower - walk normally. The following general rules apply for work with the lawn mower: When mowing on a slope, do not move up and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope. FZR 70335-A...
  • Page 13 Basic work safety Be very careful when changing direction on a slope. Never use the lawn mower on extremely steep slopes. If you need to pull the lawnmower towards you while it is running or if you need to move backwards with the lawnmower, be very careful.

  • Page 14: Assembly

    Insert the battery pack into the charger. Plug the charger into the power supply. The charging status is displayed by the control lights (13). Slot the battery pack into the device and make sure it clicks into place correctly. FZR 70335-A...
  • Page 15 Assembly CHECKING THE REMAINING CAPACITY OF THE BATTERY Press the button (11). The remaining capacity of the battery is displayed by the control lights (9). PREPARATION Set the cutting height The cutting height can be set to several different heights (Cutting heights: Technical data – p. 17). P.

  • Page 16: Operation

    • Cut longer grass with a greater cutting height initially, then cut crosswise using the desired cutting height. P. 6, item 9 • If the air fl ap (22) closes, the collection container is full and must be emptied. FZR 70335-A...

  • Page 17: Technical Specifications

    Technical specifi cations 7. TECHNICAL SPECIFICATIONS Model FZR 70335-A Power source 2 x 20 V / 2 Ah (included) Charging time 1 hour / 1 pc of 2 Ah Idling speed 3900 RPM Cutting width (blade length) 330 mm Mowing heights 25 –...

  • Page 18: Troubleshooting

    Cut result is not suffi cient. Blade is blunt? Have blade sharpened, or replace. If you can’t fi x the fault yourself, contact your nearest vendor. Please be aware that any improper repairs will also invalidate the war-ranty and additional costs may be incurred. FZR 70335-A...

  • Page 19: Maintenance

    Before using the machine, carry out all necessary repairs and maintenance. If, despite regular maintenance, the machine does not work, please contact our customer service, the repair should be carried out by our contractual partner in one of the specialised Fieldmann workshops. 9.1 REPLACING THE BLADE For this task, we recommend that you contact an authorised service centre.

  • Page 20: Disposal

    This product fulfi ls all basic requirements of the EU directives that apply to it. Text, design and technical specifi cations can change without prior notice and we reserve the right for their change. User manual in the original language. FZR 70335-A...

  • Page 21: Intended Use

    Intended use Fast Charger 1. INTENDED USE This product is not intended for commercial use. Generally acknowledged accident prevention regulations and enclosed safety instructions must be observed. Only perform work described in these instructions for use. Any other use is improper. The manufacturer will not assume responsibility for damage resulting from such use.

  • Page 22: Symbols And Pictograms

    Symbols and pictograms Only batteries authorised by the manufacturer with the values listed on the type plate of this power tool may be used. The use of a different battery may cause a risk of injuries and property damage as a result of an exploding battery.

  • Page 23: Charging The Battery Pack

    Charging the battery pack 5. CHARGING THE BATTERY PACK Note: The rechargeable battery is not included and is available as an option. Note: The actual appearance of your product may differ from the illustrations. WARNING! Risk of injury! Comply with all safety instructions when handling rechargeable devices. NOTICE! Risk of damage to the unit! Do not allow the battery pack to deep discharge.

  • Page 24: Disposal

    Disposal 6. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. The appliance and its accessories are manufactured from various materials, e.g. metal and plastic. Take damaged parts to a recycling centre.

  • Page 25: Symbols

    Symbols 2.0 Ah Battery 1. SYMBOLS Do not expose to rain or water Do not bum Read these operating instructions well before you use the tool Risk of injury when instructions are not followed The battery can be stored and charged at temperatures between 50°F (10°C) and 104°F(40°C).

  • Page 26: Safety Instructions For The Battery Pack And Battery Safety

    Use only the Fieldmann batteries supplied with the Fieldmann Tool or Fieldmann-approved replacements. Do not use the battery to power any device other than the Fieldmann tool it was sold with. Charge the battery only with the Fieldmann charger supplied with the tool or Fieldmann-approved replacements and according to the instructions in the Fieldmann Instruction Manual.

  • Page 27: Disposal

    Disposal pack can be recharged at any time during use, provided the pack is not overheated. If the battery pack starts to cut out due to low voltage, or previous tasks undertaken can no longer be performed, it is suggested to stop using the tool and recharge the battery. For storage, it is suggested to recharge the battery between 50% and 75% charge.

  • Page 28: Declaration Of Conformity

    Declaration of conformity DECLARATION OF CONFORMITY...
