Summary of Contents for Fieldmann FZR 70375-0

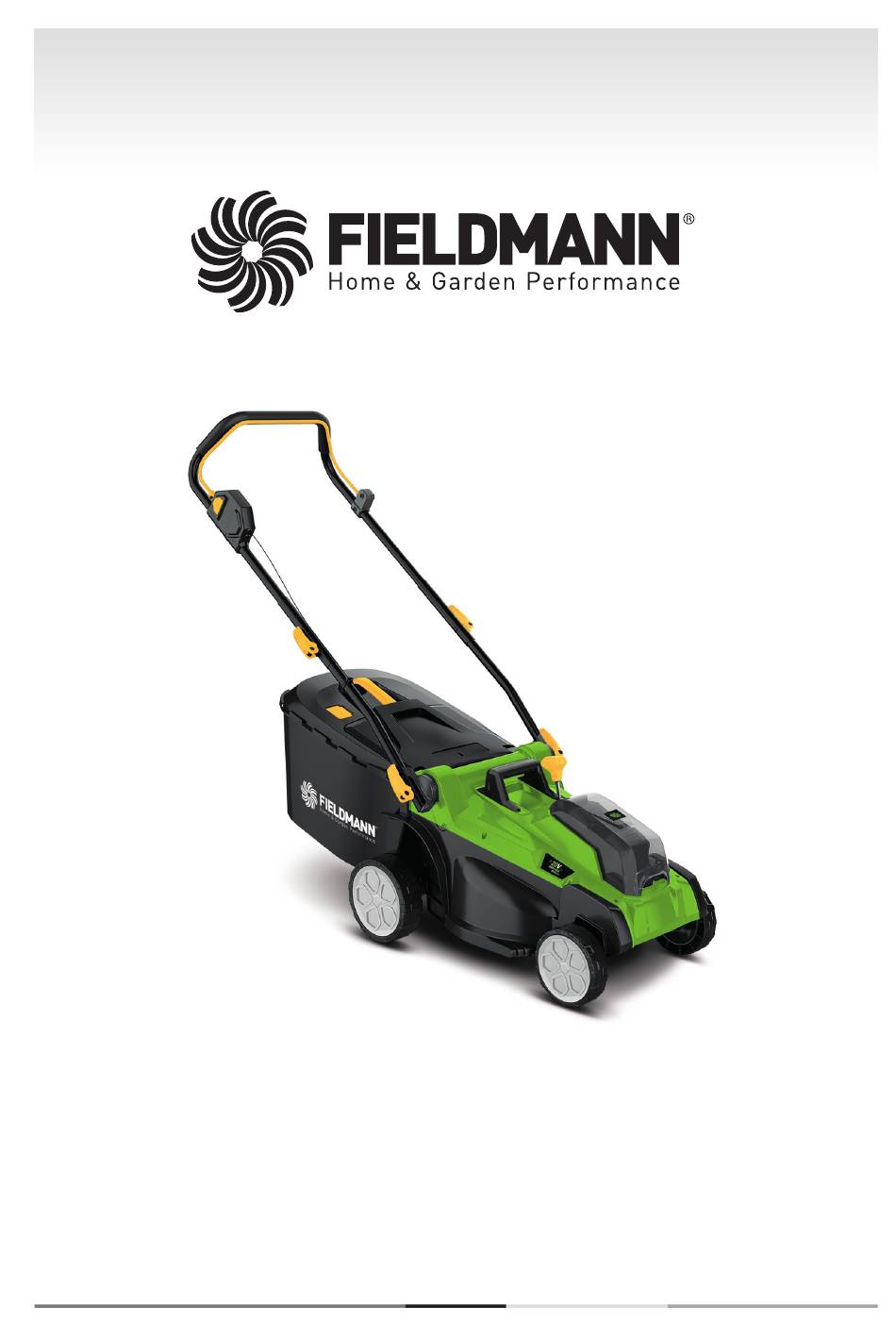

- Page 1 FZR 70375-0...
- Page 2 English ....................................1–22 Čeština .....................................23–38 Slovenčina ..................................39–54 Magyarul ..................................55–70 Polski ....................................71–86 FZR 70375-0...
- Page 3 (not included) (not included) CORDLESS LAWN MOWER USER’S MANUAL...
- Page 4 FZR 70375-0...
- Page 5 CORDLESS LAWN MOWER USER’S MANUAL...
- Page 6 (not included) FZR 70375-0...
-
Page 7: Table Of Contents

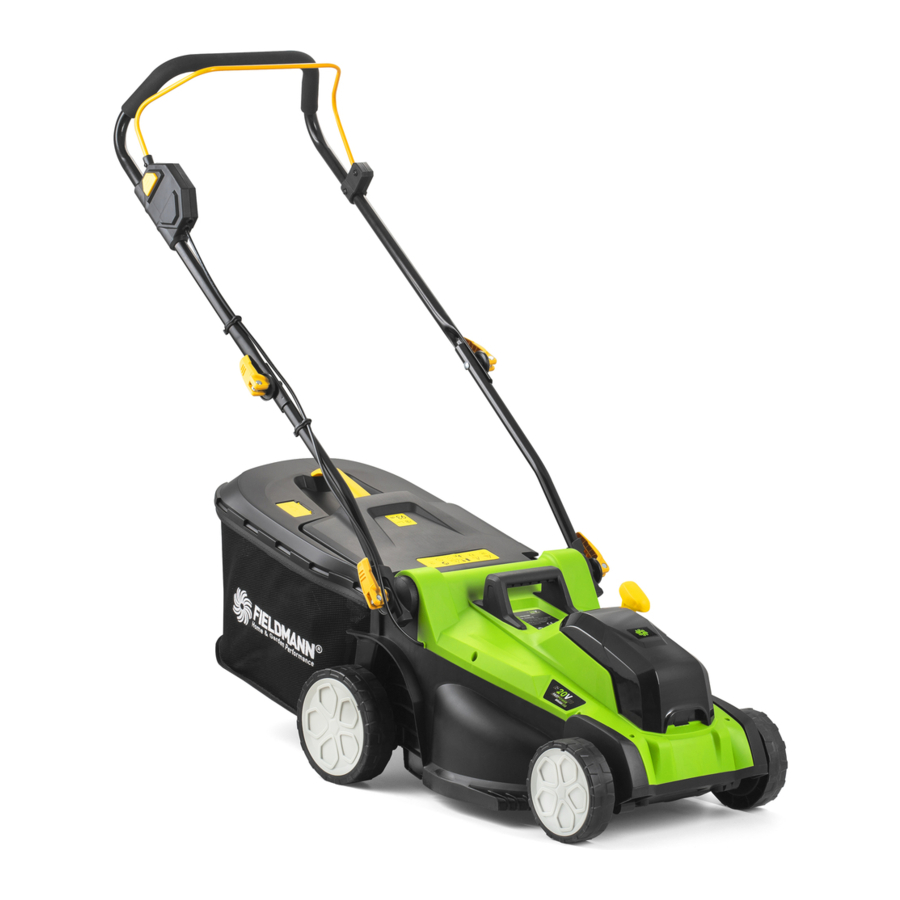

Cordless Lawn mower 370mm INSTRUCTIONS FOR USE Thank you for purchasing this cordless lawn mower. Before you start using it, please read this user manual carefully and save it for future use. TABLE OF CONTENTS 1. GENERAL SAFETY REGULATIONS ..........................8 2. -
Page 8: General Safety Regulations
User manual. The user’s manual also contains operating, maintenance, and repair instructions. The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions. FZR 70375-0... -
Page 9: Symbols
Symbols 2. SYMBOLS Risk of injury due to cutting mechanism! Never reach into the cutting mechanism. Use eye protection. Observe the safety instructions before using the product for the fi rst time. Use ear protection. Keep other persons in distance! WARNING! When operating the device, take care that no other persons are nearby (safe distance: 5m). -
Page 10: Description
This machine must not be operated by anyone with limited physical, sensory or mental abilities (including children). Furthermore, it must not be used by inexperienced people who do not have the technical knowledge to operate it. These people must be supervised by a competent person or instructed about the basics of work safety. FZR 70375-0... - Page 11 Basic work safety If children are near the machine, make sure they do not play with it. Tingling or numb hands are indications of excessive vibrations. If this happens, shorten the work cycle, take suffi ciently long breaks, share the work among several people or if the lawnmower is used for long periods wear special anti-vibration gloves.
- Page 12 The following general rules apply for work with the lawn mower: When mowing on a slope, do not move up and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope. Be very careful when changing direction on a slope. FZR 70375-0...
- Page 13 Basic work safety Never use the lawn mower on extremely steep slopes. If you need to pull the lawnmower towards you while it is running or if you need to move backwards with the lawnmower, be very careful. Always stop the blades from turning when transporting the machine or moving over an un-grassed area. Never use the machine if any covers are damaged or if any of its safety elements are missing such as defl...
-
Page 14: Assembly
The battery pack must be charged prior to the fi rst start-up (charging time: Technical data – p. 17). Press in the locking button (11) andremove the battery from the device. Insert the battery pack into the charger. Plug the charger into the power supply. FZR 70375-0... - Page 15 Assembly The charging status is displayed by the control lights (12). Slot the battery pack into the device and make sure it clicks into place correctly. CHECKING THE REMAINING CAPACITY OF THE BATTERY Press the button (10). The remaining capacity of the battery is displayed by the control lights (9). PREPARATION Set the cutting height The cutting height can be set to several different heights (Cutting heights: Technical data –...
-
Page 16: Operation
Note: Mulching is the use of cut grass as a natural compost. When mulch-mowing, the grass is cut, fi nely chopped and spread across the grass in one operation. Mounting the mulch wedge – p. 39 • Do not mulch moist grass. • Regularly clean the mulch wedge, ejection channel and cutting blade. FZR 70375-0... - Page 17 Technical specifi cations 7. TECHNICAL SPECIFICATIONS Model FZR 70375-0 Power source 2 x 20 V Idling speed 3,700 rpm Cutting width (blade length) 370 mm Mowing heights 25 – 75 mm (6 positions) Grass catcher volume 40 l Recommended mowing area:...
-
Page 18: Troubleshooting
Cut result is not suffi cient. Blade is blunt? Have blade sharpened, or replace. If you can’t fi x the fault yourself, contact your nearest vendor. Please be aware that any improper repairs will also invalidate the war-ranty and additional costs may be incurred. FZR 70375-0... -
Page 19: Maintenance
Before using the machine, carry out all necessary repairs and maintenance. If, despite regular maintenance, the machine does not work, please contact our customer service, the repair should be carried out by our contractual partner in one of the specialised Fieldmann workshops. 9.1 REPLACING THE BLADE For this task, we recommend that you contact an authorised service centre. -
Page 20: Disposal
This product fulfi ls all basic requirements of the EU directives that apply to it. Text, design and technical specifi cations can change without prior notice and we reserve the right for their change. User manual in the original language. FZR 70375-0... -
Page 21: Declaration Of Conformity
Declaration of conformity 11. DECLARATION OF CONFORMITY CORDLESS LAWN MOWER USER’S MANUAL...
