Summary of Contents for Fieldmann FZR 4616 BES

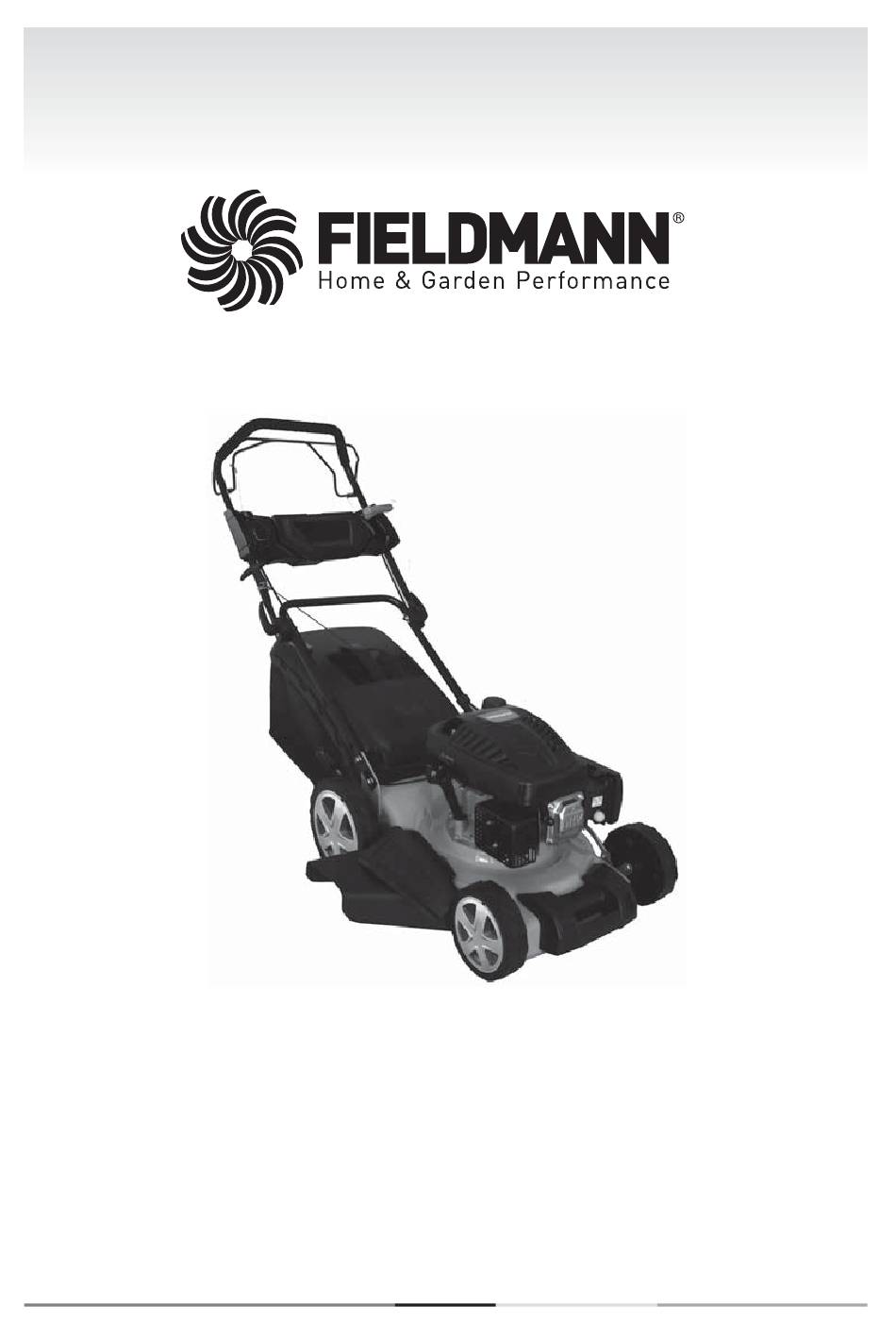

- Page 1 FZR 4616 BES...
-
Page 2: Table Of Contents
Table of Contents Petrol Lawnmower USER’S MANUAL Thank you for purchasing this rotary petrol lawnmower. Before you start using it, please, carefully read this user’s manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .........................4 Important safety information ..........................4 Packaging ..................................4 User's Manual ................................4... -
Page 3: General Safety Instructions
The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZR 4616 BES... -
Page 4: Explanation Of Instruction Labels On The Machine
Explanation of instruction labels on the machine 2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE Before putting into operation, please carefully read the user's manual. Keep other persons away from the work area. Attention, rotating blades! Protect yourself against the danger of injury to limbs. Emission of toxic gasses. - Page 5 Always maintain a distance from moving parts. Travel along the slope on contours, not up and down. Conforms to all relevant European directives. Petrol is extremely fl ammable and therefore allow the engine to cool down for 2 minutes before adding more fuel. FZR 4616 BES...
-
Page 6: Description Of The Lawnmower
Description of the lawnmower | Assembly/Preparation 3. DESCRIPTION OF THE LAWNMOWER (Fig. 1) 1. Start / brake lever Fig. 1 2. Travel lever 3. Choke control lever 4. Top part of the handle 5. Handle screws with quick couplers 6. Bottom part of the handle 7. -
Page 7: Assembling The Lawnmower
Attach the plastic handle panel using the included screws (fi g. 3). The screws used for fastening the panel at the top part are shorter than the screws intended for fastening at the bottom part. Fig. 3 FZR 4616 BES... -
Page 8: Before Starting The Lawnmower
Assembling the lawnmower | Before starting the lawnmower 3. ASSEMBLING THE GRASS CATCHER Secure the plastic hooks at the end of the textile part of the grass catcher into the steel frame (fi g. 4). Fig. 4 IMPORTANT NOTICE: The grass catcher is equipped with a full indicator. It is a plastic fl ap at the rear of the grass catcher. -
Page 9: Controlling And Operating The Lawnmower
Caution! The lawnmower is equipped with a charging coil, which recharges the battery while mowing. In the event that the battery is completely fl at (e.g. over winter), it is possible to start the lawnmower using the starting cord. FZR 4616 BES... -
Page 10: Controlling Travel
Controlling and operating the lawnmower CONTROLLING TRAVEL The travel is controlled using the travel lever (Fig. 7 – point 1). When the lever is pulled to the handle, the lawnmower will start moving. To stop, release the lever. This lawnmower has one constant speed. Fig. -
Page 11: Mulching
Tighten the screw. The tightening torque is 40 Nm. When replacing the the blade, replace the fastening bolt also. Fig. 10 CHANGING THE MOTOR OIL Caution! For this task, we recommend that you contact an authorised service centre. FZR 4616 BES... -
Page 12: Safety Instructions
Controlling and operating the lawnmower | Safety instructions The drain plug is located under the engine Fig. 11 (Fig. 11 – point 1). Place a suitable container for catching the used oil under the engine and remove the plug. Tilt the lawnmower so that all the oil can drain from the oil tank. -
Page 13: Maintenance
It is necessary to always keep in mind that the larger part of grass consists of a stem and one or more leaves. When the leaves are cut off completely, the lawn is damaged and the renewal of growth will be much more diffi cult. FZR 4616 BES... -
Page 14: Maintenance
Maintenance The following instructions generally apply: – excessively low mowing causes disruption to the roots and subsequently “spotty” appearance; – in summer, mowing must be higher to prevent the soil from drying out; – mowing wet grass may result in a lower effi ciency of the blade due to grass catching on the blade and grass being ripped out of the ground;... -
Page 15: Servicing
Screw out the spark plug and pour a small amount of motor oil into the socket. Gently pull the pull cord 2 to 3 times. Use a clean cloth to clean the exterior surfaces. Store the machine in a clean dry location. FZR 4616 BES... -
Page 16: Technical Specifications
Technical specifi cations 10. TECHNICAL SPECIFICATIONS Engine type OHV, air cooled, 4-stroke Rated power 2.50 kW Engine rpm 3000 rpm Displacement 139 cm Starting Electric, gel battery 12V, 7Ah Fuel tank volume 1.2 litres Recommended fuel Petrol - lead-free, at least 95 octane Oil tank volume 0.6 l Recommended oil... -
Page 17: Declaration Of Conformity
We Fast ČR, a.s., Černokostelecká 251 01 Říčany u Prahy, tel.:323204111, hereby declare, that the Fieldmann FZR 4616 BES Petrol Lawnmower (year of manufacture is indicated on the rating label and is followed by the serial number of the machine, meets the directives COUNCIL DIRECTIVE: 2006/42/EC –... -
Page 18: Disposal
Disposal 12. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. The machine and its accessories are manufactured from various materials, e.g. metal and plastic. - Page 19 Notes FZR 4616 BES...
