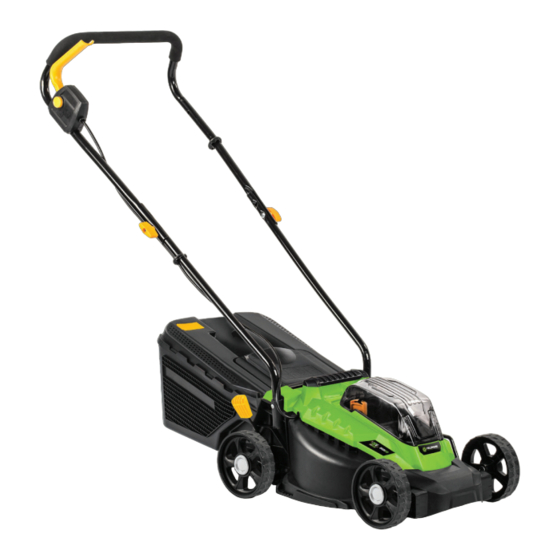

Fieldmann FZR 70330-0 Manual

Hide thumbs Also See for FZR 70330-0:
Table of Contents

Advertisement

Quick Links

Download this manual
FZR 70330-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FZR 70330-0 and is the answer not in the manual?

Questions and answers

Related Manuals for Fieldmann FZR 70330-0

Summary of Contents for Fieldmann FZR 70330-0

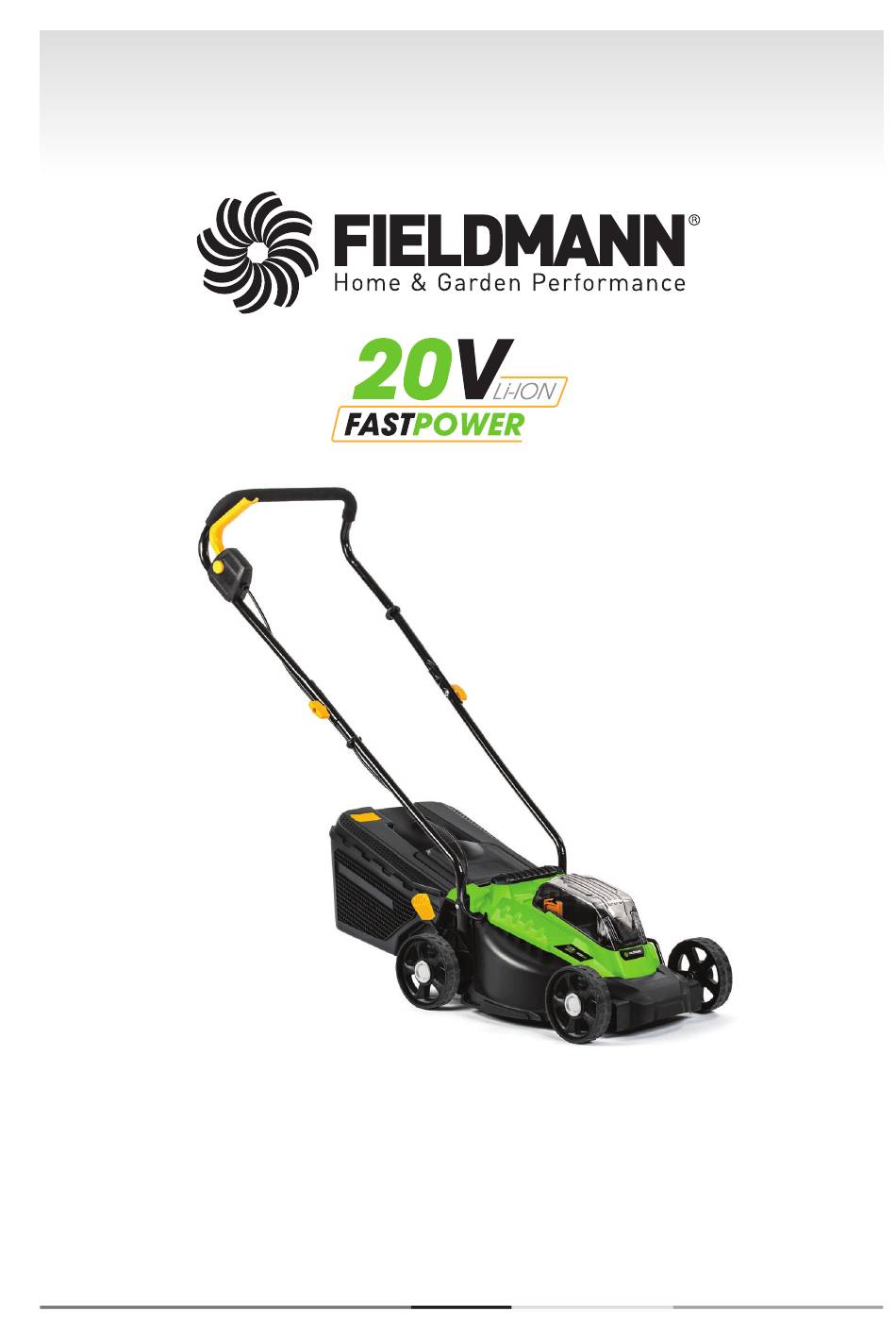

  • Page 1 FZR 70330-0...
  • Page 2 English ....................................1–22 Čeština .....................................23–39 Slovenčina ..................................40–56 Magyarul ..................................67–73 Polski ....................................77–90 FZR 70330-0...
  • Page 3 (not included) (not included) CORDLESS LAWN MOWER 33CM USER’S MANUAL...
  • Page 4 FZR 70330-0...
  • Page 5 (not included) CORDLESS LAWN MOWER 33CM USER’S MANUAL...

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 1. GENERAL SAFETY REGULATIONS ..........................7 2. SYMBOLS ..................................8 3. DESCRIPTION ..................................9 4. BASIC WORK SAFETY ..............................9 5. ASSEMBLY AND OPERATION..........................12 6. TECHNICAL SPECIFICATIONS ..........................19 7. TROUBLESHOOTING ..............................20 8. MAINTENANCE ................................21 9. DISPOSAL ..................................22 FZR 70330-0...

  • Page 7: General Safety Regulations

    General safety regulations 1. GENERAL SAFETY REGULATIONS IMPORTANT SAFETY NOTICE Unpack the product carefully and do not throw away any of the packaging until you have found all the parts of the product. Store the product in a dry place out of reach of children. Read all the warnings and instructions.

  • Page 8: Symbols

    Read the Instruction Manual attentively prior to use. Protect the tool from the damp and never expose it to rain! Guaranteed sound power level Lwa 96 dB (A) Before doing any maintenance and repair work disconnect the circuit breaker from the lawn mower. FZR 70330-0...

  • Page 9: Description

    Description 3. DESCRIPTION 1. Grip handle with foam 12. Rear wheel (x2) 2. Switch trigger Rear wheel cap (x2) 3. Switch box 13. Deck 4. Upper handle 14. Upper cover 5. Wing nut (x2) 15. Lever for cutting height adjustment a.
  • Page 10 • Inhaling grass clipping particles • Electric shock from un-insulated parts. This machine must not be operated by those with limited physical, sensory or mental abilities (including children) or inexperienced persons or persons whose technical knowledge is evidently insufficient for FZR 70330-0...
  • Page 11 Basic work safety the given task; and these people should only operate the device under the supervision of a person that is competent for this task or where the person is thoroughly instructed in working safely with the machine. If children are near the machine, make sure they do not play with it. ATTENTION! Carefully read the user manual before using this lawn mower.

  • Page 12: Assembly And Operation

    Insert the lower handle (6) into the corresponding hole of the deck, and fix the lower handle with 2 screws*. Note: Parts marked with * are not shown in this overview. Please refer to the respective part in the instruction manual. FZR 70330-0...
  • Page 13 Assembly and operation 5.2 UPPER HANDLE Hold the upper handle (1) with switch trigger (2) facing upwards. Align the mounting holes of the upper handle (1) and the lower handle (6). Pass the mounting bolts (5-a) through the mounting holes of the upper handle (1) and the lower handle (6) to the end, fasten the bolt (5-a) with the wing nut (5).
  • Page 14 Make sure that the electrical contacts are fully inserted into the battery pack (21) and that it snaps in place with a click. The battery pack (21) can only be installed in one direction. Reinstall the safety key (20) into its slot. Close the battery cover (16). FZR 70330-0...
  • Page 15 Assembly and operation RELEASING THE BATTERY PACK The battery pack (21) can’t be charged whilst in the mower. Remove the battery pack (21) from its battery compartment or spare battery compartment for charging. Pull open the battery cover (16). Squeeze the release button to unlock the latch of battery pack (21). Slide out the battery pack (21) from the battery compartment.
  • Page 16 When the hatch is opened, indicator (7) is blown up by airflow, which means the grass collector has sufficient volume left to collect grass. When the hatch is closed, the grass collector is full and must be emptied. Note: A full grass catcher will reduce the performance of this product FZR 70330-0...
  • Page 17 Assembly and operation 5.6 EMPTYING Empty the grass collector frequently during use. Do not wait until it is completely full. We recommend emptying it when it is half full. Switch the product off and make sure that the motor has stopped and the cutting blade has stopped rotating. Lift the rear flap (10) and lift the grass collector off the hooks Remove the grass clippings from the rear discharge chute into the grass collector.
  • Page 18 WARNING! If the product strikes a foreign object stop immediately! Let the product cool down and thoroughly inspect the product for damage! Have any damage repaired before restarting! Extensive vibration of the product during operation is an indication of damage! The product should be promptly inspected and repaired! FZR 70330-0...

  • Page 19: Technical Specifications

    Technical specifications 6. TECHNICAL SPECIFICATIONS General Rated voltage Rated no load speed n0 2800-3400 min Max. cutting width 33 cm Cutting height range 30-75 mm, 5 levels Grass catcher volume 30 l Protection class Degree of protection IPX1 Wheel size 140 mm Weight approx.

  • Page 20: Troubleshooting

    Cut result is not sufficient. Blade is blunt? Have blade sharpened, or replace. If you can’t fix the fault yourself, contact your nearest vendor. Please be aware that any improper repairs will also invalidate the war-ranty and additional costs may be incurred. FZR 70330-0...

  • Page 21: Maintenance

    Before using the machine, carry out all necessary repairs and maintenance. If, despite regular maintenance, the machine does not work, please contact our customer service, the repair should be carried out by our contractual partner in one of the specialised Fieldmann workshops. 8.1 REPLACING THE BLADE For this task, we recommend that you contact an authorised service centre.

  • Page 22: Disposal

    This product fulfils all basic requirements of the EU directives that apply to it. Text, design and technical specifications can change without prior notice and we reserve the right for their change. User manual in the original language. FZR 70330-0...
  • Page 25 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
  • Page 26 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
