Summary of Contents for Fieldmann FZR 70385-0

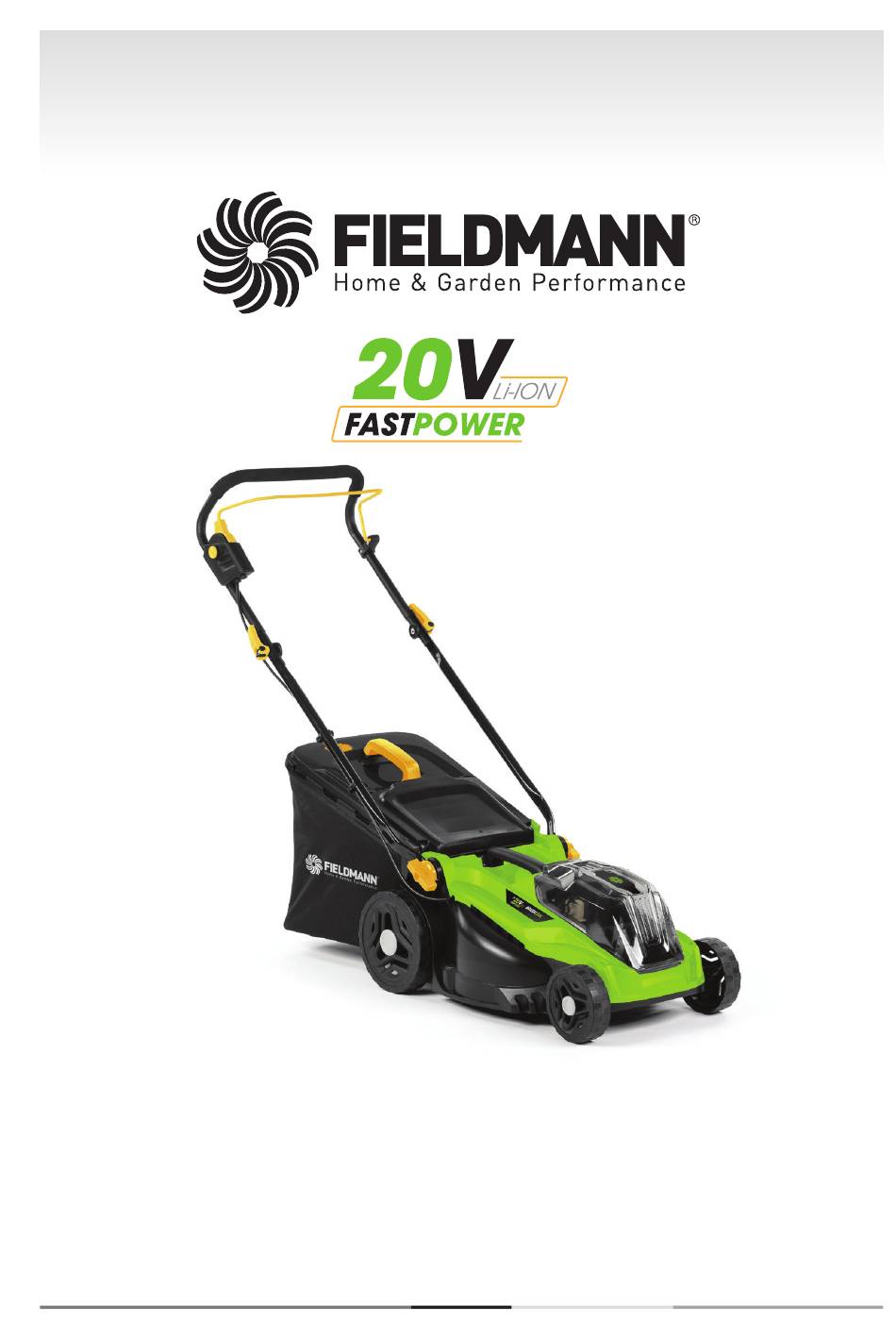

- Page 1 FZR 70385-0...
- Page 2 (not included) (not included) CORDLESS LAWN MOWER 38CM USER’S MANUAL...
- Page 3 FZR 70385-0...
- Page 4 CORDLESS LAWN MOWER 38CM USER’S MANUAL...
- Page 5 (not included) FZR 70385-0...
-
Page 6: Table Of Contents
General safety regulations CORDLESS LAWN MOWER 38CM INSTRUCTIONS FOR USE Thank you for purchasing this cordless lawn mower. Before you start using it, please read this user manual carefully and save it for future use. TABLE OF CONTENTS Instructions for use ................................7 1. -
Page 7: General Safety Regulations
User manual. The user’s manual also contains operating, maintenance, and repair instructions. The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions. FZR 70385-0... -
Page 8: Symbols
Symbols 2. SYMBOLS Risk of injury due to cutting mechanism! Never reach into the cutting mechanism. Use eye protection. Observe the safety instructions before using the product for the first time. Use ear protection. Keep other persons in distance! WARNING! When operating the device, take care that no other persons are nearby (safe distance: 5m). -
Page 9: Description
• If you hit a foreign body when working with it • If the machine vibrates excessively. Read carefully the basics of working safely with the machine and the user's manual. This machine must not be operated by anyone with limited physical, sensory or mental abilities (including FZR 70385-0... - Page 10 Basic work safety children). Furthermore, it must not be used by inexperienced people who do not have the technical knowledge to operate it. These people must be supervised by a competent person or instructed about the basics of work safety. If children are near the machine, make sure they do not play with it.
- Page 11 Make sure that during work you always have a firm support and a secure stance. Do not run when pushing the mower - walk normally. The following general rules apply for work with the lawn mower: When mowing on a slope, do not move up FZR 70385-0...
- Page 12 Basic work safety and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope. Be very careful when changing direction on a slope. Never use the lawn mower on extremely steep slopes. If you need to pull the lawnmower towards you while it is running or if you need to move backwards with the lawnmower, be very careful.
-
Page 13: Assembly And Operation
Do not connect the product to battery pack (18) before it is completely assembled! Note: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. FZR 70385-0... - Page 14 Assembly and operation LOWER HANDLE Put the main unit (13) on the ground. Connect the lower handle (6) with the Handle support assembly (11): mount a angle adjustment wheel (11-a) to the lower handle (6) with 2 screws (11-b), The lower handle (6) is fixed on the main unit (13) through the engagement of a angle adjustment wheel (11-a) and a fixed wheel (11-c).
- Page 15 Make sure that the electrical contacts are fully inserted into the battery pack (22) and that it snaps in place with a click. The battery pack (22) can only be installed in one direction. Reinstall the safety key (20) into its slot . Close the battery cover (16) . FZR 70385-0...
- Page 16 Assembly and operation RELEASING THE BATTERY PACK The battery pack (22) can’t be charged whilst in the mower. Remove the battery pack (22) from its battery compartment or spare battery compartment for charging. Pull open the battery cover (16). Squeeze the release button to unlock the latch of battery pack (22) . Slide out the battery pack (22) from the battery compartment .
- Page 17 Pull the lever (15) towards the rear wheel (12) . Move forward or backward to adjust the cutting height . Release the lever (15) and ensure it engaged in the slot properly FZR 70385-0...
- Page 18 Assembly and operation HANDLE BAR ADJUSTMENT Loosen the angle adjustment wheel (11-a) anti-clockwise but do not remove them . Grasp the grip handle (1) and adjust to a comfortable position for the user. Tighten the angle adjustment wheel (11-a)clockwise afterwards. GRASS INDICATOR The grass collector is equipped with a hatch that indicates the filling during operation.
- Page 19 While holding the safety switch button (3) pressed , pull the start lever (2) towards the grip handle (1) . After the mower starts, release the safety switch button (3). The product begins mowing. Release the start lever (2) to stop the mower. FZR 70385-0...
-
Page 20: Technical Specifications
7. Technical specifications 7. TECHNICAL SPECIFICATIONS General FZR 70375-0 Rated voltage 2x20V Rated no load speed n0 2800-3400 min-1 Max. cutting width 38 cm Cutting height range 30-75 mm, 5 levels Grass catcher volume 42 l Wheel size 140 (front) / 178 (rear) mm Weight approx. -
Page 21: Troubleshooting
Cut result is not sufficient. Blade is blunt? Have blade sharpened, or replace. If you can’t fix the fault yourself, contact your nearest vendor. Please be aware that any improper repairs will also invalidate the war-ranty and additional costs may be incurred. FZR 70385-0... -
Page 22: Maintenance
Before using the machine, carry out all necessary repairs and maintenance. If, despite regular maintenance, the machine does not work, please contact our customer service, the repair should be carried out by our contractual partner in one of the specialised Fieldmann workshops. 9.1 REPLACING THE BLADE For this task, we recommend that you contact an authorised service centre. -
Page 23: Disposal
This product fulfils all basic requirements of the EU directives that apply to it. Text, design and technical specifications can change without prior notice and we reserve the right for their change. User manual in the original language. FZR 70385-0... - Page 26 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
