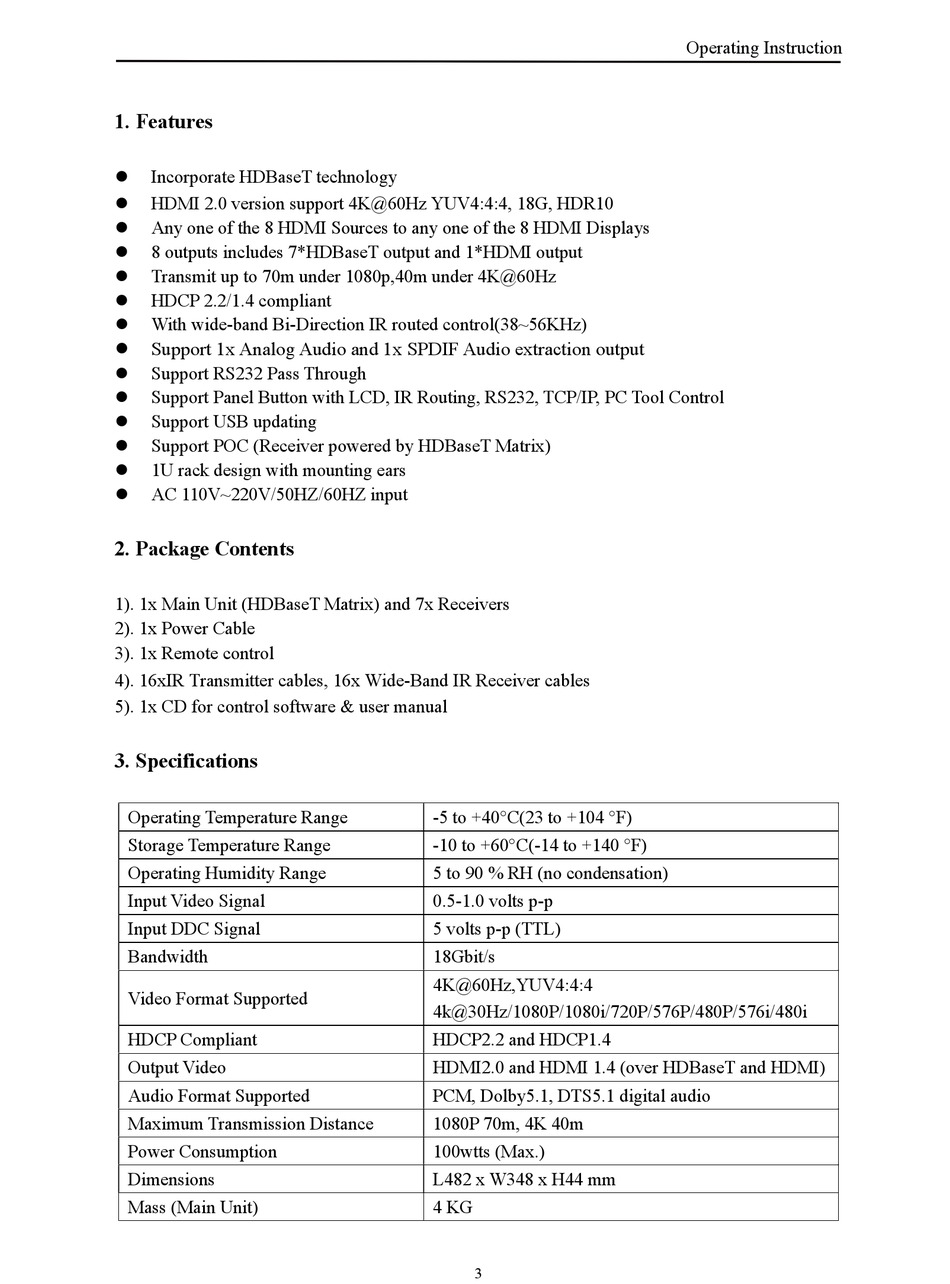

1. Features

Incorporate HDBaseT technology

HDMI 2.0 version support 4K@60Hz YUV4:4:4, 18G, HDR10

Any one of the 8 HDMI Sources to any one of the 8 HDMI Displays

8 outputs includes 7*HDBaseT output and 1*HDMI output

Transmit up to 70m under 1080p,40m under 4K@60Hz

HDCP 2.2/1.4 compliant

With wide-band Bi-Direction IR routed control(38~56KHz)

Support 1x Analog Audio and 1x SPDIF Audio extraction output

Support RS232 Pass Through

Support Panel Button with LCD, IR Routing, RS232, TCP/IP, PC Tool Control

Support USB updating

Support POC (Receiver powered by HDBaseT Matrix)

1U rack design with mounting ears

AC 110V~220V/50HZ/60HZ input


2. Package Contents

1). 1x Main Unit (HDBaseT Matrix) and 7x Receivers
2). 1x Power Cable
3). 1x Remote control
4). 16xIR Transmitter cables, 16x Wide-Band IR Receiver cables
5). 1x CD for control software & user manual

3. Specifications

Operating Temperature Range
Storage Temperature Range
Operating Humidity Range
Input Video Signal
Input DDC Signal
Bandwidth
Video Format Supported
HDCP Compliant
Output Video
Audio Format Supported
Maximum Transmission Distance
Power Consumption
Dimensions
Mass (Main Unit)
-5 to +40°C(23 to +104 °F)
-10 to +60°C(-14 to +140 °F)
5 to 90 % RH (no condensation)
0.5-1.0 volts p-p
5 volts p-p (TTL)
18Gbit/s
4K@60Hz,YUV4:4:4
4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i
HDCP2.2 and HDCP1.4
HDMI2.0 and HDMI 1.4 (over HDBaseT and HDMI)
PCM, Dolby5.1, DTS5.1 digital audio
1080P 70m, 4K 40m
100wtts (Max.)
L482 x W348 x H44 mm
4 KG
3
