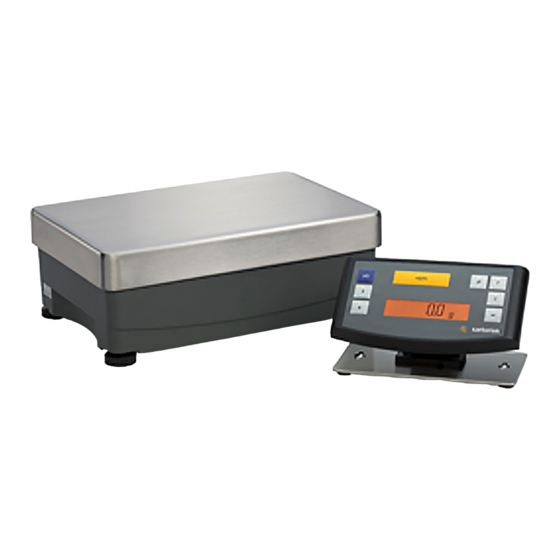

- Page 1 Operating Instructions Sartorius PMA.Power Model PMA35001-Y Electronic Paint-mixing Scale for Use in Zone 2 Hazardous Areas 1000025284...
-
Page 2: General View Of The Equipment
General View of PMA35001-Y (PMA.Power) For Use in Zone 2 Hazardous Areas 14 Cable connection Display and control unit 15 Load plate 2 Display 16 S ‘Down’ key 3 U Zero/tare key 17 Power supply and data cable for the display... -
Page 3: Table Of Contents
EC Directive 2014/34/EU for If you wish to create your own applica- Class II, Category 3G equipment� tion software, Sartorius can supply the The safety instructions listed in drawing required drivers for DOS or Windows 2444395 (refer to Documents) must be operating systems�... - Page 4 If you need assis- operation of the system� He is also familiar with all relevant tance, contact your Sartorius dealer or the guidelines and regulations, and has the Sartorius Service� Any installation work required qualifications for performing the that does not conform to the instructions installation�...
- Page 5 AC power and prevent use of the excessive heat� equipment for the time being� – Only use original Sartorius spare parts� – Chemicals (e�g� gases or liquids) that can – Never use a hammer to close a paint can...
-
Page 6: Getting Started
Getting Started § Unpack the scale carefully� § After unpacking the equipment, inspect the device immediately for any visible damage that may have been caused by rough handling during shipment� Package Contents – Scale – Load plate – Adapter cable Setting up the Scale Choose a suitable location where your scale will not be exposed to drafts, heat radiation, moisture or... - Page 7 If the stated supply voltage or the plug design of the power cord does not comply with the standard you use, please inform your nearest Sartorius representa- tive or your supplier� Installation...
-
Page 8: Operation
Operation Once the scale has been If a different value is Press the Q key (19) to turn on the scale� turned on, it will run an displayed: Tare the scale automatic self-test� This is using the U key (Zero/ concluded with the readout tare) (3)�... -
Page 9: Applications
Applications Formulation Mode (Calculation by a Factor) This mode enables you to weigh in amounts that are smaller or larger than that of your basic formula for a specific paint color (e�g� 250 ml of a 1 l formula)� You can select various factors (amounts) by pressing the K factor key (6): 0�5 1�0 1�5 2�0 2�5 3�0 3�5 4�0 4�5 5�0 10�0 15�0 20�0 25�0�... - Page 10 3� »3.0« appears next to the weight readout� 4� Slowly pour in the first component until the display shows »250 g«� 5� Pour in the second component until »500 g« is displayed� 6� Pour in the last component until »1000 g« is displayed�...
- Page 11 Example (Cumulative Weighing) 1. Center an empty paint can 3. Add first component Press the U key (zero/ on the load plate (15)� tare; (3))� + 50�0 g + 118�0 g 0�0 g 4. Press the L key [MEM] (8) 5.
-
Page 12: Calibration/Adjustment
Calibration/Adjustment You can calibrate/adjust the scale by pressing the U key (Zero/tare) (3)� Calibration weights: 10,000 g; resolution: ± 0�016 g� Always allow approximately 30 minutes for the scale to warm up after connecting it to AC power and before performing calibration/adjustment� Press the U key (Zero/tare) (3) for 2 seconds;... -
Page 13: Menu Settings
This concludes the example� § Press the L key [ENTER]; o is displayed, indicating that this item is set� § Press c key (Clear) repeatedly to exit the menu� Note: Contact your local Sartorius office for a detailed list of the menu codes�... - Page 14 Configuring the Main Menu Settings § Hold down the L key [ENTER] for approximately 2 seconds; “SETUP” is displayed� Level 1 SETUP Language Setting Level 1 Level 2 § Press the R key to select LANGUAGE LANGUAGE § Press the L key [ENTER] §...
- Page 15 I Configuring the Toggle-key Function Pressing the toggle key I (4) toggles the scale between the default unit (defined under SETUP > SCALE > UNIT; see page 13) and the unit defined as follows under SETUP > APPLICATION > UNIT� Level 1 Level 2 Level 3...
- Page 16 Configuring Password Protection In addition to the LOCK function, you can configure password protection for additional security� With this feature, the LOCK function can be deactivated only by entering the password you configure� The password is numeric and can have up to 6 digits� Use the RS keys to select the digits (0 through 9) for your password�...
- Page 17 GERMAN § Press the L key [ENTER]; o indicates etc� o CODES the active setting § Press the c key (Clear) repeatedly to exit the menu Note: Contact your local Sartorius office for a detailed list of the menu codes�...
-
Page 18: Troubleshooting Guide
Troubleshooting Guide Problem Cause Solution No segments appear – No AC power is available – Check the AC power supply on the display The weight readout – No load plate on the scale – Position the load plate shows “Low” The weight readout –... -
Page 19: Care And Maintenance
It is a good idea to save the box and all In this case, notify the Sartorius Service parts of the packaging for future storage or the International Technical Support or shipment of the equipment�... -
Page 20: Disposal
– Dispose of the device� Follow the disposal devices! instructions on our website Devices contaminated with hazardous (www�sartorius�com)� materials (NBC contamination) will not be – Dispose of the packaging in accordance accepted by Sartorius for repair or disposal� with local government regulations�... -
Page 21: Interface Description
The adapter cable is required for operation of the scale with a PC� If you wish to create your own application software, Sartorius can supply the required drivers for DOS or Windows operating systems� Make sure to observe the safety instructions�... -
Page 22: Serial Number Coding
Serial Number Coding Sartorius Lab Instruments GmbH & Co. KG 37070 Goettingen, Germany Made in Germany 产品名称： 卓逸电子天平 Siehe Sicherheitshinweise / 労(○年□月)検 See Safety Instructions / PMA35001-Y Model / modelo / 产品型号： DEK19.0002X Voir les consignes de sécurité / Sartorius Lab... -
Page 23: Technical Data
Technical Data Type PMA 35001-Y Weighing range 35000 Readability Tare range (subtractive) -35000 Max. linearity <±0.2 Stabilization time, configured via menu digit 0.25 to 4 Humidity class non-condensing Ambient operating temperature range °C 0...+40 Storage temperature °C -20...+70 Highest rel. humidity 80, for temperatures up to 31°C, decreasing linearly up to 50% relative humidity for 40 °C. -
Page 24: Documents
Documents Hazardous Area Zone 2 Group IIB, T4 Ambient temperature range: 0°C ... +40°C Explosion protected plug; certified for use in Zone 2 SARTORIUS Model Alternative 6) 8) Display 3) 8) connections PMA35001-Y Unit Mains cable. Plug of the mains... - Page 25 Any tampering with the equipment by anyone, other than repair work done by authorized Sartorius service technicians, will result in the loss of EX conformity and in the forfeiture of all claims under the manufacturer's warranty.
- Page 29 2019-03-05...
- Page 32 Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Strasse 20 37079 Goettingen, Germany Phone: +49.551.308.0 www.sartorius.com The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
