Operating Instructions
Original Operating Instructions
Sartorius PMA.Power
Model PMA35001-Y
Electronic Paint-mixing Scale for Use Hazardous Areas
1000025284

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMA.Power PMA35001-Y and is the answer not in the manual?

Questions and answers

Related Manuals for Sartorius PMA.Power PMA35001-Y

Summary of Contents for Sartorius PMA.Power PMA35001-Y

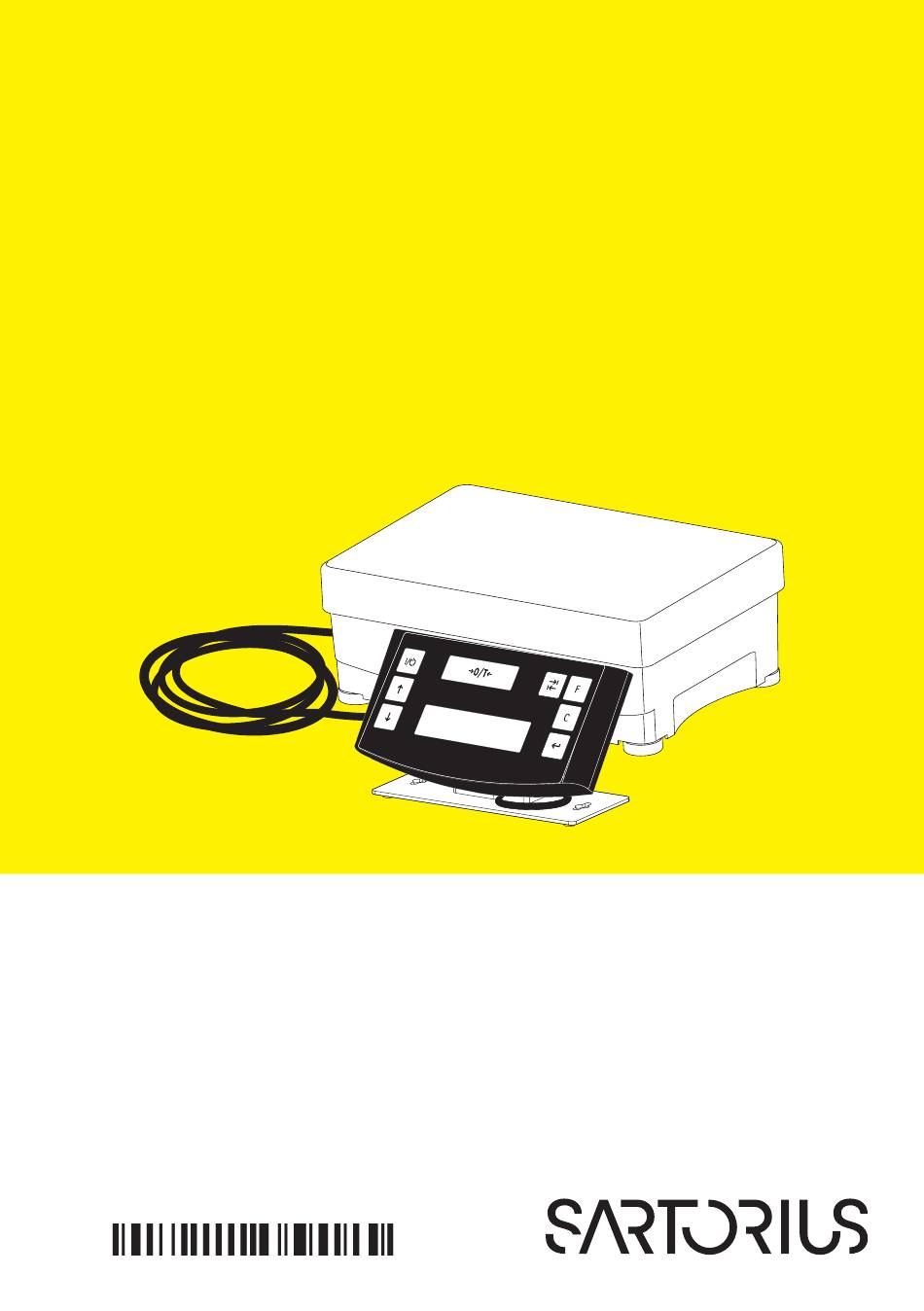

  • Page 1 Operating Instructions Original Operating Instructions Sartorius PMA.Power Model PMA35001-Y Electronic Paint-mixing Scale for Use Hazardous Areas 1000025284...

  • Page 2: (Pma.power)

    General View of PMA35001-Y (PMA.Power) For Use in Zone 2 Hazardous Areas 1 Display and control unit 14 Cable connection 2 Display 15 Load plate 3 U Zero/tare key 16 S ‘Down’ key 4 I Toggle key depending on the menu setting: 17 Power supply and data cable for the display and You can configure the PMA35001-Y menu to control unit...

  • Page 3: Table Of Contents

    EC Directive 2014/34/EU for If you wish to create your own application Class II, Category 3G equipment. software, Sartorius can supply the required The safety instructions listed in drawing drivers for DOS or Windows operating 2444395 (refer to Documents) must be strict- systems.
  • Page 4 If you need assistance, con- claims under the manufacturer’s warranty. tact your Sartorius dealer or the Sartorius – To avoid generating static electricity when using the dust cover: Service.
  • Page 5 AC power and prevent use of the equip- – Only use original Sartorius spare parts. ment for the time being. – Do not close a paint can using a hammer – Chemicals (e.g. gases or liquids) that can...

  • Page 6: Getting Started

    Getting Started Scope of delivery – Scale – Load plate – USB | RS232 data cable Installation site Choose a suitable installation site where the device will not be exposed to drafts, heat radiation, moisture or vibrations. Read the Operating Instructions before connecting the device to the mains power supply.
  • Page 7 If the stated supply voltage or the plug design of the power cord does not comply with the standard you use, please inform your nearest Sartorius representa- tive or your supplier.
  • Page 8 Installation The device must be plugged into a properly installed wall outlet which has a protective grounding conductor (PE) and a max. (16A) fuse. Connection of the power cord plug (12) outside of the hazardous area or mechanically secured (refer to “Safety Information”...

  • Page 9: Operation

    Operation Once the scale has been If a different value is Press the Q key (19) to turn turned on, it will run an displayed: Tare the scale on the scale. automatic self-test. This is using the U key (Zero/ concluded with the readout tare) (3).

  • Page 10: Applications

    Applications Formulation Mode (Calculation by a Factor) This mode enables you to weigh in amounts that are smaller or larger than that of your basic formula for a specific paint color (e.g. 250 ml of a 1 l formula). You can select various factors (amounts) by pressing the K factor key (6): 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 10.0 15.0 20.0 25.0.
  • Page 11 3. »3.0« appears next to the weight readout. 4. Slowly pour in the first component until the display shows »250 g«. 5. Pour in the second component until »500 g« is displayed. 6. Pour in the last component until »1000 g« is displayed.
  • Page 12 Example (Cumulative Weighing) 1. Center an empty paint can on 3. Add first component Press the U key (zero/ the load plate (15). + 50.0 g tare; (3)). + 118.0 g 0.0 g 5. Add the second component 4. Press the L key [MEM] (8) 6.

  • Page 13: Calibration/Adjustment

    Calibration/Adjustment You can calibrate/adjust the scale by pressing the U key (Zero/tare) (3). Calibration weights: 10,000 g; resolution: ± 0.016 g. Always allow approximately 30 minutes for the scale to warm up after connecting it to AC power and before performing calibration/adjustment. Press the U key (Zero/tare) (3) for 2 seconds;...

  • Page 14: Menu Settings

    Press the L key [ENTER], »o« is displayed, the new menu item is set. Exiting the menu c key (Clear) several times to exit the menu. Note: Contact the local Sartorius office for a detailed list of the menu codes...
  • Page 15 Configuring the Main Menu Settings Hold down the L key [ENTER] for approximately 2 seconds; “SETUP” is displayed. Level 1 SETUP Language Setting Level 1 Level 2 Press the R key to select LANGUAGE LANGUAGE Press the L key [ENTER] o GERMAN Press the RS keys to select a language Press the L key [ENTER];...
  • Page 16 I Configuring the Toggle-key Function Pressing the toggle key I (4) toggles the scale between the default unit (defined under SETUP > SCALE > UNIT; see page 13) and the unit defined as follows under SETUP > APPLICATION > UNIT. Level 1 Level 2 Level 3...
  • Page 17 Configuring Password Protection In addition to the LOCK function, you can configure password protection for additional security. With this feature, the LOCK function can be deactivated only by entering the password you configure. The password is numeric and can have up to 6 digits. Use the RS keys to select the digits (0 through 9) for your password.
  • Page 18 Use the RS keys to select “CODES” GERMAN Press the L key [ENTER]; o indicates etc. o CODES the active setting Press the c key (Clear) repeatedly to exit the menu Note: Contact your local Sartorius office for a detailed list of the menu codes.

  • Page 19: Troubleshooting Guide

    Troubleshooting Guide Problem Cause Solution No segments appear – No AC power is available – Check the AC power supply on the display The weight readout – No load plate on the scale – Position the load plate shows “Low” The weight readout –...

  • Page 20: Care And Maintenance

    It is a good idea to save the box and all In this case, notify the Sartorius Service parts of the packaging for future storage or the International Technical Support or shipment of the equipment.

  • Page 21: Disposal

    Warning instructions on our website Risk of injury due to contaminated (www.sartorius.com). devices! Dispose of the packaging in accordance Devices contaminated with hazardous with local government regulations. materials (NBC contamination) will not be accepted by Sartorius for repair or disposal.

  • Page 22: Interface Description

    The scale can only be operated on a PC via an RS232 data cable if you connect the adapter cable. If you wish to create your own application software, Sartorius can supply the required drivers for DOS or WINDOWS operating systems. Make sure to observe the safety instructions.

  • Page 23: Technical Data

    Technical Data Type PMA 35001-Y Weighing range 35000 Readability Tare range (subtractive) -35000 Max. linearity <±0.2 Stabilization time, configured via menu digit 0.25 to 4 Humidity class non-condensing Ambient operating temperature range °C 0...+40 Storage temperature °C -20...+70 Allowable humidity during % max.

  • Page 24: Accessories

    Accessories Item Order no. In-use dust cover YDC01PMA RS232 data cable (2 m) YCC01-0047M2 USB/RS232 data cable (2 m) YCCO1-USBM2 Adapter cable 25 to 9 pin (0.2 m) 69PM0057...

  • Page 25: Documents

    EC-Type Examination Certificate number Die Person, die bevollmächtigt ist, die technischen Unterlagen zusammenzustellen: The person authorised to compile the technical file: Sartorius Lab Instruments GmbH & Co. KG Electronics & Product Compliance 37070 Goettingen, Germany Sartorius Lab Instruments GmbH & Co. KG...
  • Page 30 Issue 0 (2019-03-05) Status: Current Issue No: 1 Date of Issue: 2022-03-29 Applicant: Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Straße 20, 37079 Göttingen Germany Paint mixing scale, type PMA35001-Y.. Equipment: Optional accessory: Type of Protection: Ex ec, Ex ic...
  • Page 31 Certificate No.: IECEx DEK 19.0004X Page 2 of 4 Date of issue: 2022-03-29 Issue No: 1 Manufacturer: Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Straße 20, 37079 Göttingen Germany Manufacturing Sartorius Lab Instruments GmbH & locations: Co. KG Otto-Brenner-Straße 20, 37079 Göttingen...
  • Page 32 IECEx Certificate of Conformity IECEx DEK 19.0004X Certificate No.: Page 3 of 4 Date of issue: 2022-03-29 Issue No: 1 EQUIPMENT: Equipment and systems covered by this Certificate are as follows: The Paint mixing scale, type PMA35001-Y.., consists of a weighing module in a painted aluminum enclosure, an interconnection cable and a remote display unit in a plastic enclosure.
  • Page 33 IECEx Certificate of Conformity IECEx DEK 19.0004X Certificate No.: Page 4 of 4 Date of issue: 2022-03-29 Issue No: 1 DETAILS OF CERTIFICATE CHANGES (for issues 1 and above) Assessment per IEC 60079-7 for protection Ex ec. Removal protection Ex nA.
  • Page 34 Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Strasse 20 37079 Goettingen, Germany Phone: +49 551 308 0 www.sartorius.com The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
