eNet radio switch/push-button actuator in SCHUKO housing
eNet radio switch/push-button actuator in SCHUKO housing
Art. no.: FMAS10ZS
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect the device from the socket outlet before carrying
out work on the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage. Even
when the device is switched off, mains voltage may be present on the load, because only 1 pole
is switched off.
Adapter plugs may not be connected in series and must be easily accessible.
The radio communication takes place via a non-exclusively available transmission path, and is
therefore not suitable for safety-related applications, such as emergency stop and emergency
call.
These instructions are an integral part of the product, and must remain with the end customer.
2

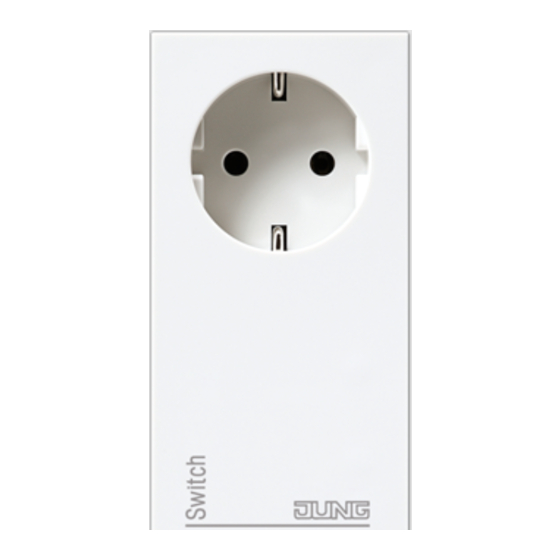

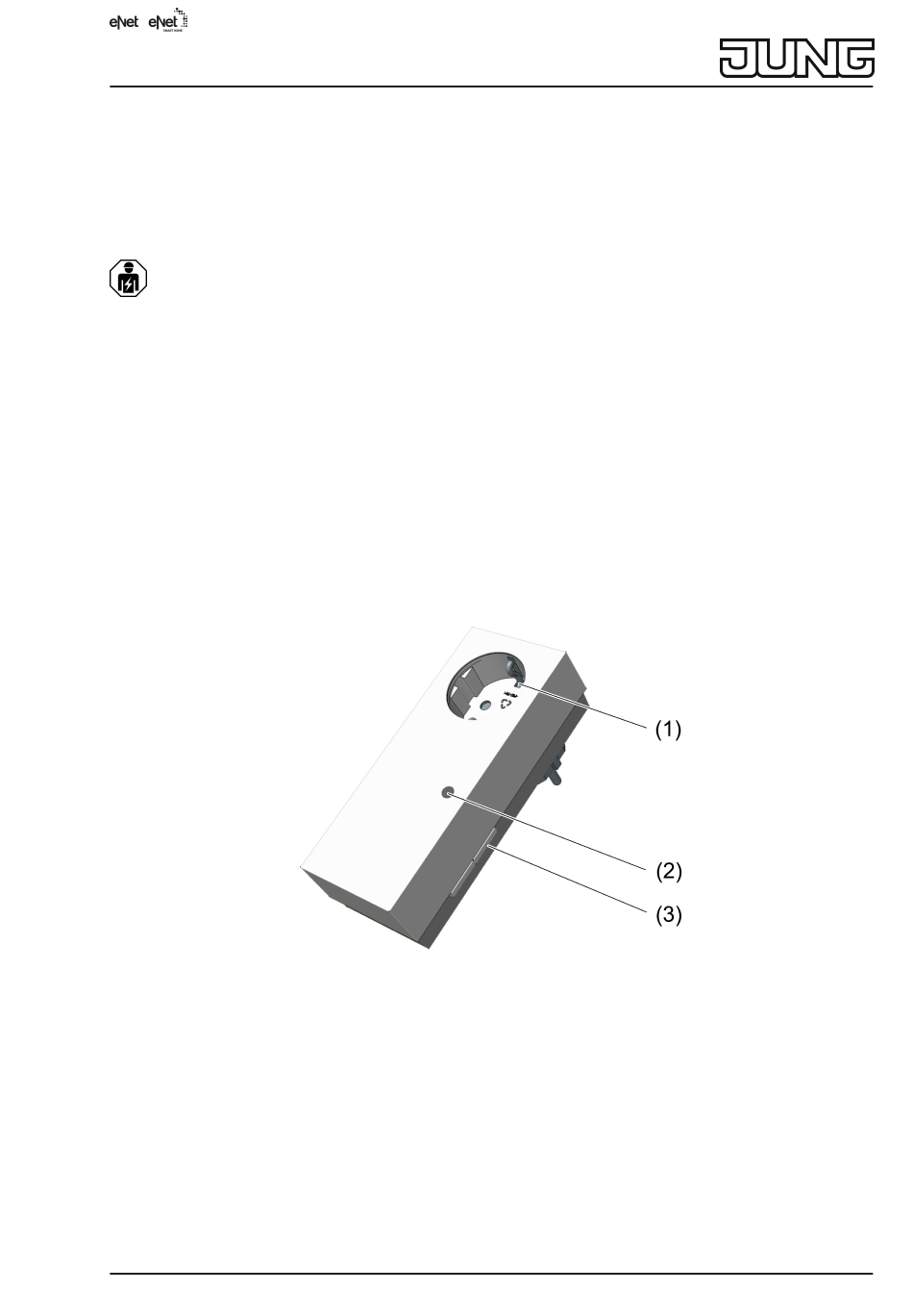

Device components
®
(1)
SCHUKO
socket with increased contact protection
(2)
Red status LED, covered
(3)
Button Prog
3
Intended use
–
Switching of lighting
–
Operation with suitable eNet radio transmitters
–
Receiving and repeating eNet radio telegrams (repeater function)
–
Indoor mounting in SCHUKO® socket or socket with ground pin
82592223
J0082592223
Figure 1
1 / 10
15.12.2020
