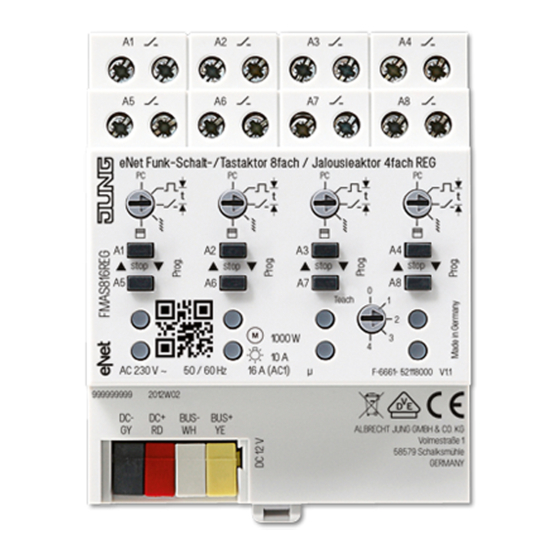

eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang,
for rail mounting
Art. No. : FMAS816REG
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Do not connect any three-phase motors. Device can be damaged.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
Danger of electric shock on the SELV/PELV installation. Do not connect loads for mains
voltage and SELV/PELV together on a single switch actuator.
For parallel connection of several motors to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
The motors may be destroyed.
Use only venetian blind motors with mechanical or electronic limit switches. Check the
limit switches for correct adjustment. Observe the specifications of the motor
manufacturers. Device can be damaged.
Fire hazard! Operation exclusively with the power supplies listed under accessories
These instructions are an integral part of the product, and must remain with the end
customer.

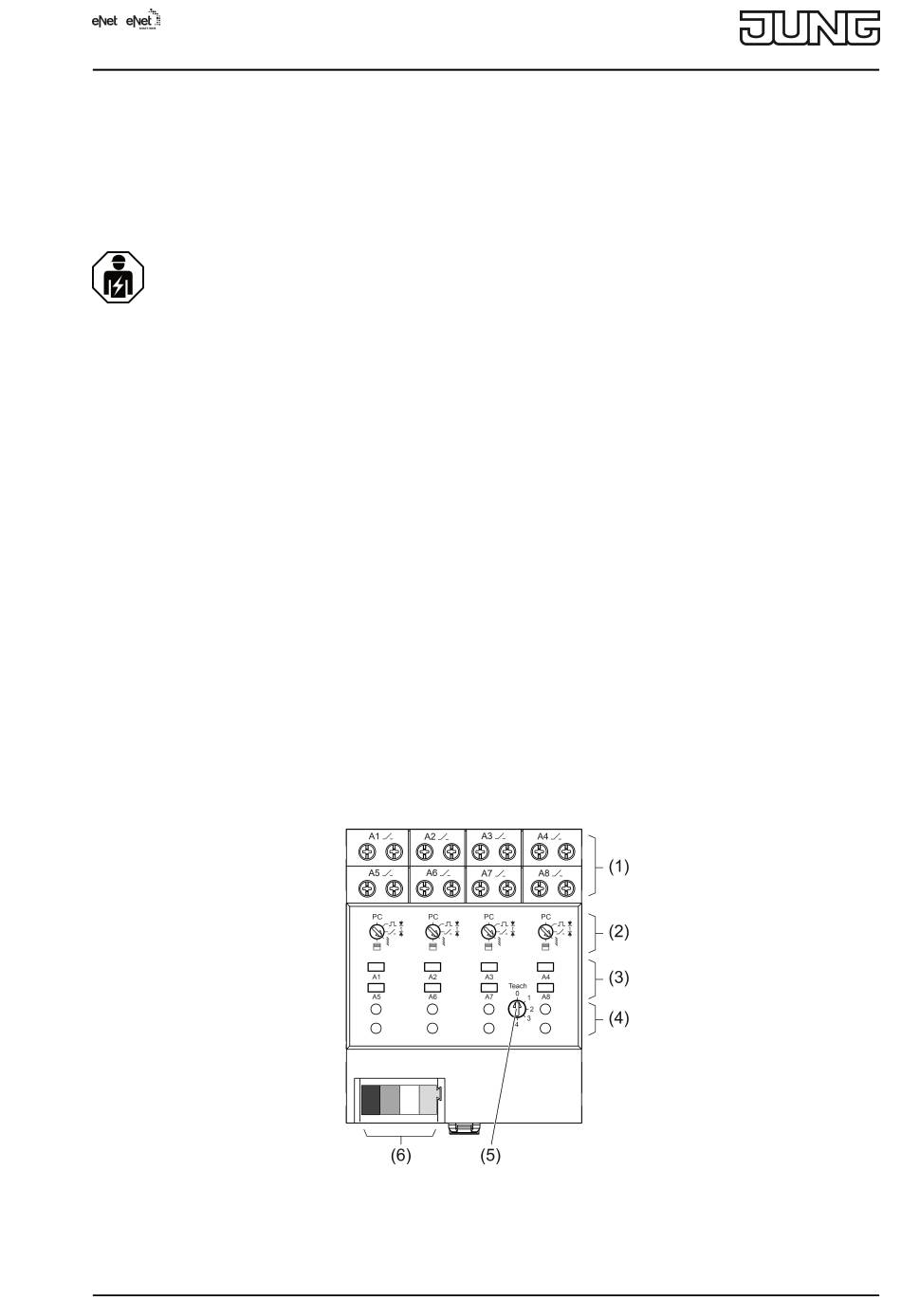

2 Device components
(1) Load connection A1...A8
(2) Operating mode switch for outputs A1+A5, A2+A6, A3+A7, A4+A8
82581933
J0082581933
Figure 1
1/20
23.03.2017
