Radio Management

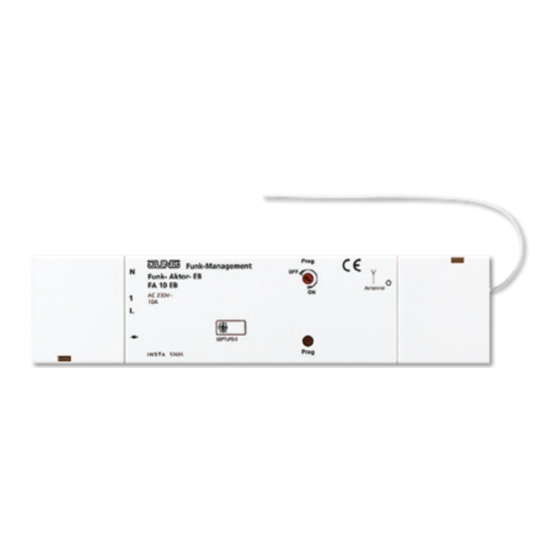

Radio switch actuator, built-in
Radio switch actuator, built-in
Art. No. : FA10EB
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect device before working on it. At the same
time, take into account all circuit breakers that supply dangerous voltage to the device.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
Do not shorten, extend or strip the antenna. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

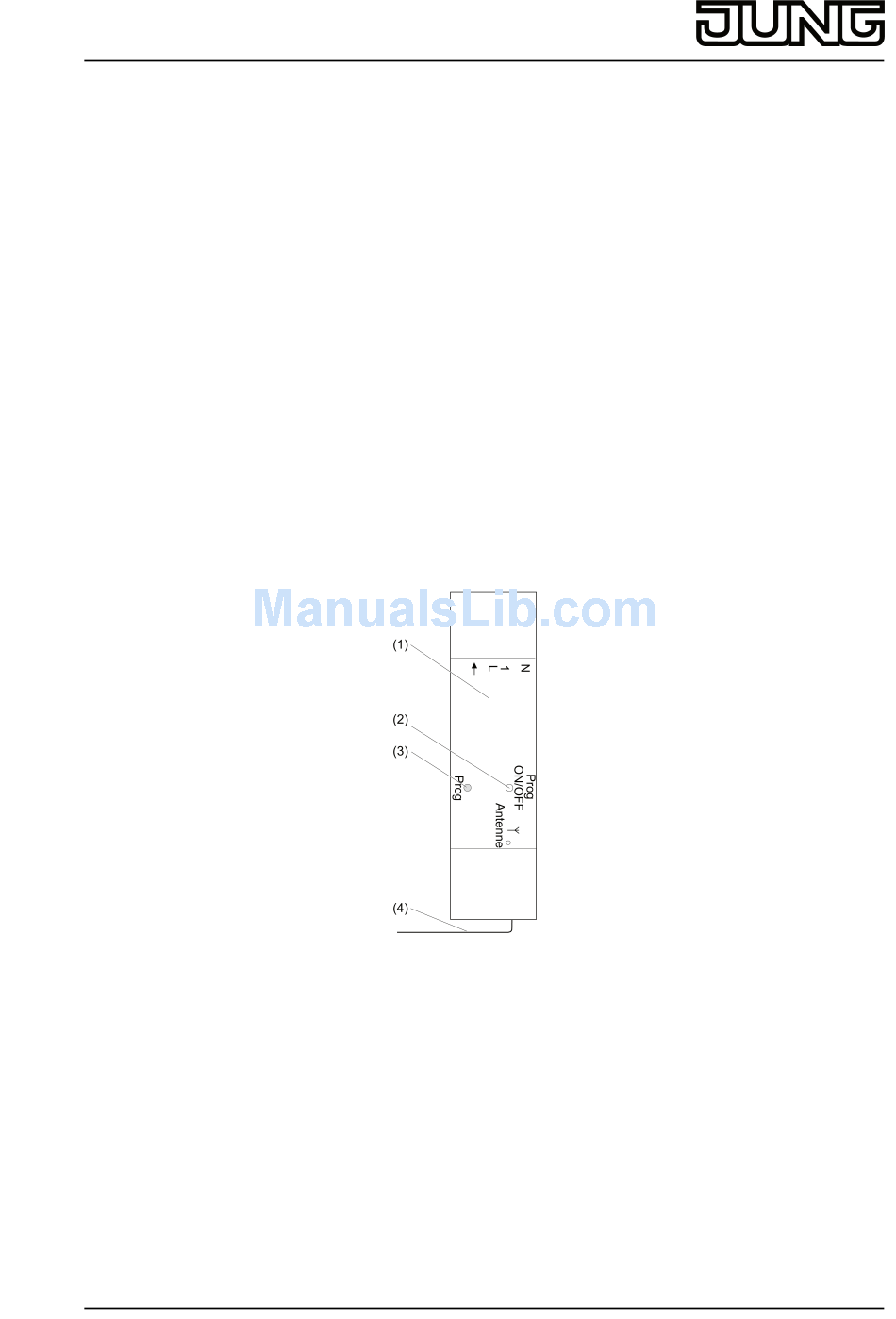

2 Device components
(1) Switch actuator
(2) Programming button
(3) LED
(4) Antenna
3 Function
System information
By statute, the transmitting power, the reception characteristics and the antenna cannot be
changed.
The range of a radio system from the transmitter to the receiver depends on various
circumstances.
82526923
J0082526923
Figure 1
1/5
09.09.2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung FA10EB
Summary of Contents for Jung FA10EB
-
Page 1: Safety Instructions
Radio Management Radio switch actuator, built-in Radio switch actuator, built-in Art. No. : FA10EB Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. - Page 2 Radio Management Radio switch actuator, built-in The range of the system can be optimised by selecting the optimal installation location, taking into account the structural circumstances. Figure 2: Reduced range due to structural obstacles Intended use Radio-controlled switching of incandescent lamps, fluorescent lamps, HV halogen lamps and Tronic or inductive transformers with halogen lamps Operation with suitable radio transmitters or with installation buttons as an extension Suitable for mixed operation up to the specified output (Technical data)
- Page 3 Radio Management Radio switch actuator, built-in Maintain a distance of at least 1 m between transmitter and receiver in order to prevent overmodulation of the receiver. Figure 3 Connect the switch actuator (1) and if necessary the installation button (5) in accordance with the connection diagram (figure 3).
-
Page 4: Technical Data
Check routing of antenna. Laying the antenna stretched out increases the range. Using a radio repeater. 6.3 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. FA10EB corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce... - Page 5 Radio Management Radio switch actuator, built-in ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82526923 09.09.2016 J0082526923...
