Radio Management

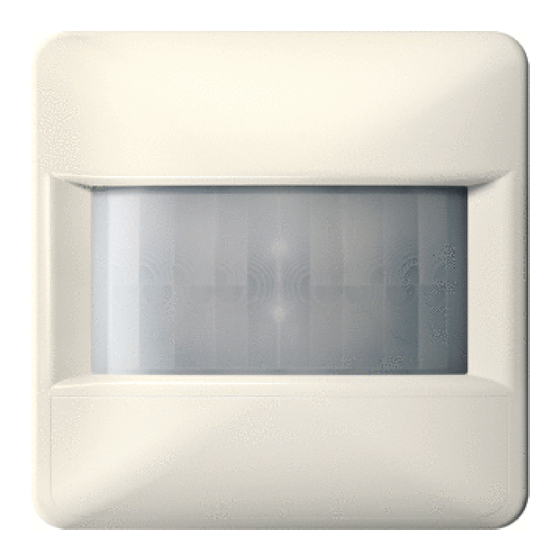

Radio automatic switch 180°
Radio automatic switch 180°
Art. No. : ..FAS180..
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
Keep button cells out of reach of children! If button cells are swallowed, get medical help
immediately.
Risk of explosion! Do not throw batteries into fire.
Risk of explosion! Do not recharge batteries.
These instructions are an integral part of the product, and must remain with the end
customer.

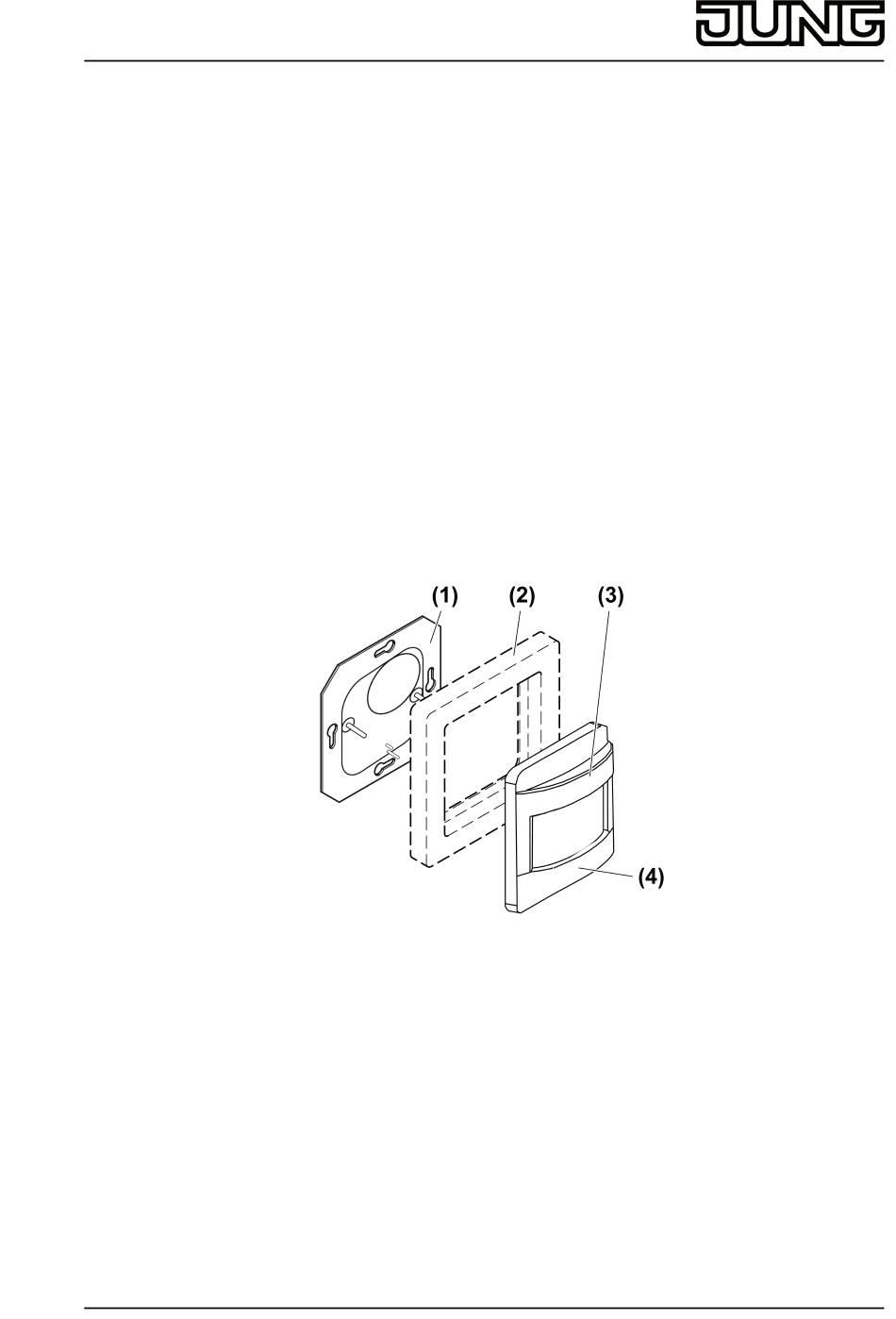

2 Device components
(1) Base plate
(2) Frame
(3) Radio motion detector
(4) Cover
3 Function
System information
By statute, the transmitting power, the reception characteristics and the antenna cannot be
changed.
The range of a radio system from the transmitter to the receiver depends on various
circumstances.
The range of the system can be optimised by selecting the optimal installation location, taking
into account the structural circumstances.
32552843
J0082552843
Figure 1
1/8
16.08.2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung FAS180 Series
Summary of Contents for Jung FAS180 Series
- Page 1 Radio Management Radio automatic switch 180° Radio automatic switch 180° Art. No. : ..FAS180.. Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. The radio communication takes place via a non-exclusively available transmission path, and is therefore not suitable for safety-related applications, such as emergency stop and emergency call.
- Page 2 Radio Management Radio automatic switch 180° Figure 2: Reduced range due to structural obstacles Example of penetration of various materials: Material Penetration Wood, Plaster, Plasterboard approx. 90% Brick, Chipboard approx. 70% Reinforced concrete approx. 30% Metal, Metal grid approx. 10% Rain, Snow approx.
- Page 3 Radio Management Radio automatic switch 180° 4 Information for electrically skilled persons 4.1 Fitting and electrical connection Selecting the installation location Figure 3: Detection planes At an installation height of 1.10 m the motion detector has a detection field with an aperture angle of 180°...
- Page 4 Radio Management Radio automatic switch 180° Figure 5: Installing the motion detector laterally to the direction of movement The motion detector can detect motions optimally if it is installed laterally to the direction of movement. Otherwise detection is likely to occur too late (figure 5). Do not touch the sensor window.
- Page 5 Radio Management Radio automatic switch 180° Changing the battery WARNING! Risk of chemical burns. Batteries can burst and leak. Replace batteries only with an identical or equivalent type. Carefully pull motion detector (3) with frame (2) off of the base plate (1) (figure 1). Figure 7: Remove battery Remove empty battery carefully using a screwdriver (figure 7).
- Page 6 Radio Management Radio automatic switch 180° i After the battery is inserted the red LED lights up for approx. 1 minute. After that the motion detector is in the walking test/teach mode for approx. 10 minutes (see chapter Teaching motion detector in radio receiver). This is displayed by rapid flashing of the LED. No actuator may be in programming mode during this time.
- Page 7 Radio Management Radio automatic switch 180° Use the brightness setpoint controller (7) to adjust the brightness setpoint: Symbol Moon: approx. 0 lux, Just before the Sun symbol end stop: approx. 80 lux, Sun symbol end stop: brightness-independent switching or daytime operation. The change in the setting is only applied when no motion is detected for 2 minutes.
- Page 8 Eliminate cause of the continuous motion. 5.3 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. ..FAS180.. corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
