Summary of Contents for Blizzard Lighting Torrent Keyframe 600

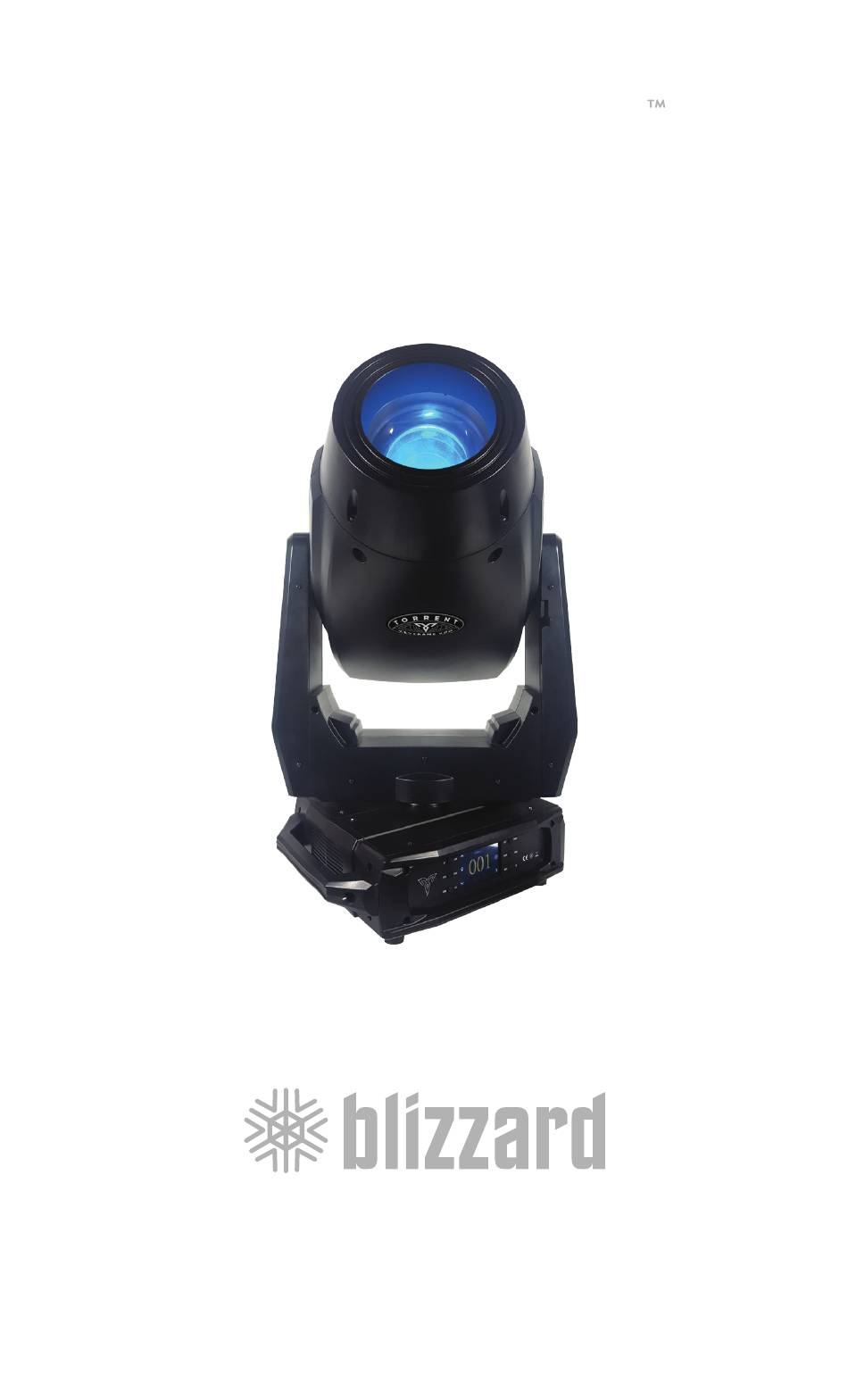

- Page 1 T O R R E N T K E Y F R A M E 6 0 0 Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2021...
-
Page 2: Table Of Contents
Main Features DMX Quick Reference (36/52-Channel Modes) Torrent™ Keyframe 600 Pin-Up Picture The Rear Connections 3. Setup Fuse Replacement Connecting A Bunch of Torrent Keyframe 600's DMX Connections Art-Net™ and sACN Mounting Points Clamp Mounting Securing the Fixture 4. Operating Adjustments... -
Page 3: Getting Started
Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardpro.com. -
Page 4: Safety Instructions
Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support. Page 4 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -
Page 5: Meet The Torrent™ Keyframe 600
Blade 1, Motor 2 (fine) CRI Filter Blade 2, Motor 1 CMY Macros Blade 2, Motor 1 (fine) CMY Macro Speed Blade 2, Motor 2 Control Functions Page 5 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -

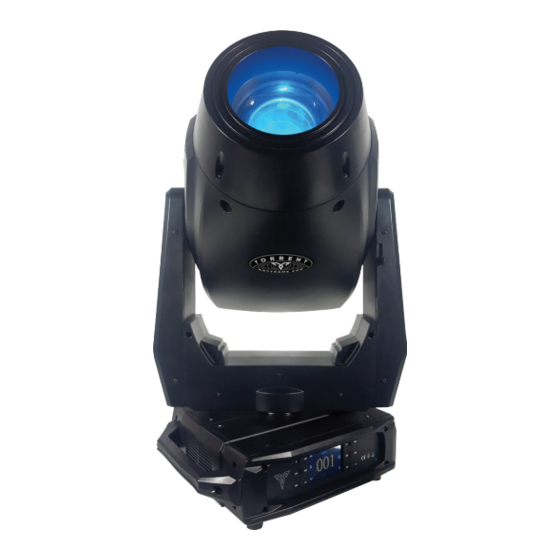

Page 6: Torrent™ Keyframe 600 Pin-Up Picture
The Rear Connections 3-Pin 5-Pin RJ45 Power Power DMX In DMX In Input Input Switch 3-Pin 5-Pin RJ45 Power Fuse DMX Out DMX Out Output Output Holder Page 6 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -
Page 7: Setup
Reattach the fuse holder, and then reconnect power. Connecting A Bunch of Torrent Keyframe 600's This fixture can receive DMX, Art-Net, or sCAN signals. It is equipped with both 3-pin and 5-pin DMX input/output, and RJ45 input/output connections. -
Page 8: Mounting Points
Please be aware, you should have a qualified electrician performing all of your electrical connection needs. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. Page 8 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -
Page 9: Clamp Mounting
Hang the fixture using the clamps and tighten. Fasten a safety cable through the bottom of the base, and over the support. Page 9 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
<MENU> button. Note: The screen invert settings of NO/YES or AUTO can be adjusted by navi- gating to Settings > Screen Reverse. Page 10 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
Error Info Fixture Hours Channel Information (shows all current values from input signals) Calibration Password: 3323. Hold menu key for 2s on the standby screen to reset. Page 11 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -
Page 12: Dmx Values In-Depth (36/52-Channel Modes)
146 <-> 149 Stop 150 <-> 231 Clockwise Rotation (fast <-> slow) 232 <-> 255 Gobo Rotation (bi-directional rainbow effect) 000 <-> 255 Fine Gobo Rotation (16-bit) Page 12 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... - Page 13 Automatic focus gobo wheel 2 (static) 128 <-> 255 Automatic focus gobo 1 wheel 1 (rotating) 000 <-> 255 Zoom (narrow <-> wide) 000 <-> 255 Fine Zoom (16-bit) Page 13 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC...
- Page 14 231 <-> 235 Dimming Curve 2 (Square Law) 236 <-> 240 Dimming Curve 3 (Inverse Square Law) 241 <-> 245 Dimming Curve 4 (S-Curve) 246 <-> 255 No function Page 14 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC...
-
Page 15: Gobo Replacement
Using a small tool, pry the tension ring from the gobo holder. Remove the old gobo, insert the new gobo, and replace using the reverse steps. Gobo holder Gobo Tension ring Rotating Gobos Static Gobos Page 15 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -
Page 16: Color Wheel
Fixed Gobo Wheel Fault R-SHORT Temp Short Circuit Fault Color Color Wheel Fault LED_HOT LED Overheat Fault Iris IRIS Fault BladeR Framing System Rotation Fault CYAN CMY Cyan Fault Page 16 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -
Page 17: Appendix
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 17 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -
Page 18: Tech Specs
Make sure all connectors are seated properly and securely. ing / Responding Use Only DMX Cables. Erratically Install a Terminator. Check all cables for defects. Reset fixture(s). Page 18 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... -
Page 19: Dimensional Drawings
5m fc 7m lux 7m fc 9m lux 9m fc 7° 84,545 7,854.5 29,165 2,709.6 14,705 1,366.2 8,564 795.7 40° 6,282 583.7 2,319 215.5 1,197 111.2 68.2 Page 19 Torrent™ Keyframe 600 - Rev. A © 2021 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
