Summary of Contents for Blizzard Lighting ProPar Seven.6

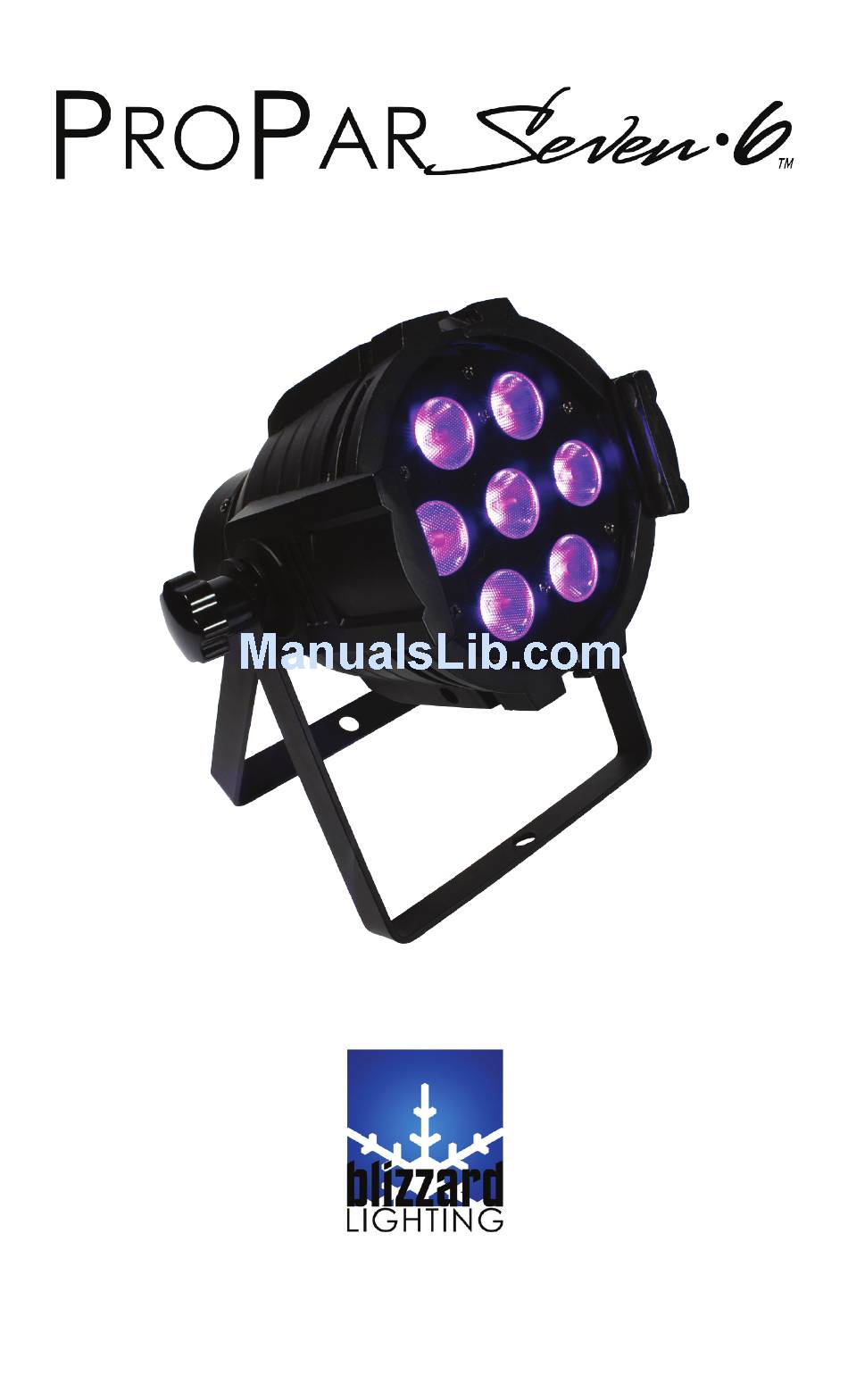

- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2014...
-
Page 2: Table Of Contents
Features DMX Quick Reference The ProPar Seven.6™ Pin-up Picture 3. Setup Fuse Replacement Connecting A Bunch Of ProPar Seven.6™ PAR Cans Data/DMX Cables Cable Connectors 3-Pin??? 5-Pin??? Huh? Take It To The Next Level: Setting up DMX Control Fixture Linking (Master/Slave Mode) Mounting/Rigging 4. -
Page 3: Propar Seven.6
Congratulations! The power of 6-in-1 RGBAW+UV color mixing is now all yours! So now that you’re the proud owner of a ProPar Seven.6™ (or hopefully, ProPars!), you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at www. blizzardlighting.com/tickets. Page 4 ProPAR 7.6 Manual Rev. -
Page 5: Meet The Propar Seven.6™ Led
2. MEET THE PROPAR SEVEN.6™ LED PAR MAIN FEATURES: • User selectable 3/5/8 or 11 DMX channels • Full color mixing in standalone, master/slave and DMX modes • Built-in automated programs via master/slave • Built-in sound activated programs via master/slave •... -
Page 6: The Propar Seven.6™ Pin-Up Picture
Figure 1: The ProPar Seven.6™ Pin-Up Picture Powder-Coated Cast Aluminum Enclosure 7x 6-in-1 RGBAW+UV Locking Knobs LEDs Dual Mounting Brackets Figure 2: The Rear Connections LED Menu Menu Display Buttons DMX In DMX Out Page 6 ProPAR 7.6 Manual Rev. A... -
Page 7: Setup
Should your ProPar Seven.6™ fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of ProPar Seven.6™ Fixtures You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in master/slave operating mode. -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 ProPAR 7.6 Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 ProPAR 7.6 Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All the goodies and different modes possible with the ProPar Seven.6™ LED are accessed by using the control panel on the rear of the fixture. There are 4 control buttons below the LED display which allow you to navigate through the various control panel menus. -
Page 11: Control Panel Menu Structure
Set max internal temperature (celsius) Global R/G/B/A/W/UV intensity, effects all curr modes Synchronous function LED display screen saver mode (0-30 Scrn seconds) rSEt Reset to factory default settings (Yes/No) Page 11 ProPAR 7.6 Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
4.) Using the <UP/DOWN> buttons, select the maximum level for each color between x.000-x.255 (000=off), then press <ENTER> to store your scene. 5.) Repeat this process up to 30 times for each of the 6 custom program banks. Page 12 ProPAR 7.6 Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 13: Custom Program Playback
5.) cUtP will display the current internal temperature, and toP will then allow you to set the maximum temperature allowed before the temperature protection cut off is initiated. Page 13 ProPAR 7.6 Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 14: Dmx Channel Values In-Depth
000 <--> 255 000 <--> 255 White Intensity (0% <--> 100%) UV Intensity (0% <--> 100%) 000 <--> 255 000 <--> 127 16-bit Dimmer 128 <--> 255 32-Bit Dimmer Page 14 ProPAR 7.6 Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 15: Troubleshooting
Verify proper mode of operation. Is the fixture in “Auto” mode? On Its Own If your problem isn’t listed, or if problems persist, please open a support ticket at www.blizzardlighting.com/tickets. Page 15 ProPAR 7.6 Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 16: Appendix
It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 16 ProPAR 7.6 Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 17: Keeping Your Propar Seven.6™ As Good As New
Keeping Your ProPar Seven.6™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 18: Tech Specs
Other Operating Modes Standalone, Master/Slave, Color Preset Other Information Have a great day. (Note: does not apply to my enemies). 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 18 ProPAR 7.6 Manual Rev. A © 2014 Blizzard Lighting, LLC... - Page 19 This page intentionally left blank.
- Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
