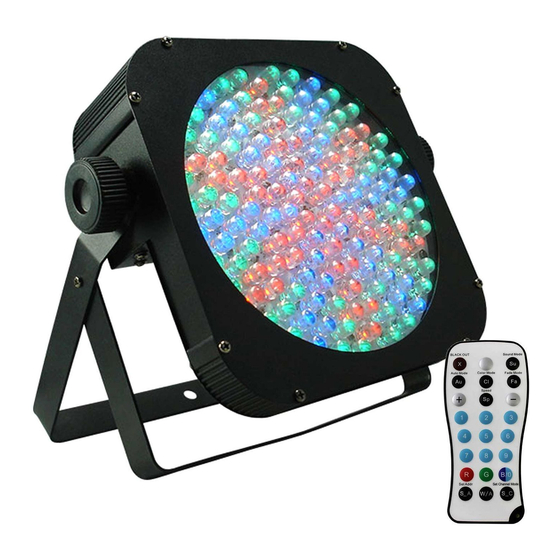

Summary of Contents for Blizzard Lighting Puck RGBAW

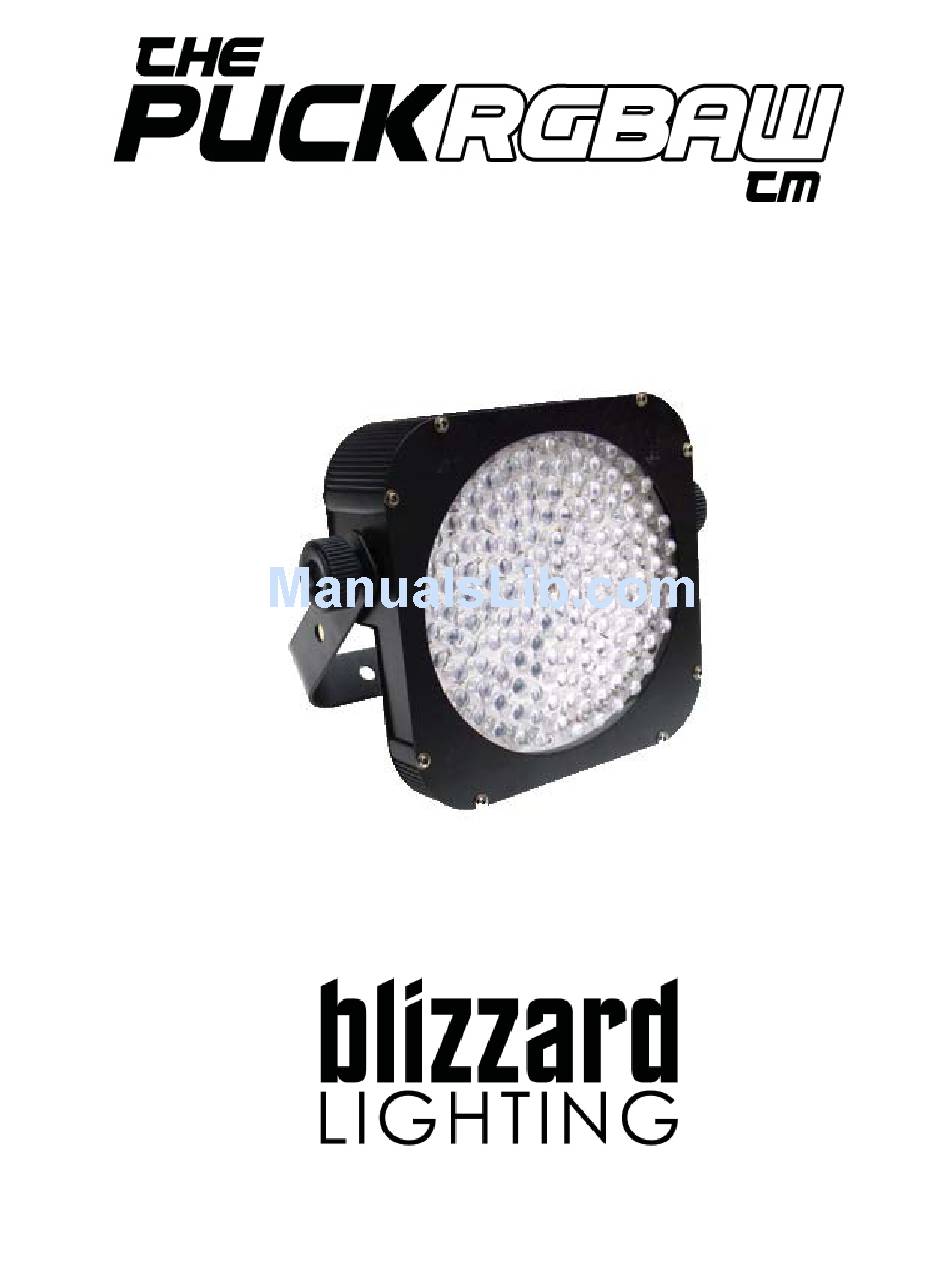

  • Page 1: The Puck™ Rgbaw Led Par Can

    Blizzard Lighting, LLC www.blizzardlighting.com Wisconsin, USA Copyright (c) 2011...

  • Page 2: Table Of Contents

    Menu Conventions Quick Tips & Tricks Troubleshooting 5. Appendix Keeping The Puck™ RGBAW LED PAR Can As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 3: Getting Started

    If something is wrong, just give us a call or send an email. We’ll be happy to help, honest. Blizzard Lighting W220 N1531 Jericho Ct. Suite E, Waukesha, WI 53186 USA support@blizzardlighting.com www.blizzardlighting.com 866-493-6025 Page 3 The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 The Puck RGBAW Manual Rev.

  • Page 5: Meet The Puck™ Rgbaw Led Par Can

    Snap Speed (0-15 off, 16-255 Snap Slow <--> Fast) Color Fade Fade Speed (0-15 off, 16-255 Snap Slow <--> Fast) Sound Active (0-127 off, 128-255 Sound Active) Page 5 The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 6: Dmx Quick Reference (3-Channel Mode)

    040-043 044-047 048-051 052-055 056-059 060-062 063-066 067-070 071-074 075-078 079-082 083-086 087-090 091-093 094-097 098-101 102-105 106-109 110-113 114-117 118-120 121-255 Chase (Slow <--> Fast) Page 6 The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 7: Dmx Quick Reference (5-Channel Mode)

    Figure 1: The Puck™ RGBAW Pin-Up Picture High Power Dual Mounting LEDs Yokes Figure 2: The Rear Connections DMX In DMX Out AC Power In/Out LED Control Panel Microphone Page 7 The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 8: Setup

    Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 8 The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 9: Operating Adjustments

    Red/Green/Blue intensity between 0 and 255, then hit <ENTER> to confi rm each color choice. CoL 15. 4.) Select Color preset mode as instructed above, then select then <ENTER> to confi rm. Page 9 The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 10: Fixture Running Hour Display

    = “AMBE,” Adjust Amber Intensity from 0 to 255. UhIt = “WHIT,” Adjust White Intensity from 0 to 255. FhrS = “FHRS,” Displays Fixture Running Hours tESt = “TEST," Test Mode. Page 10 The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 11: Quick Tips & Tricks

    ,” hit <ENTER>, select “ ,” hit SP 1 SP 8 <ENTER>, and select the speed by selecting “ ,”. 1 is the fastest, 8 is the slowest. Page 11 The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 12: Troubleshooting

    Verify proper mode of operation. Is the fi xture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 12 The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 13: Appendix

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 13 The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC...

  • Page 14: Tech Specs

    Other Operating Modes Color Preset, Standalone color mixing Might As Well Jump! 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 14 The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC...
  • Page 15 Page 15 The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC...
  • Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
