  • Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Copyright (c) 2012...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Getting Started 2. Meet The Torrent 90™ Spot 3. Setup 4. Operating Adjustments 5. Appendix...

  • Page 3: Getting Started

    Warning! Verify that the voltage select switch on your unit matches line voltage applied does not match the voltage indicated on the Getting A Hold Of Us If something is wrong, just give us a call or send an email. We’ll be happy to help, honest. Blizzard Lighting www.blizzardlighting.com...
  • Page 4 SAFETY INSTRUCTIONS Caution!

  • Page 5: Meet The Torrent 90™ Spot

    2. MEET THE TORRENT 90™ SPOT CONTROL FEATURES ADDITIONAL FEATURES DMX Quick Reference Channel What It Does Tilt Color...

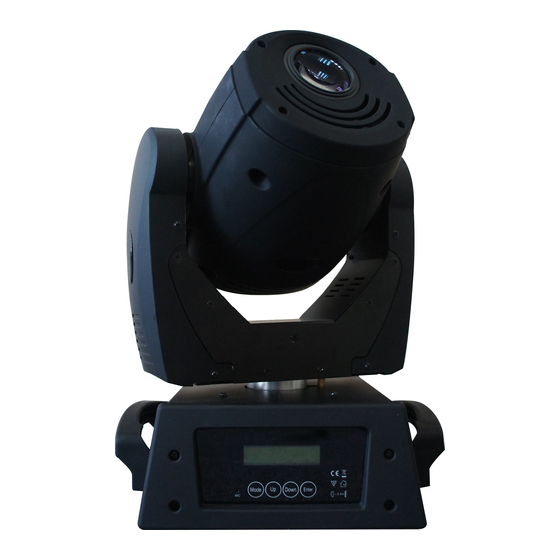

  • Page 6 Figure 1: The Torrent 90 Pin-Up Picture Figure 2: The Rear Connections...

  • Page 7: Setup

    3. SETUP Fuse Replacement Connecting A Bunch of Torrent 90’s™ Data/DMX Cabling 2-conductor twisted pair plus a shield Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft.
  • Page 8 Cable Connectors CAUTION: 3-Pin??? 5-Pin??? Huh?!? Conductor 3-Pin Female 5-Pin Male (Output) (Input) Pin 1 Pin 1 Pin 2 Pin 2 Take It To The Next Level: Setting Up DMX Control Step 1: Step 2: Note: Step 3:...
  • Page 9 Fixture Linking (Master/Slave Mode) A quick note: Operating Adjustments Mounting & Rigging...

  • Page 10: Operating Adjustments

    4. OPERATING ADJUSTMENTS The Control Panel <ENTER>. <UP> and <DOWN> <ENTER> <MODE>...
  • Page 11 Control Panel Menu Structure Main Function Sub Function Selection What It Does... DMX Address Auto Play Reset Reverse Pan Reverse Tilt Mic Sensitivity Special 2 Calibration...
  • Page 12 Control Panel Menu Structure (Continued) Main Function Sub Function Selection What It Does... Edit Program...
  • Page 13 Gobo Replacement...
  • Page 14 DMX Channel Values Channel Channel Value Does... Pan Fine Tilt Tilt Fine Color Color 1 Color 2 Gobo Wheel #1 Gobo 1 Gobo 2 Gobo Rotation Gobo Wheel #2 Gobo 1 Gobo 2 Strobe Dimmer Focus...
  • Page 15 DMX Channel Values (Continued) Prism Iris Pan/Tilt Speed Control (Hold Each for 5 Seconds to Set)
  • Page 16 Troubleshooting Symptom Solution raticly Lamp If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com.

  • Page 17: Appendix

    5. APPENDIX A Quick Lesson On DMX...
  • Page 18 Keeping Your Torrent 90 As Good As New Returns (Gasp!) Shipping Issues Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt.
  • Page 19 Tech Specs! Weight & Dimensions Power Light Source Optical Movement Range Tilt Thermal Control Protocol Coolness Factor Warranty...
  • Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
