Blizzard Lighting ToughPAR Fab5 User Manual

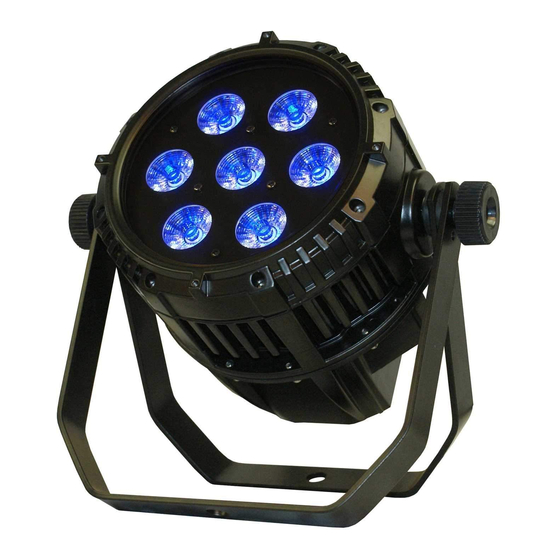

Professional led par fixture
Hide thumbs Also See for ToughPAR Fab5:
Table of Contents

Advertisement

Quick Links

See also: Manual
S
suitable for outdoor use
Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2012-13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ToughPAR Fab5 and is the answer not in the manual?

Questions and answers

Related Manuals for Blizzard Lighting ToughPAR Fab5

Summary of Contents for Blizzard Lighting ToughPAR Fab5

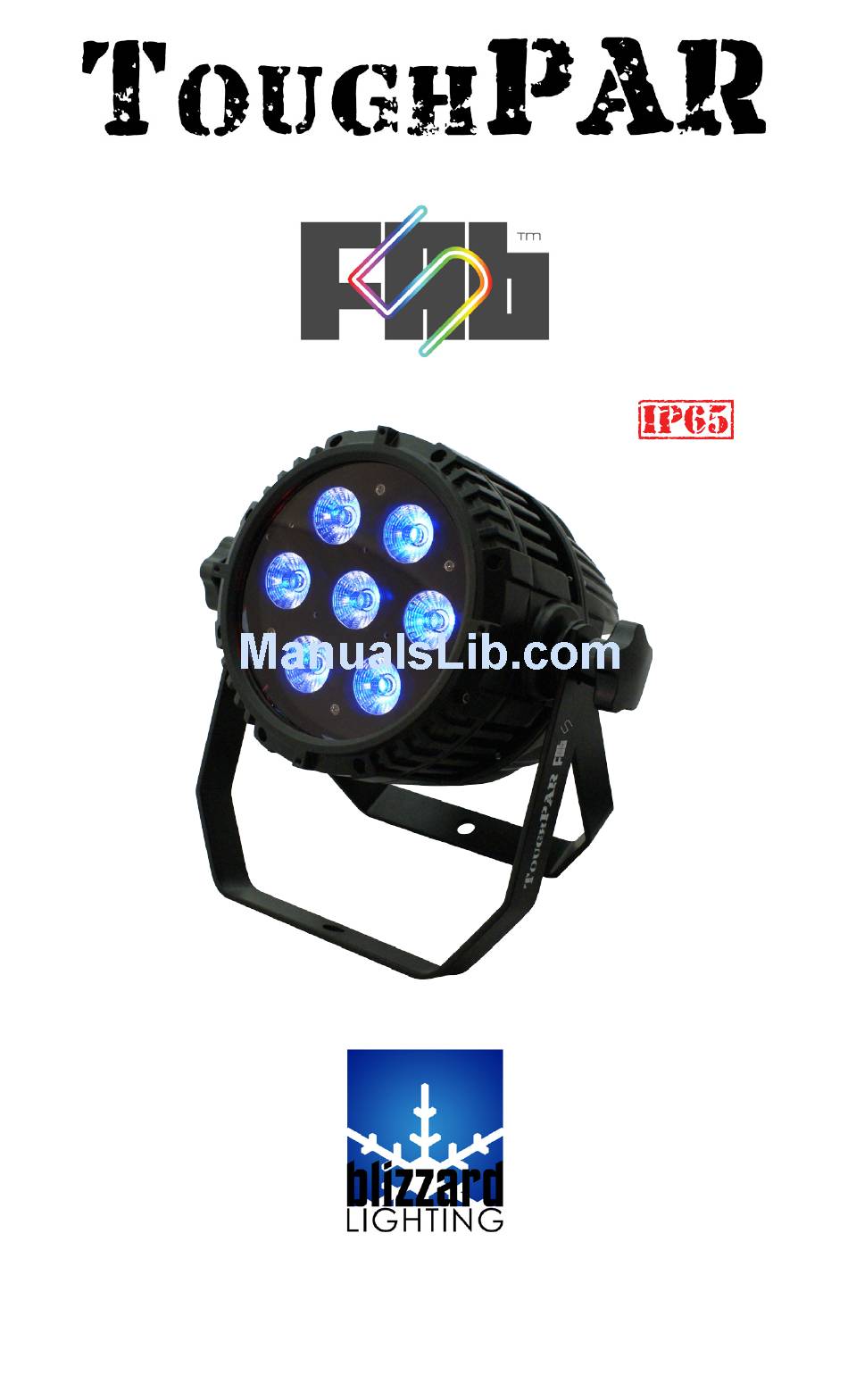

  • Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2012-13...

  • Page 2: Table Of Contents

    Static Color Display Automatic Programs Run Mode Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your ToughPAR™ Fab5 As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 3: Toughpar™ Fab5

    Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardlighting.com.

  • Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at support@blizzardlighting.com. Page 4 The ToughPAR Fab5 (s) Manual Rev.

  • Page 5: Meet The Toughpar™ Fab5 Led

    Light Source: 7* 15-watt, 5-in-1 RGBWA Quint-Color LEDs • Flicker-free constant-current LED driver CONTROL: • USITT DMX-512 (3/4/5/6/7/ 12-Channels) • 3-pin Input/Output • LED 4-button control panel Page 5 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 6: The Toughpar™ Fab5 Pin-Up Picture

    Adjustment/ Locking Knobs Tempered Glass Lens Cover IP65-Rated Cast Aluminum Enclosure Figure 2: The Rear Connections LED Control Panel DMX In DMX Out Power Linking Page 6 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 7: Setup

    The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should your ToughPAR™ Fab5 fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of ToughPAR™ Fab5 Fixtures...

  • Page 8: Cable Connectors

    Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 9: Fixture Linking (Master/Slave Mode)

    • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 10: Operating Adjustments

    Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 10 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 11: Control Panel Menu Structure

    000 - 255 RGBAW static color settings AUTO AT.01-AT.10 Factory program playback PR.01-PR.10 User program playback Sets the fixture to master/DMX mode SLAV Sets the fixture as slave Page 11 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 12: Dmx Mode

    Color temperature (also adjustable through the [CAL1] menu): 201~205: 3200K 206~210: 3400K 211~215: 4200K 216~220: 4900K 201<-->255 221~225: 5600K 226~230: 5900K 231~235: 6500K 236~240: 7200K 241~245: 8000K 246~250: 8500K 251~255: 10000K Page 12 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...
  • Page 13 000 <--> 255 Green Intensity (0% <--> 100%) 000 <--> 255 Blue Intensity (0% <--> 100%) 000 <--> 255 Amber Intensity (0% <--> 100%) 000 <--> 255 White Intensity (0% <--> 100%) Page 13 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 14: Id Address Selection

    Allows the user to set a temperature protection cutoff (default is 85 degrees Celsius), and displays the current fixture temperature. • CURR - Displays current temperature. • • TOP - Sets the max temperature before shutoff (0-150, 85=default). Page 14 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 15: Edit Programs & Scenes

    • REST Factory reset. Use this to reset the Puck Pro Zoom fixture back to its original factory installed settings. • Id Enables/disables ID address operation. Page 15 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 16: Color Temperature-Based White Balance

    <DOWN> buttons to change the desired value. Then push the <MENU> button to confirm your choice and return to the previous menu option. Each color has the adjustable values of 000 <--> 255 (0% <--> 100%). Page 16 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 17: Menu Key Protection

    This is where you set the fixture to either DMX/Master or Slave Mode • DMX - Set the fixture as the master • SLAV - Set the fixture as a slave Page 17 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 18: Troubleshooting

    Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 18 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 19: Appendix

    It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensible tool for any lighting designer or lighting performer. Page 19 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 20: Keeping Your Toughpar™ Fab5 As Good As New

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 20 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...

  • Page 21: Tech Specs

    Standalone, Master/Slave, Color Preset Other Information There’s 5 syllables in the word “monosyllabic”. 2-year limited warranty, does not cover malfunction caused Warranty by damage to LED’s. Page 21 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...
  • Page 22 This page intentionally left blank. Page 22 The ToughPAR Fab5 (s) Manual Rev. A © 2012-13 Blizzard Lighting, LLC...
  • Page 23 This page intentionally left blank.
  • Page 24 --the team @ blizzard lighting...
