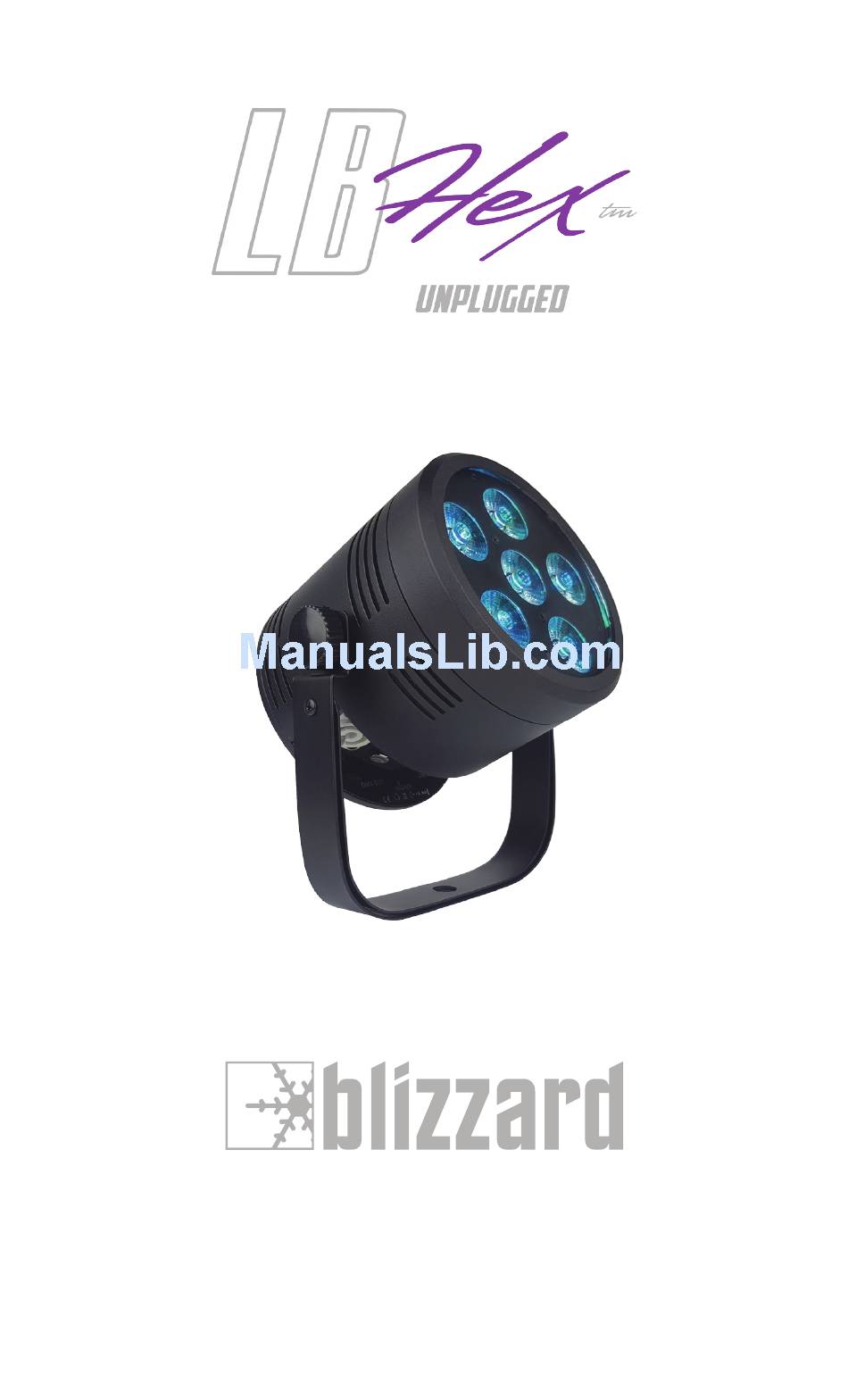

- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2018...
-
Page 2: Table Of Contents
Power Saving/Temperature Control DMX Channel Values In-Depth Troubleshooting 5. Appendix Keeping Your LB Hex™ Unplugged As Good As New Returns (Gasp!) Shipping Issues Tech Specs Dimensional Drawings Page 2 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... - Page 3 Under extreme temperature conditions damage may occur. Elevated temperatures in general shorten the life of your battery pack. Page 3 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC...
-
Page 4: Lb Hex™ Unplugged
We’ll be happy to help, honest. Disclaimer: The information and specifications contained in this document are subject to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 5: Safety Instructions
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www. blizzardlighting.com/support. Page 5 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 6: Meet The Lb Hex™ Unplugged
Amber Intensity (0% <-> 100%) UV Intensity (0% <-> 100%) White Intensity (0% <-> 100%) Strobe Effects Color Macros Color Presets Auto & Sound Active Auto Speed 32-bit Dimming Curves Page 6 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -

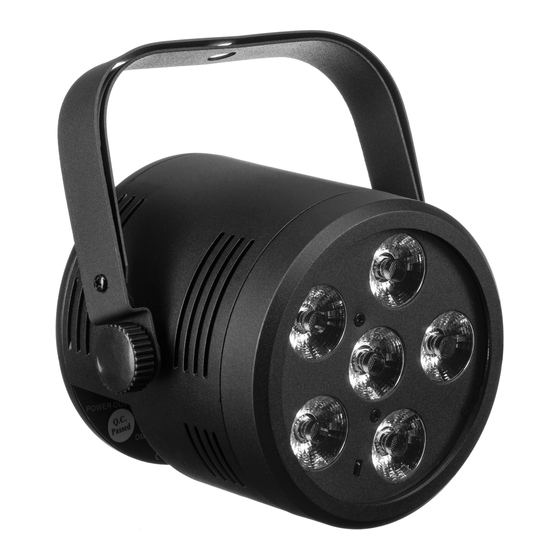

Page 7: The Lb Hex™ Unplugged Pin-Up Picture
Cast Aluminum Enclosure Locking Adjustment Knobs 6* 6-watt RGBAW+UV LEDs Figure 2: The Rear Connections Power Control Switch Menu Power In Power Out DMX In DMX Out Page 7 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 8: Setup
Data 1+ (Primary Data Link) Pin 3 Pin 3 Data 2- (Optional Secondary Data Link) Pin 4 Pin 4 Data 2+ (Optional Secondary Data Link) Pin 5 Pin 5 Page 8 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 9: Take It To The Next Level: Setting Up Dmx Control
Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixtures overhead. • Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humid- ity, extreme temperature changes or restricted ventilation. Page 9 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 10: Using The Intelion™ Battery System
® fixtures may cause damage to the wiCICLE or fixture. UNDER NO CIRCUM- ® STANCES IS BLIZZARD LIGHTING RESPONSIBLE FOR ANY DAMAGE FROM SUCH OPERATION. • Fixtures bearing the above logo MUST only use cable and connectors which separate chassis/case ground from cable shielding. Cabling with the shield con- nected to the connector’s case/chassis may cause malfunction and damage to the wiCICLE or fixture. -
Page 11: Operating Adjustments
<ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 11 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 12: Control Panel Menu Structure
Auto temperature control (reduces to 50% power at 75°C) TL-1 Half power TL-2 Full power Dimming Curves *See dimming curve ramp up/down times in the table above. Page 12 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 13: Dmx Channel Mode + Starting Address
75°C, TL-1 is constant half power, and TL-2 is constant full power. Press <ENTER> to confirm your choice. 4.) Press and hold <ENTER> for 5s to display the current temperature. Page 13 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 14: Using The Ir Remote Control
Press for auto color jump effects. Use the <UP/DOWN> buttons to adjust the speed. <FADE> Press for auto color fade effects. Use the <UP/DOWN> buttons to adjust the speed. <SOUND> Press for sound active mode. Use the <UP/DOWN> buttons to adjust the mic sensitivity. Page 14 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 15: Power Saving/Temperature Control
101 <--> 130 7-color Jump 131 <--> 160 R/G/B Jump 161 <--> 190 Yellow/Cyan/Magenta Jump 191 <--> 220 Sound Active Strobe 221 <--> 255 Sound Active Jump Page 15 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 16: Troubleshooting
Use only DMX cables or check cables for defects. cally Install a Terminator. Reset fixture(s). If your problem persists or isn’t listed, please open a support ticket online at: www.blizzardlighting.com/support. Page 16 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 17: Appendix
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 17 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 18: Tech Specs
Distance: Diameter: 17.7" (45 cm) 35.5" (90 cm) 53" (135 cm) 70.9" (180 cm) Luminous Intensity: 1-meter 2-meter 3-meter 4-meter Beam 25° 4,319 401.2 82.1 45.4 22.5 Page 18 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... -
Page 19: Dimensional Drawings
Dimensional Drawings 5.6 in (141 mm) 1.7 in (43 mm) 7 in (177 mm) Page 19 LB Hex™ Unplugged Manual Rev. A © 2018 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
