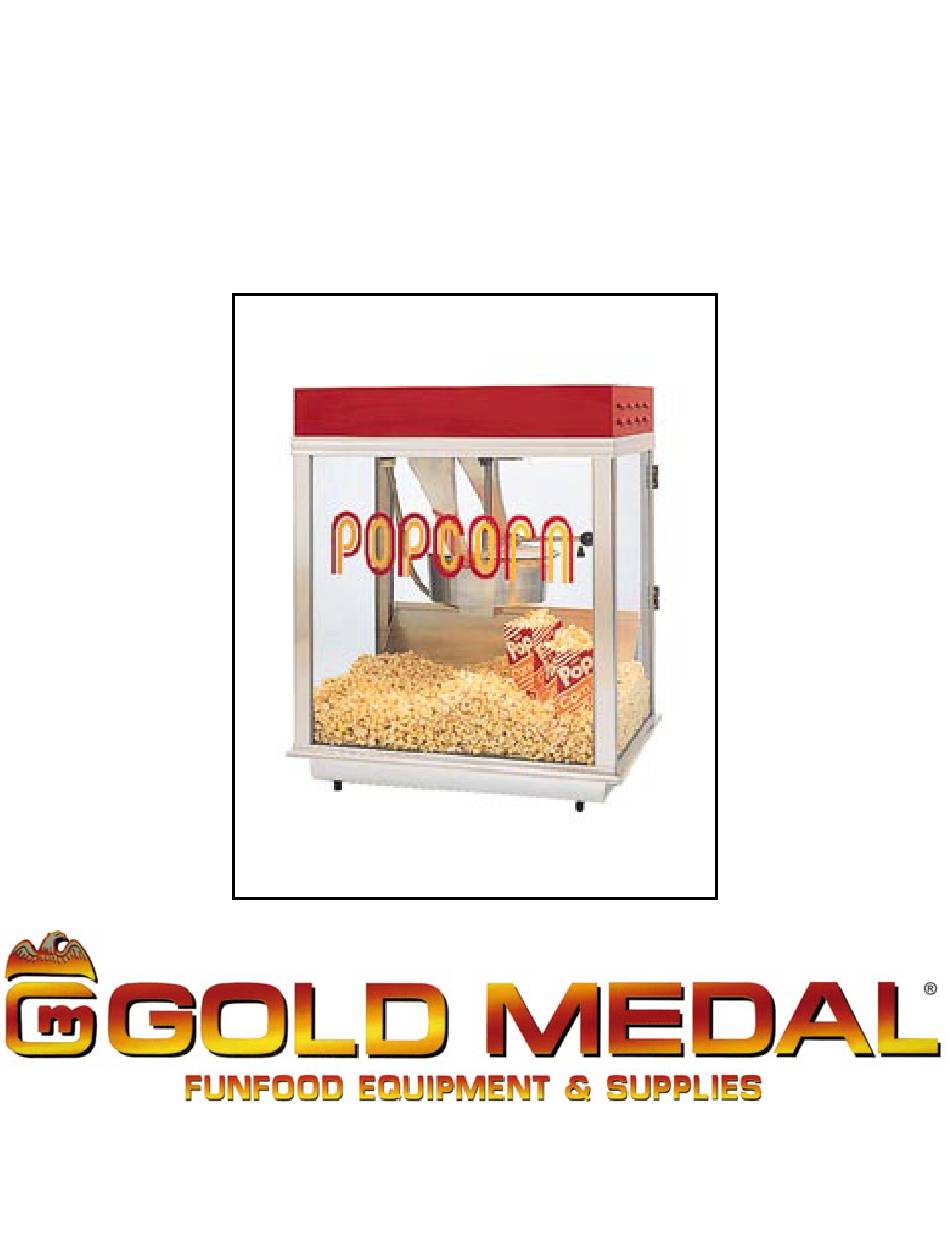

- Page 1 Econo–Pop Part No. 77598 Revised June 1996 Instruction Manual Model #2115 and Model #2121 Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 3: Operating Instructions
Standard voltage for Models #2115 and #2121 is 120 volts, 60 Hertz A.C., single phase current. Model #2115 requires a 15 amp circuit. Model #2121 requires a 20 amp circuit. A qualified electrician must furnish sufficient current for trouble free operation. -
Page 4: Care And Cleaning
To clean glass use any glass cleaner that is recommended for cutting grease. A wax cleaner such as Johnson’s SHINE UP may be used to clean the aluminum exterior. Be sure to remove the old maid pan to empty and clean it also. #2115 #2121 ODELS... -
Page 5: Maintenance Instructions
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 6 Econo-Pop CABINET ASSEMBLY ( without Kettle ) #2115 #2121 ODELS...
-
Page 7: Parts List - Cabinet Assembly
" x 15 ¼" x " (2) 47006 Drop Panel Welded 47727 Molded Receptacle 47653 Corn Pan Conduit Cover 47726 Molded Plug 44026 Strip Heater 75W (Warmer) 77076 Corn Pan Assy (Items 43, 44, 45 & 46) 87085 Lead-In Cord #2115 #2121 ODELS... - Page 8 Econo-Pop 14 Oz. KETTLE ASSEMBLY #2115 #2121 ODELS...
- Page 9 500W Heat Element 47090 1050W Heat Element 47216 Element Shunt Bar 47085 Element Retainer 47082 Thermostat (2) 47685 Thermostat Shunt Bar 47087 Thermostat Retainer 77066 Kettle Bottom Disc. 47393 Junction Box 47394 Junction Box Cover 77077 Kettle Lead Assembly #2115 #2121 ODELS...
- Page 10 Econo-Pop 8 Oz. KETTLE ASSEMBLY #2115 #2121 ODELS...
- Page 11 Kettle Lid Lifter 47120 Lid Lift Knob 47676 Thermostat 47081 Heat Element 1350W 47298 Element Retainer 47284 Kettle Stud -18 x 1 ½" 77068 Kettle Bottom Disc. 47393 Junction Box 47394 Junction Box Cover 77077 Kettle Lead Assembly #2115 #2121 ODELS...
-
Page 12: Electrical Schematic
Econo-Pop ELECTRICAL SCHEMATIC #2115 #2121 ODELS... -
Page 13: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
