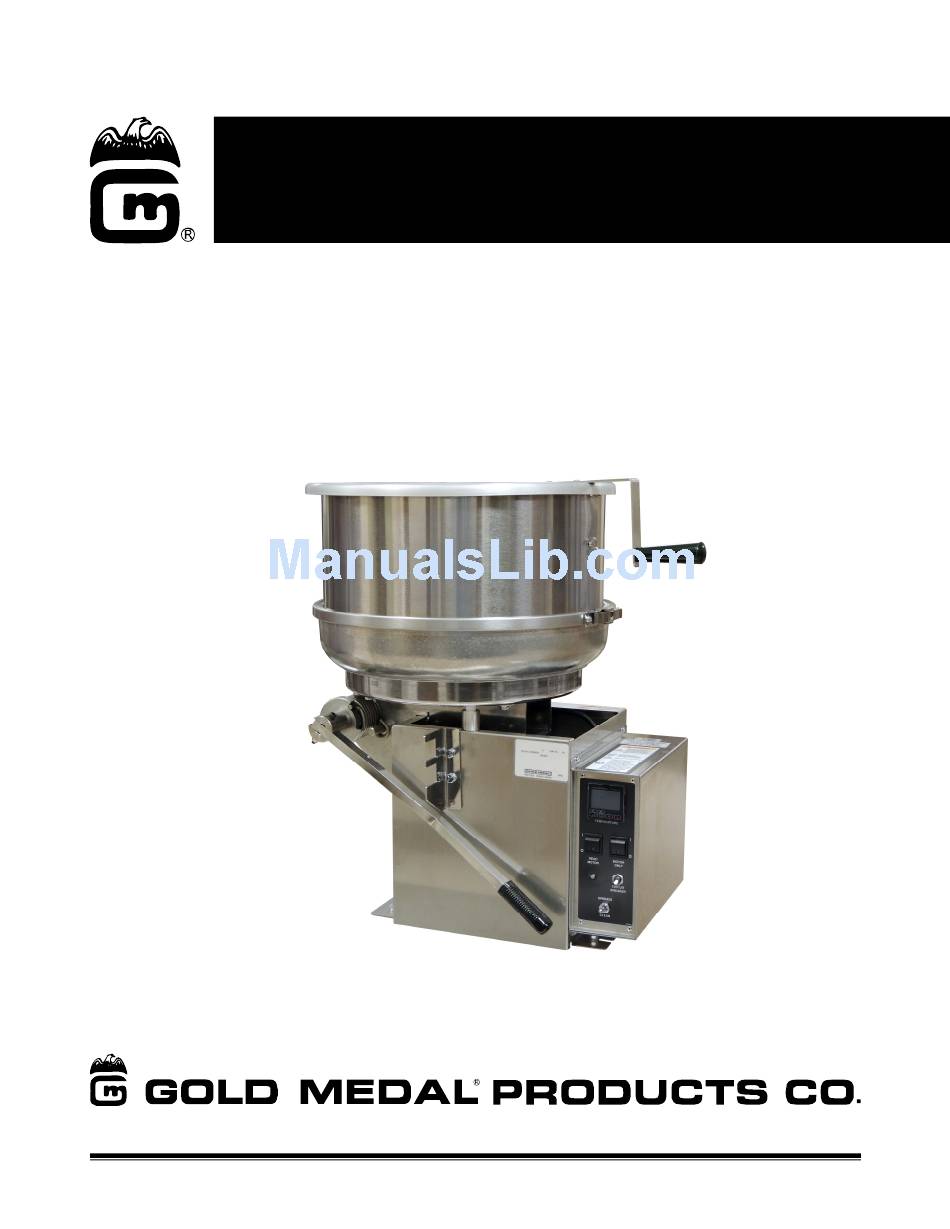

- Page 1 Instruction Manual Fudge Cooker/Mixer Model No. 2183-00-000 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2016 Gold Medal Products Co. Part No. 110134...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 4: Installation Instructions

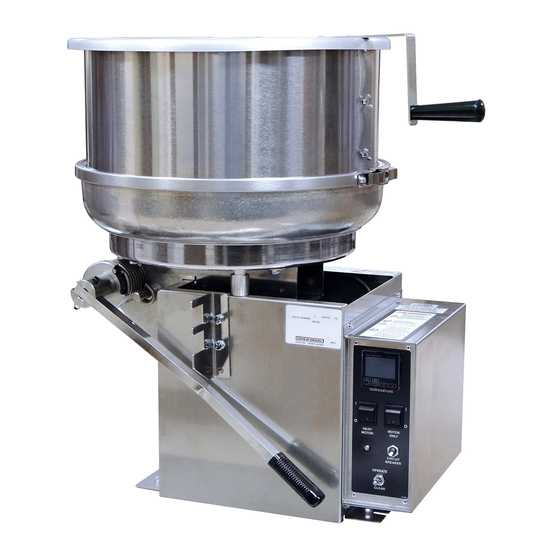

Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description 2183-00-000: 120 Volt Fudge Cooker/Mixer, Right Hand Dump, uses a 7 lb. dry fudge mix per batch, yields approximately 8 lbs. of fudge. Items Included with this Unit... - Page 5 Fudge Cooker/Mixer Model No. 2183-00-000 Setup 1. Remove all packaging and tape, and accessories before starting operation. 2. This unit must be properly fastened to a sturdy counter, see illustration below for counter mounting requirements. 3” Minimum Clearance 3” Minimum Clearance between Kettle and Wall.
- Page 6 Fudge Cooker/Mixer Model No. 2183-00-000 Fudge Mixer Paddle and Drum Assembly/Disassembly Items needed: Mixing Drum, Drum Seal, Retaining Ring, Fudge Paddle, (1) short Wing Bolt, Candy Thermometer. Follow the directions shown to assemble the paddle and mixing drum. 1. Slide the fudge paddle onto the agitator shaft and fasten in the top hole with a short wing bolt.
-
Page 7: Electrical Requirements
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com... -
Page 8: Operating Instructions
Fudge Cooker/Mixer Model No. 2183-00-000 OPERATING INSTRUCTIONS Controls and Their Functions HEAT/MOTOR SWITCH Two position, ON/OFF lighted rocker switch – provides power to the heating elements in the bottom of the kettle, and powers the mixing motor to turn for an allotted amount of time depending on what mode the unit is in. - Page 9 Fudge Cooker/Mixer Model No. 2183-00-000 DIGITAL HEAT CONTROL The Digital Heat Control adjusts the set point temperature of the unit for making fudge. Operate Mode: In Operate mode, the Heat Control “set point temperature” is factory preset to 185°F. This is the temperature needed to achieve an approximate “Product Temperature”...
- Page 10 (takes approx. 12-15 minutes once all ingredients have been added and initially mixed in). In order to achieve this product temperature the digital control on Gold Medal’s Fudge Machine should be set at 185°F. *It is important to note that due to variations in your electrical current, as well as what type of fudge you are making and what type of inclusions or add-ins you may be using, optimum product temperatures may be slightly higher or slightly lower than 160°F.
- Page 11 Fudge Cooker/Mixer Model No. 2183-00-000 Making Fudge The fudge cooker mixer is designed to use 7 lbs. dry mix per batch. A batch yields approximately 8 lbs. of fudge (use a 9” x 13” x 2” cake pan). Reference instructions below for water amounts to make a chocolate, vanilla, or base mix, and for butter amounts (butter may be salted or unsalted).
- Page 12 Fudge Cooker/Mixer Model No. 2183-00-000 achieve this product temperature the digital control on Gold Medal’s Fudge Machine should be set at 185°F. *It is important to note that due to variations in your electrical current, as well as what type of fudge you are making and what type of inclusions or add-ins you may be using, optimum product temperatures may be slightly higher or slightly lower than 160 degrees.
-
Page 13: Care And Cleaning
Fudge Cooker/Mixer Model No. 2183-00-000 Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. Always unplug the equipment before cleaning or servicing. 025_020314 WARNING To avoid serious burns, DO NOT touch the kettle while it is hot! - Page 14 7. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine.
- Page 15 Fudge Cooker/Mixer Model No. 2183-00-000 Hub Seal and Paddle Assembly Agitator Shaft Wing Bolt (Mixing Paddle Oil Seal Lock Stud) Hub Body Mixing Paddle O-Ring Hub Seal Assembly (Includes Oil Seal, O-Ring, and Hub Body) gmpopcorn.com Page 15...
-
Page 16: Troubleshooting
Fudge Cooker/Mixer Model No. 2183-00-000 Troubleshooting Issue Possible Cause Solution Kettle Does Not Heat A. Power to Unit A. Make sure the unit lead-in cord is plugged in. B. Circuit Breaker B. Check the condition of the circuit breaker. The... - Page 17 Fudge Cooker/Mixer Model No. 2183-00-000 New Paddle/Hub Seal Kit Installation Kettle Shaft Maintenance 1. With the machine OFF, unplug unit from the power source and allow it to cool. 2. Loosen the wing bolt lock stud and remove the mix paddle.
-
Page 18: Maintenance Instructions
Fudge Cooker/Mixer Model No. 2183-00-000 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 19: Ordering Spare Parts
Fudge Cooker/Mixer Model No. 2183-00-000 ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. 2. Use only approved replacement parts when servicing this unit. 3. When ordering, please include part number, part name, and quantity needed. - Page 20 Fudge Cooker/Mixer Model No. 2183-00-000 Cabinet Exterior – Parts Breakdown See Kettle sections for parts breakdown. See Safety Labels Section. 5, 6 See Control Panel Data Section for Parts Plate Breakdown. Part Number Item Part Description 2183-00-000 LID ASSEMBLY (includes handle)
- Page 21 NOTE: Concave side of *Large Spacer fits up against bracket weld on Dump Bar Shaft. ** CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard.
- Page 22 Fudge Cooker/Mixer Model No. 2183-00-000 Cabinet Exterior/Spring Assembly – Parts List Part Number Item Part Description 2183-00-000 CONNECTOR 90 DEGREE 46241 BUSHING CONDUIT, 9/16 OD 41253NM 1/2 IN. CONNECTOR FITTING 41252 CONDUIT SHIM (brass shim) 82262 9/16" FLEXIBLE CONDUIT 82252-28...
- Page 23 Fudge Cooker/Mixer Model No. 2183-00-000 Kettle and Drum – Parts Breakdown *Hub Seal Assembly (Includes Oil Seal, Hub Body, and O-Ring) For Key, see Kettle Bottom/ Motor Mount Parts Breakdown section) gmpopcorn.com Page 23...
- Page 24 Fudge Cooker/Mixer Model No. 2183-00-000 Kettle and Drum – Parts List Part Number Item Part Description 2183-00-000 DRUM FIX PLT ASM 2 STUDS 101319 WING NUT, #8-32 89126 MIXING DRUM 101306 MIX PADDLE ASSEMBLY (includes scraper, 101307 retainer, and wing nuts for retainer)
- Page 25 Fudge Cooker/Mixer Model No. 2183-00-000 Kettle Bottom Plate/Motor Mount – Parts Breakdown 4, 5 See Exterior Cabinet Assembly section for kettle lead-in parts breakdown. 12, 13 Strain Relief (not shown) 15, 5, 16 on cord end to Control Box. gmpopcorn.com...
- Page 26 Fudge Cooker/Mixer Model No. 2183-00-000 Kettle and Drum – Parts List Part Number Item Part Description 2183-00-000 KETTLE ASSY (includes Shaft, Hub Seal Assy, Retaining Ring and Drum Seal; also see Kettle 68007G Bottom and Kettle Element View sections for itemized parts breakdown).
- Page 27 Fudge Cooker/Mixer Model No. 2183-00-000 Kettle Element View 8, 9 *Bottom Bushing Shown 2*, 3, 4 Part Number Item Part Description 2183-00-000 KETTLE, CORN TREAT CENTER (includes 46280 bushings shown below) BUSHING, MIX BOWL (bottom bushing shown) 46065PMO BUSHING, MIX BOWL (top bushing not shown;...
- Page 28 Fudge Cooker/Mixer Model No. 2183-00-000 Digital Control Panel – Parts Breakdown Digital Control Panel Interior Digital Control Panel Exterior View gmpopcorn.com Page 28...
- Page 29 Fudge Cooker/Mixer Model No. 2183-00-000 Digital Control Panel – Parts Breakdown Part Number Item Part Description 2183-00-000 DIGITAL CONTRL BOX ASSY (includes support 55538 and cover) HEAT CONTROL 2 SET PTS 55506 SWITCH, ROCKER DPDT LGHT 48616 CIRCUIT BREAKER 15 AMP...
-
Page 30: Wiring Diagram
Fudge Cooker/Mixer Model No. 2183-00-000 Wiring Diagram Model No. 2183-00-000 gmpopcorn.com Page 30... - Page 31 © 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
