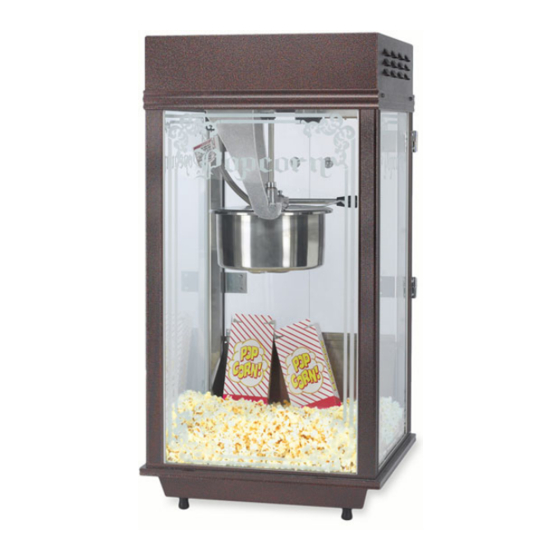

- Page 1 Instruction Manual Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Model 2147 Model 2131 Model 2152 Model 2452 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2017 Gold Medal Products Co. Part No. 77599...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 SAFETY PRECAUTIONS (continued) WARNING DO NOT allow direct contact of this equipment by the public when used in food service locations. Only personnel trained and experienced in the equipment operation may operate this equipment.
-
Page 4: Inspection Of Shipment
Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). Manual Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1‐(800)‐543‐0862. Model Series Description Reference the Electrical Requirements section for power supply information. 2131: Antique Pinto Pop ‐ 8 oz. kettle, unit is equipped with a PowerOff Control feature 2147: Deluxe Pinto Pop ‐ 8 oz. kettle, copper vein color, unit is equipped with a PowerOff Control feature 2152: Bronco Pop ‐ 8 oz. kettle, red top, unit is equipped with a PowerOff Control feature 2152ST: Bronco Pop ‐ 8 oz. kettle, stainless steel top, unit is equipped with a PowerOff Control feature 2452: Ultimate Bronco Pop ‐ 8 oz. kettle, stainless steel top with LED lighted sign, unit is equipped with a PowerOff Control feature 2452‐00‐002: Ultimate Bronco Pop ‐ Back Counter unit, 8 oz. kettle, stainless steel top with LED lighted sign, unit is equipped with a PowerOff Control feature 2131XJ: Export Antique Pinto Pop (100V Model) ‐ 8 oz. kettle, and LED cabinet lighting... -
Page 5: Items Included With This Unit
Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Items Included with this Unit Bulb for Cabinet Interior (if equipped) Aluminum Oil Measure Measure Corn Measure Scoop 6.5CC 1/3 Cup One Cup Black Crutch Tips Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. Place the unit on a sturdy, level base. 3. The popper unit has 4 glide feet preinstalled at the factory. Install a Black Crutch Tip on each of the 4 glide feet. Firmly push the crutch tip over the glide until it covers the glide entirely. 4. The door knobs are shipped facing the inside of the machine. Re‐adjust the knobs to face the outside of the machine. 5. Units equipped with a light bulb ‐ carefully install the light bulb (do not over‐tighten) into the lamp holder located in the cabinet interior. Ensure the unit is OFF and unplugged before installing or changing the bulb (reference the Electrical Requirements section). -
Page 6: Electrical Requirements
3. The wall outlet must have the proper polarity. If in doubt, have a competent electrician inspect the outlet and correct if necessary. 4. DO NOT use a grounded to un‐grounded receptacle adapter (where applicable). 5. Install the unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com Page 6... -
Page 7: Controls And Their Functions
Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 OPERATING INSTRUCTIONS Controls and Their Functions KETTLE HEAT SWITCH Two position, ON/OFF switch ‐ supplies power to the heating elements in the popping kettle. When the indicator light is ON, there is power to the Kettle (red indicator light is used for toggle switch models; the green switch light is used for rocker switch models). KETTLE MOTOR SWITCH Two position, ON/OFF switch ‐ supplies power to the kettle agitator motor. The Kettle Motor Switch MUST be ON at all times when there is popcorn (popped or un‐popped) in the kettle. LIGHTS/WARMER SWITCH Two position, ON/OFF switch ‐ supplies power to the popcorn sign (if equipped), interior cabinet light, and heat element for the corn pan. Kettle Heat Kettle Heat Light/Warmer Kettle Heat Light/Warmer Light/Warmer Red Indicator Kettle Motor Kettle Motor Kettle Motor Light Rocker Switch Controls Rocker Switch Controls Toggle Switch Controls (Models 2147, 2152, 2452 Series) (Model 2131 Series) -
Page 8: Amount Of Popcorn And Oil
Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Popping Corn This section describes instructions for popping Standard (salted popcorn). Amount of Popcorn and Oil Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in your kettle like other oils. Use only top quality, fresh popcorn from reputable suppliers. Ingredient amounts for popping Standard Popcorn: Kettle Size Popcorn Charge Oil Charge Flavacol (Salt) 8 oz. 8 oz. (237 ml) 1/3 cup (79 ml) 3/4 Tblsp. (10cc) For best results use Mega‐Pop 8 oz. premeasured pouches (Item# 2838). ® Popping Standard (Salted) Popcorn 1. Turn the Lights/Warmer, Kettle Heat and Kettle Motor Switches ON. 2. To determine when the kettle is ready to pop corn (about 4 minutes), test pop three kernels of corn and one ounce (30 ml) of popping oil. When the kernels pop, the kettle is ready for use. -
Page 9: Care And Cleaning
Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. DO NOT clean appliance with a water jet. Always unplug the equipment before cleaning or servicing. - Page 10 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Daily Unit Cleaning Instructions 1. With the machine OFF, unplug the unit and allow it to cool before attempting to clean. 2. Make sure to clean all pans/accessories in order to sanitize them before each use. 3. Take a clean, SLIGHTLY damp cloth and wipe excess grease from the glass and cabinet. 4. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage the plastic doors. Use only non‐ammonia cleaners, such as Gold Medal Watchdog Glass Cleaner (Item No. 2588). gmpopcorn.com Page 10...
-
Page 11: Troubleshooting
Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Troubleshooting Issue Possible Cause Solution No Power to the Unit A. No Power to the Unit A. Make sure the unit’s power cord is plugged in. Kettle Does Not Heat A. Power to the Kettle A. Make sure kettle lead‐in cord is plugged in and twisted to lock into the kettle receptacle. B. Kettle Heat Switch B. Have a qualified service person check the voltage to and from the Kettle Heat Switch; if switch is defective, replace it. C. PowerOff Control (if C. Units with the PowerOff Control feature, kettle equipped) heat will automatically shut OFF after 15 minutes of idle time (no popcorn popped). The small green neon light in the Kettle Heat Switch will blink OFF‐ON to indicate the kettle has been automatically turned OFF. - Page 12 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Issue Possible Cause Solution B. Kettle Agitator Shaft/Stir B. If the kettle agitator shaft is not rotating, Blade not rotating. (Unit DO NOT pop corn. must be OFF, unplugged a. Kettles with a FLOATING Stir Rod – lift and cool prior to the agitator weight and check the clearance checking or adjusting between the shaft and the kettle bottom; it the agitator assembly.) should be a minimum of 1/32” (thickness of a dime). To make shaft adjustments, reference the Agitator Set Collar Adjustment section. gmpopcorn.com Page 12...
- Page 13 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a floating stir rod. Agitator Assembly with a FLOATING Stir Rod Steps to Adjust Set Collars Gear Block Needle Bearing Step 1: Turn machine OFF, unplug unit, and (should set at least allow it to cool completely before attempting halfway into Gear Block) to adjust the agitator height. Step 2: Loosen the set screw in each set collar Agitator’s Spur Gear to be adjusted. (should set halfway up on Drive Motor Drive Motor Spur Gear) Spur Gear Step 3: With the kettle mounted in the popper, adjust the shaft so the Spur Gears are halfway engaged, and the Needle Bearing is at least halfway engaged in the gear block (reference image at right).
-
Page 14: Maintenance Instructions
Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 15: Ordering Spare Parts
Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. (General images may be used in manual for reference only.) 2. Use only approved replacement parts when servicing this unit. 3. When ordering, please include part number, part name, and quantity needed. 4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241‐4807 Or, place orders by phone or online: Phone: (800) 543‐0862 (513) 769‐7676 Fax: (800) 542‐1496 (513) 769‐8500 E‐mail: info@gmpopcorn.com Web Page: gmpopcorn.com gmpopcorn.com Page 15... -
Page 16: Replacing Broken Glass
Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop and always purchase tempered glass. 1. Remove all loose pieces of glass. 2. Pull out magnetic clip to remove (clip located above glass panel in cabinet interior). 3. Remove all rigid glass channels from around the glass to be replaced. Set it aside as it must be reused. 4. Carefully remove the rest of the broken glass. 5. Apply decals (if desired) to the new glass panel. 6. Slide rigid glass channels over the exposed sides and bottom of new glass panel. 7. Carefully slide glass panel up under top ridge, then lower into the bottom channel. 8. Reinstall magnetic clip above the new panel in cabinet interior. Magnetic Clip Remove magnetic clip above To install, slide glass panel Lower glass panel into glass panel to remove glass. up under top ridge. bottom channel. General images shown for glass installation reference only. GLASS DIMENSIONS (Height X Width X Thickness) Front and Side Glass: 30” X 16 11/16” X 1/8” (3 Pieces) - Page 17 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 8 oz. Kettle Assembly (47987N) – Agitator Assembly Overall Kettle 58220 Agitator Assembly 58220 Complete Agitator Assembly (Includes Lids) See Kettle Bottom Assy. Complete Kettle Assembly *See Parts List note. 19, 20 Complete Agitator Assembly (Includes Lids) gmpopcorn.com Page 17...
- Page 18 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 8 oz. Kettle Assy. (47987N) – Agitator Assembly – Parts List Part Number Item Part Description 47987N 1/4‐20 X 1.25 THUMB SCREW 61068 8‐32 x 1/2 FH MS PH 106064 SHELL & KETTLE BLOCK 61013 8OZ LID & AGITATOR ASSY (Complete Assy.) 61026N CROSSBAR ASSEMBLY 61025 FORMED LID 47261 REAR KETTLE LID 47119 DUMP HANDLE ASSEMBLY (assembly includes 47102 Handle, Knob, Key, and the 2 fasteners shown)
- Page 19 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 8 oz. Kettle Assembly (47987N) – Kettle Bottom View Kettle Bottom Assembly 58220 Element View 47987N Kettle Bottom Assembly Element View Top Lock Nut ‐ Fastens each thermostat and ground. Install Lock Nut with triangle in UP position (as shown). ONE TIME USE ONLY, REPLACE NUT if removed. Thermostat Welded Stud Lock Nut View Part Number Item Part Description 47987N 8OZ KETTLE BOTTOM 61027N...
- Page 20 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Model 2131XJ – 8 oz. Kettle Assembly (47987JX) – Agitator Assy. Overall Kettle 61054EX Agitator Assembly 56000 *See Parts List note. 16, 14 See Kettle Bottom Assembly. Complete Kettle Assembly Complete Agitator Assembly (Includes Lids) Part Number Item Part Description 47987JX 1/4‐20 X 1/2 THUMB SCREW 61059 8‐32 x 1/2 FH MS PH 106064 KETTLE & SHELL BLOCK 61013 DUMP HANDLE – BLOCK WELDMENT...
- Page 21 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Model 2131XJ – 8 oz. Kettle Assembly (47987JX) – Kettle Bottom Kettle Bottom Assembly 58220 Element View 47987JX Kettle Bottom Assembly 8, 9 11 12 Element View Part Number Item Part Description 47987JX 8 OZ. KETTLE BOTTOM ASSEMBLY (includes 61027JX parts listed below) KETTLE SHELL 61017 KETTLE LEAD ASSY 61227J KETTLE GASKET 61012 8 OZ. KETTLE WELDMENT...
- Page 22 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Cabinet Exterior – Front View For lighted sign parts (if equipped), see Lighted Sign section. For Glass Panels, Model 2147 see Replacing See Kettle Glass section. Assembly Section 8, 9 Model 2152 Model 2452 General images shown for parts reference only (features vary by model). Model 2131 Part Number Item Part Description 2131 2452 2147 2152 2152ST Series Series DOME...
- Page 23 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Cabinet Exterior – Operator Side View 1, 2 *Complete Door Hardware Kit (See next page for individual component breakdown). 11** **CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order General image shown for parts reference only. to avoid a hazard. Part Number Item Part Description 2131 2452 2147 2152 2152ST Series Series MAGNETIC CATCH MT BRKT 47559 41340 41340...
- Page 24 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Door Hardware Kits – Individual Component Breakdown Complete Left Hand Door Complete Right Hand Door Hardware Kit (P/N 47054) Hardware Kit (P/N 47055) (contains all parts shown above) (contains all parts shown above) Part Number Item Part Description 47054 47055 DOOR KNOB 41013 41013 8‐32 X ½ SCREWS PH PAN W/SEMS 47124 47124 ACORN NUT #8‐32 47702 47702 TEE BOLT 75267 75267 MALE HINGE SHORT LEFT 41349...
- Page 25 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Cabinet Interior View – Controls – Parts Breakdown Controls – Switch Box Variations 14*, 15 *See Parts List note. LED Assembly Model 2131XJ only See Kettle Assembly section for Kettle parts breakdown. General images shown for parts reference only. Part Number Item Part Description 2131 2147 2152 2152ST 2452 Series 2131XJ SWITCH BOX 17473 48501 48501 49099 48501...
- Page 26 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Cabinet Interior - Heated Corn Deck View General image shown for parts reference only. Part Number Item Part Description All Models BOTTOM CORN PAN ASSY 120V (Complete 77522 Assembly, includes Female Cordset) BOTTOM CORN PAN 120V 77619 HEAT ELEMENT 115V, 75W 44026 COVER, CORN PAN CONDUIT 47653 STRAIN RELIEF SR‐6W‐1 82220 MALE CORDSET 61020 FEMALE CORDSET 61021 STRAIN RELIEF SR‐6P‐4 44073 CORNER COVER 77591 gmpopcorn.com...
- Page 27 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Dome Interior View Molded Receptacle used on lighted Model 2131XJ ‐ For LED sign models only (Molded Plug shown Assembly Replacement, see on Lighted Sign view.) Cabinet Interior section. Boost Transformer (Model 2452‐06‐000 and 2131XJ only) See Cabinet Assembly Interior PowerOff Control View for Controls. (Available on select models only.) General images shown for parts reference only (features vary by model). Part Number Item Part Description 2452 2131 2147 2152 2152ST 2452‐06‐000 2131XJ 2452‐00‐002 LAMP HOLDER 47047 47047...
- Page 28 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Lighted Sign Assembly (if equipped) Model 2452‐00‐002 Sign View Model 2452 Sign View Front Sign View Molded Plug seen here (Molded Receptacle shown on Dome Interior View.) Power Supply located on back of LED mount. Interior View ‐ LED Strip Power Supply 7, 8 fasteners General lighting images shown as reference for units with lighted sign option. Part Number Item Part Description 2452 2452‐00‐002 2452‐06‐000 POPCORN SIGN 111876 55583FG DOME REFLECTOR ASSY (assembly includes 55584 55584 parts listed below) MOUNT, FLOURESCENT OR LED...
- Page 29 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Accessories Item Part Description Part Number STAMPED ALUMINUM SCOOP 2071 MEASURE 6.5CC 47678 OIL MEASURE (1/3 CUP) 47150 MEASURE ONE CUP 47147 gmpopcorn.com Page 29...
-
Page 30: Wiring Diagram
Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Wiring Diagram Models 2131 gmpopcorn.com Page 30... - Page 31 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Models 2147, 2152, 2452 gmpopcorn.com Page 31...
- Page 32 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Models 2131XJ gmpopcorn.com Page 32...
- Page 33 Mid-Sized Poppers Model Series: 2131, 2147, 2152, 2452 Models 2452-06-000 gmpopcorn.com Page 33...
-
