- Page 1 Instruction Manual Main Street Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Model 2343 and Model 2344 (shown) Model 2344HO and Model 2345 (shown) 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2016 Gold Medal Products Co. Part No. 39406...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 4: Installation Instructions

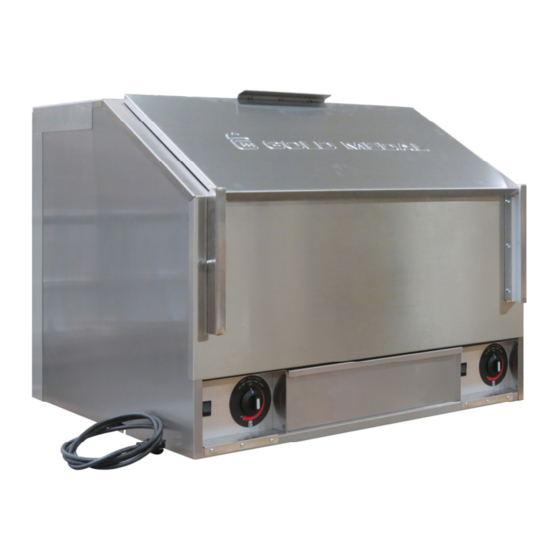

Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description Model 2343: 30 inch wide Staging Cabinet – one door, left hand control box with a single blower. Model 2344: 36 inch wide Staging Cabinet - one door, left hand control box with a single blower. -
Page 5: Electrical Requirements
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com... -
Page 6: Controls And Their Functions
30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 OPERATING INSTRUCTIONS Controls and Their Functions POWER SWITCH Two position, ON/OFF lighted rocker switch. Left Hand Power Switch (all Models) - supplies power to the cabinet lighting, and to the left hand blower and heat control. - Page 7 30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Operating Instructions 1. Load unit with popped popcorn. The popcorn should be sifted in the popper prior to loading into the Staging Cabinet. DO NOT fill above the cold air return vents, this will obstruct air flow and may allow pieces of popcorn to fall into air duct or in front of the interior front glass (if applicable).
-
Page 8: Care And Cleaning
1. Turn machine OFF, unplug unit and allow it to cool before attempting to clean. 2. Clean all pans/accessories in order to sanitize them before each use. 3. Clean mirror finish surfaces and glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. -
Page 9: Maintenance Instructions
30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 10: Ordering Spare Parts
30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. 2. Use only approved replacement parts when servicing this unit. -
Page 11: Replacing Broken Glass
Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop; always purchase tempered glass. GLASS DIMENSIONS Glass 2343 (30”... - Page 12 30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Cabinet Exterior – Front View 234 4E X an d 234 3 G ener al LED Close up Power Supply is mounted in For Glass Panels, see cold air return.
- Page 13 30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Cabinet Exterior – Operator View 234 4E X a nd 2 34 4- 04 -00 0 C lose Up 3, 2 For Labels, see Safety Labels section. 5, 6...
- Page 14 30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Control Box Interior View (Model 2343, 2344, and 2345) 234 4E X 1, 2 6, 7 8, 9 16, 17 Left Hand Control Box (See next page for high output control box view, Model 2344HO)
- Page 15 30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Control Box Interior View – High Output (Model 2344HO) 234 4HO 1, 2 6, 7 8, 9 17, 18 Left Hand High Output Control Box (See previous page for standard interior control box view.)
-
Page 16: Safety Labels
30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Safety Labels Unit Labels Power Cord Label Part Number Item Part Description All Models LABEL SAFE OPERATING INST 47010 LBL WARN DISCONNECT POWER 74119 LBL CAUTION DISCONNECT PR... -
Page 17: Wiring Diagram
30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Wiring Diagram Model No. 2343 gmpopcorn.com Page 17... - Page 18 30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Model No. 2344 gmpopcorn.com Page 18...
- Page 19 30” 36” and 48” Staging Cabinets Model No. 2343, 2344, 2344HO, 2345 Model No. 2344HO and 2345 gmpopcorn.com Page 19...
