Summary of Contents for Gold Medal 2102E

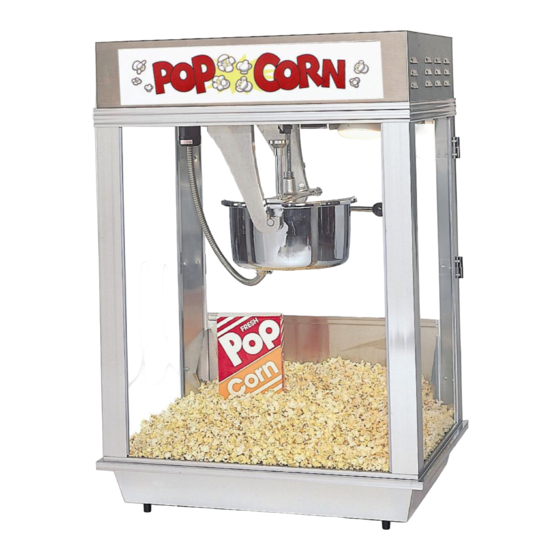

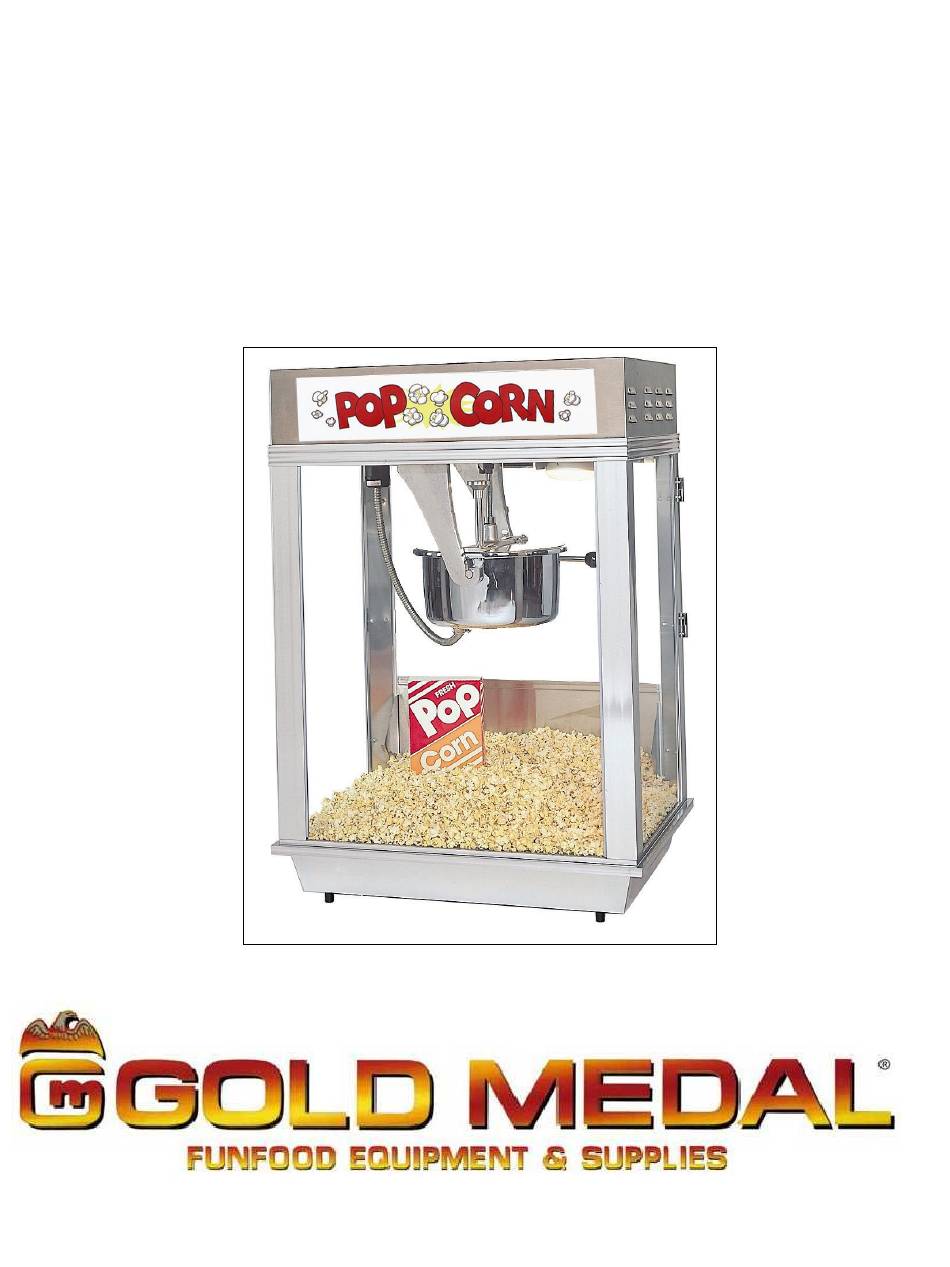

- Page 1 Part No.47664 Revised: November 2004 DELUXE CITATION Instruction Manual Model #2102E,EN,EST,XE,XEN,XEST,XESTJ Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS... -
Page 3: Installation Instructions
Follow the instructions provided in the oil pump manual to set the oil delivery amount. The proper amount of oil for the 14oz. Citation is about 4.5 ounces. To check for proper amount of oil, and assure oil is liquid, dispense a “shot” into a measuring cup. MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ... -
Page 4: Controls And Their Functions
2. Dump the popped corn from the kettle or Turn off the kettle heat switch if you are done popping corn. “KETTLE HEAT” “KETTLE MOTOR” When you are finished popping, make sure “OFF”. switches are turned NEVER LEAVE THE HEAT ON WHEN YOU ARE NOT POPPING. MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ... -
Page 5: Cleaning Instructions
1. Slide the filter (See figure 1 below) out of the bracket and clean with warm, soapy water. CAUTION: Keeping the filters clean is important to let the exhaust system “do its job”. Check the condition of the clear oil lines and tighten or replace as required. Figure 1: Filter MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ... -
Page 6: Maintenance Instructions
6. Replace glass retaining strips using the same screws you removed earlier. GLASS DIMENSIONS: Front Glass: 28 3/16 X 22 15/16 Side Glass: 28 3/16 X 15 ½ All glass purchased should be 1/8 inch thick, double strength. MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ... -
Page 7: Troubleshooting
It is important that red (-) is connected to red (-), and yellow (+) is connected to yellow (+), at the lead-in plug, the receptacle, and at the electronic heat control. Note that the red lead is magnetic if you have trouble determining which is which. MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ... - Page 8 OIL PUMP DOES NOT DELIVER OIL TO KETTLE If the pump is operating but oil is not dispensed, the oil may be solid in the oil lines. If the pump is not operating see the pump manual for instructions. MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
-
Page 9: Ordering Spare Parts
3. Please include your model name, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 10 For inside roof Components, see Page: 16 For inside cabinet Components, see For hinge part Pages: 13-14 numbers, see page: 20 For kettle Breakdown, see Pages: 17-19 For warmer components, see Page: 15 For cabinet components, see Pages: 11-12. MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
- Page 11 DELUXE CITATION CABINET ASSEMBLY – REAR VIEW MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
- Page 12 DELUXE CITATION CABINET ASSEMBLY – FRONT VIEW MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
- Page 13 DELUXE CITATION INSIDE CABINET COMPONENTS MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
- Page 14 DELUXE CITATION INSIDE CABINET COMPONENTS – CONTINUED MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
- Page 15 DELUXE CITATION WARMER ASSEMBLY MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
- Page 16 DELUXE CITATION INSIDE ROOF COMPONENTS MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
- Page 17 DELUXE CITATION KETTLE ASSEMBLY COMPLETE Lid and agitator parts on page18. Kettle bottom parts on page MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
-
Page 18: Lid And Agitator Assembly
DELUXE CITATION LID AND AGITATOR ASSEMBLY MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ... - Page 19 DELUXE CITATION KETTLE BOTTOM Note: Export kettle shown, domestic kettles have only (1) hi-limit thermostat. MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
-
Page 20: Door Hardware
DELUXE CITATION DOOR HARDWARE MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ... - Page 21 61186 61186 61186 61186 Warmer Thermostat 47385 47385 47385 47385 47385 47385 47385 Warmer Element 61184 61184 61184 61184EX 61184EX 61184EX 61184EX Blower Cover 61173 61173 61173 61173 61173 61173 61173 Blower 48018 48018 48018 48037 48037 48037 48037 MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
- Page 22 41878 500W Heat Element 41155 41155 41155 41156 41156 41156 41156 1050W Heat Element 47090 47090 47090 47671 47671 47671 47671 Kettle Gasket 41598 41598 41598 41598 41598 41598 41598 Door Knob 41013 41013 41013 41013 41013 41013 41013 MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
- Page 23 41350 41350 41350 41350 41350 Front Glass Retainer 47593 47593 47593 47593 47593 47593 47593 Power Supply Cord 47603 47603 47603 42369 42369 42369 42369 Oil Pump Harness 41499 41499 41499 41499 41499 41499 41499 * Item not shown MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
-
Page 24: Electrical Schematic
DELUXE CITATION ELECTRICAL SCHEMATIC MODELS: 2102E, 2102EN,2102EST MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ... - Page 25 DELUXE CITATION ELECTRICAL SCHEMATIC MODELS: 2102XE, 2102XEN,2102XEST MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
- Page 26 DELUXE CITATION ELECTRICAL SCHEMATIC MODELS: 2102XESTJ MODELS:2102E,EN,EST,XE,XEN,XEST,XESTJ...
-
Page 27: Warranty
DELUXE CITATION WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
