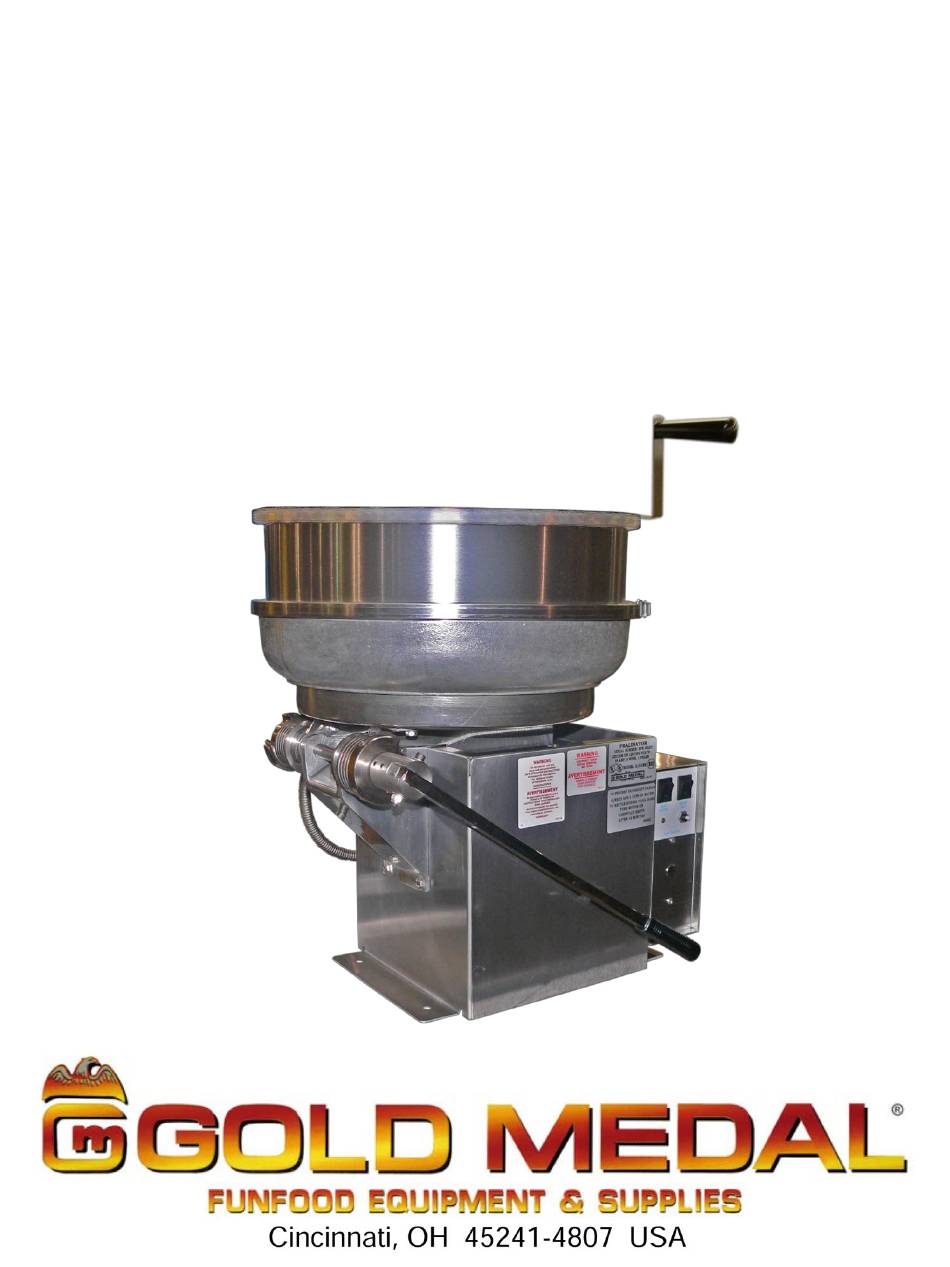

- Page 1 Part No. 77471 Pralinator Models 2180EL, 2180ER, 2181EL, 2181ER 2181DEL, 2181DER Instruction Manual For Domestic Electronic Models Manufactured after September 2004...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) General images may be used in manual for reference only.
-
Page 4: Installation Instructions
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. -
Page 5: Before You Plug In Machine
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install the unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614... -
Page 6: Controls And Their Functions
Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER CONTROLS AND THEIR FUNCTIONS HEAT SWITCH This rocker switch in the “ON” position energizes the heating elements in the bottom of the kettle, and the motor will also turn for 55 seconds of every minute. (It is normal for the motor to stop for 5 seconds of every minute.) - Page 7 2181 Models Make a solution of (3) parts water to (1) part Gold Medal imitation vanilla (Item # 4515). We recommend making at least 1 gallon of this “vanilla water” solution. (1 qt. of item # 4515 + 3 qts.
-
Page 8: Care And Cleaning
Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. DO NOT clean appliance with a water jet. Always unplug the equipment before cleaning or servicing. - Page 9 Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Daily Unit Cleaning Procedure Follow the directions below to clean and sanitize the unit each day after use. 1. With the machine OFF, unplug the unit and allow it to cool before attempting to clean.
-
Page 10: Maintenance Instructions
Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. - Page 11 Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER New Paddle/Hub Seal Kit Installation Kettle Shaft Maintenance 1. With the machine OFF, unplug unit from the power source and allow it to cool. 2. Loosen the wing bolts (Mixing Paddle Lock Studs) and remove the mix paddles.
-
Page 12: Ordering Spare Parts
Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Ordering Spare Parts 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. 2. Use only approved replacement parts when servicing this unit. 3. When ordering, please include part number, part name, and quantity needed. - Page 13 Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Pralinator System Controller – For Models 2180EL(ER) and 2181EL(ER) Resistor, 910 k, ½ W Resistor, 82 k, ½ W Circuit Breaker, 15 Switch, Rocker DPDT (front, “On”) p/n 48691 (rear, “Off”) p/n 48692...
- Page 14 Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Pralinator Digital System Controller - For Models 2181DEL, 2181DER Resistor, 82 k, ½ W Timer, Percentage Resistor, 910 k, ½ W (rear, “Off”) p/n 48692 (front, “On”) p/n 48691 60 sec. p/n 48688...
- Page 15 Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Kettle—Interior, Mounting, Drive, and Coupling Coupling Body, 3/4” Bore p/n 46145 Flexible Spider Motor Mount p/n 16708 p/n 12141 Coupling Body, 5/8” Kettle Rest Bumper Bore p/n 46144 p/n 83111 Kettle Lead-In Cord...
- Page 16 Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Kettle—Interior, Mounting, Drive, and Coupling (cont.) Hub Seal Assembly O-Ring p/n 46631 p/n 46632 (inc. w/Hub Seal Assy.) p/n 46632 Kettle Lead-In Spacer, Large, Assembly (Dump Side) p/n 48769 p/n 74659 p/n 16707...
- Page 17 Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Kettle Bottom 120V – 1000W Heat 120V – 1500W Tubular 120V – 720W Tubular Element p/n 41536 Element p/n 48800 Element p/n 55279 (Model 2180EL/ER (No inner heat element 120V – 275W Heat...
- Page 18 Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Electrical Schematic Model 2180EL and 2180ER For electronic models made after 9/04...
- Page 19 Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Electrical Schematic Model 2181EL and 2181ER For electronic models made after 9/04...
- Page 20 Pralinator 2180EL, 2180ER, 2181EL, 2181ER, 2181DEL, 2181DER Electrical Schematic Model 2181DEL and 2181DER For electronic models made after 9/04...
-
Page 21: Warranty
© 2018 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
