Changing Serial Port Settings; Chapter 3 Page 30 - Brainboxes CC-607 Hardware Manual

PCI Photon Twin 9

Changing Serial Port Settings

Adding a Photon Twin 9 Card to the system automatically sets
default values for communications settings to 9600 Baud, 8 Data
Bits, No Parity and 1 Stop Bit.
To view the settings of a port, select it and click on Settings.

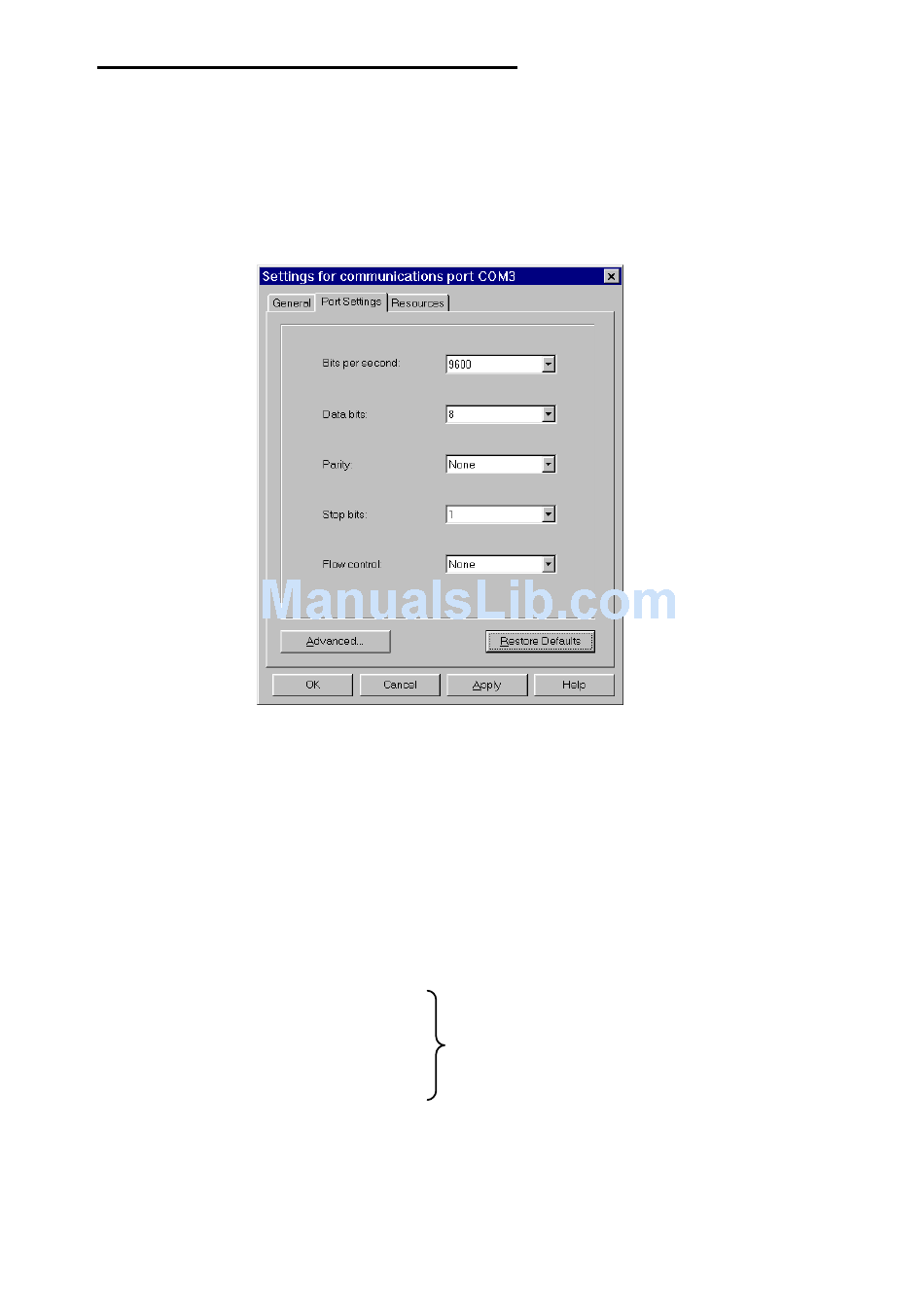

Clicking on the Port Settings tab opens up the following window:
Settings available in this window are:
1. Baud Rate - determines the baud rate at which the selected
port operates, providing it is not overridden by any serial
comms applications in use. PCI Photon Twin 9 will operate
correctly up to 230,400 baud at distances of up to 10 meters,
Note: Many serial comms applications will not actually
register the ports as running at baud rates of above 115200.
2. Data Bits.
3. Parity.
4. Stop Bits.
5. Flow Control.
6. Advanced - see the section below, titled "Advanced Port
Settings."
Software Installation
Change to suit remote device.

Chapter 3 Page 30
