PCI Photon Twin 9
Adding an PCI Photon Twin 9 Serial Card.

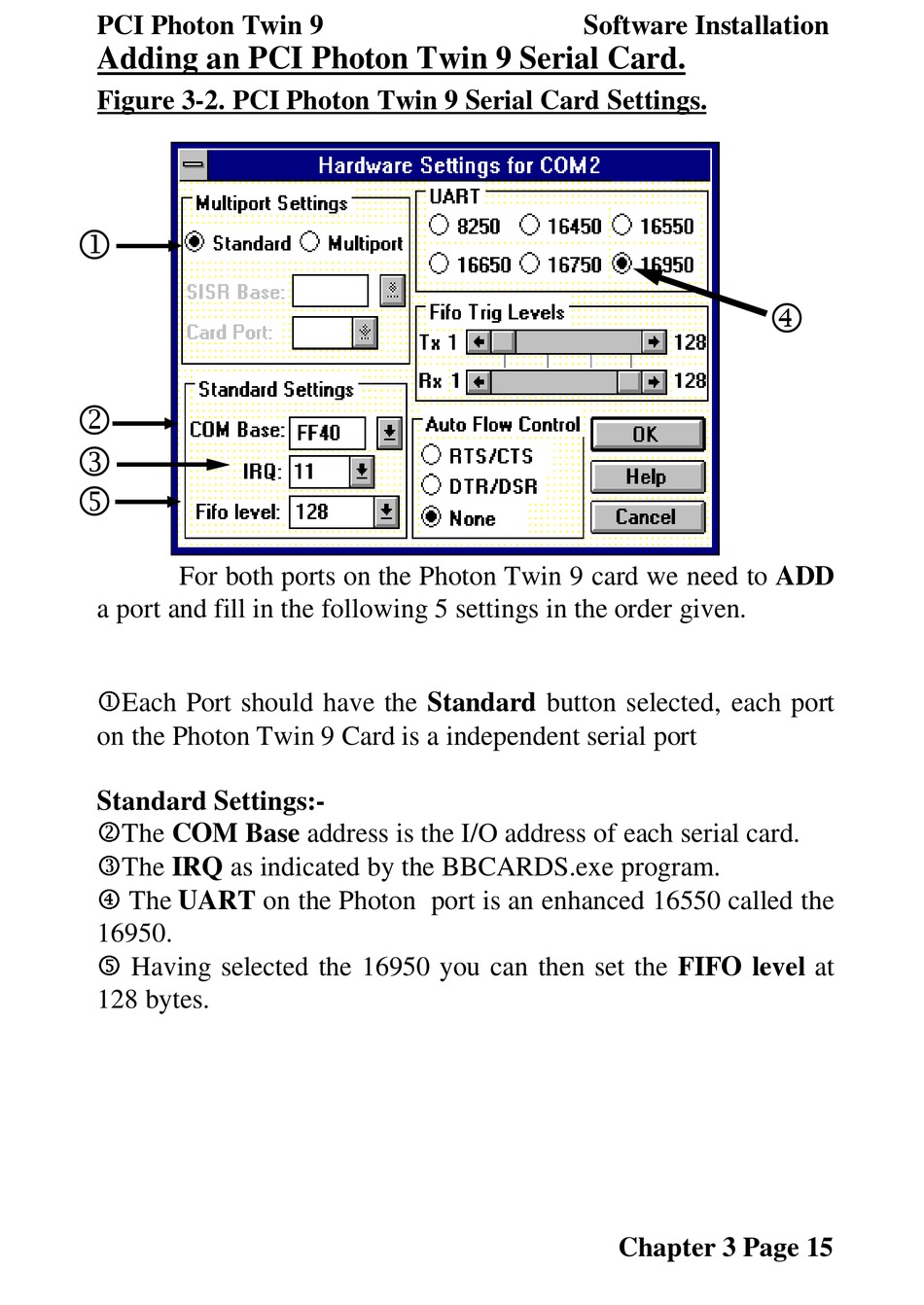

Figure 3-2. PCI Photon Twin 9 Serial Card Settings.
For both ports on the Photon Twin 9 card we need to ADD
a port and fill in the following 5 settings in the order given.
j
Each Port should have the Standard button selected, each port
on the Photon Twin 9 Card is a independent serial port
Standard Settings:-
k
The COM Base address is the I/O address of each serial card.
l
The IRQ as indicated by the BBCARDS.exe program.
m
The UART on the Photon port is an enhanced 16550 called the
16950.
n
Having selected the 16950 you can then set the FIFO level at
128 bytes.
