PCI Photon Twin 9
Note: Adding a port automatically sets default values for the
communications settings to 9600 baud, no parity, 8 data bits and 1
stop bit. These values can be changed as described below.

Configuring The COM Ports.

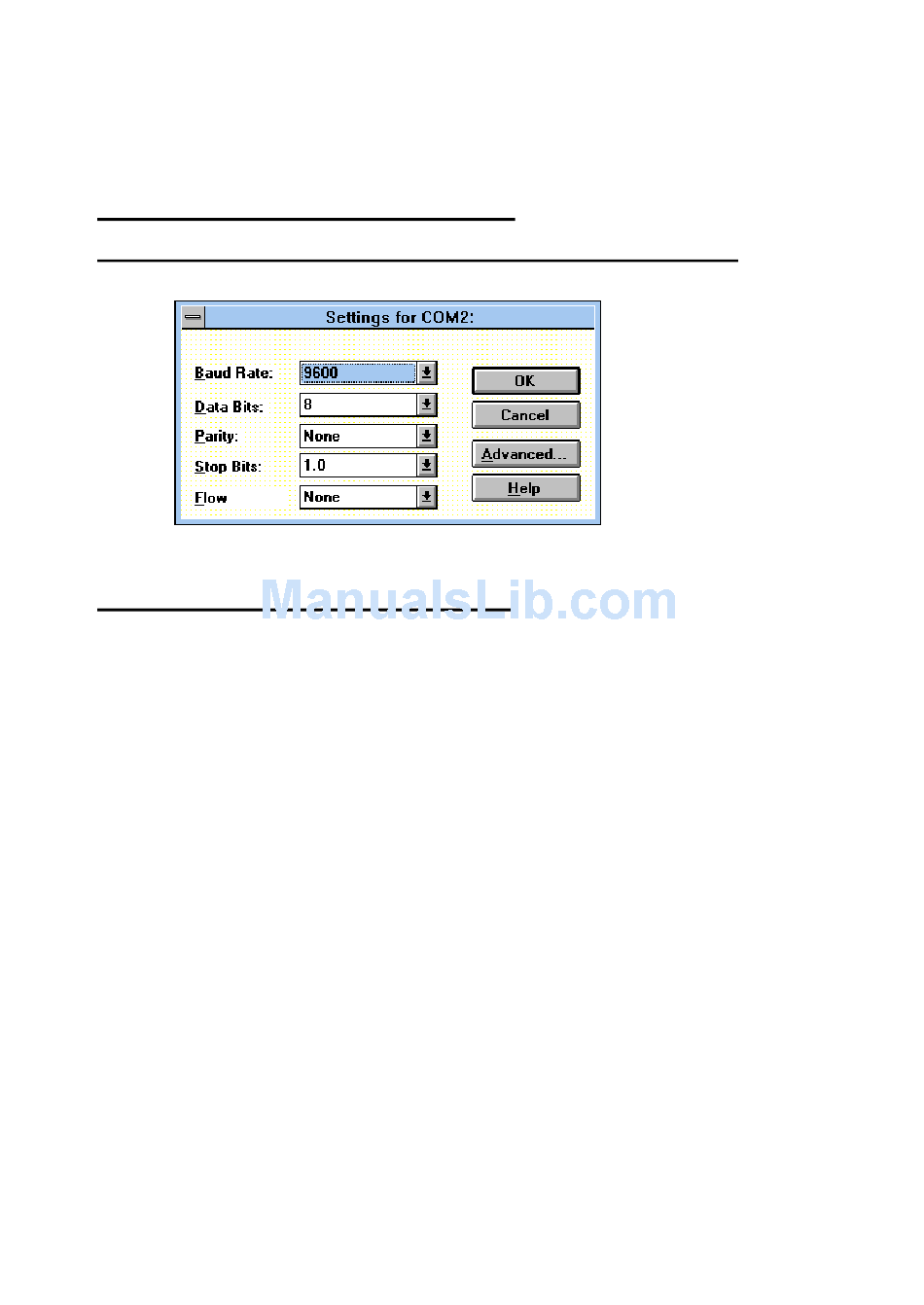

Figure 3-4 PCI Photon Twin 9 Card Comms Settings

Changing Serial Port Settings

Once the Photon Twin 9 card has been installed it may be
necessary to change the communications settings in the COM
Ports to match the baud rate, parity settings etc. of the remote
serial device.
l
Highlight the serial port required, e.g. COM2., in Serial Ports,
Control Panel
l
Click on the Settings button to change the communications
settings, Figure 5-3.
l
Select the appropriate communications settings, which must
match the communications settings on the remote device.
l
Click on the OK button to leave the communications Settings
window.
The Advanced option in Settings can be used to change the
hardware settings to match a new base address and IRQ because
the PC's BIOS has reallocated the PCI resources due to the
installation of other new hardware.
Software Installation
Chapter 3 Page 18
