4.1.4 Site Requirements

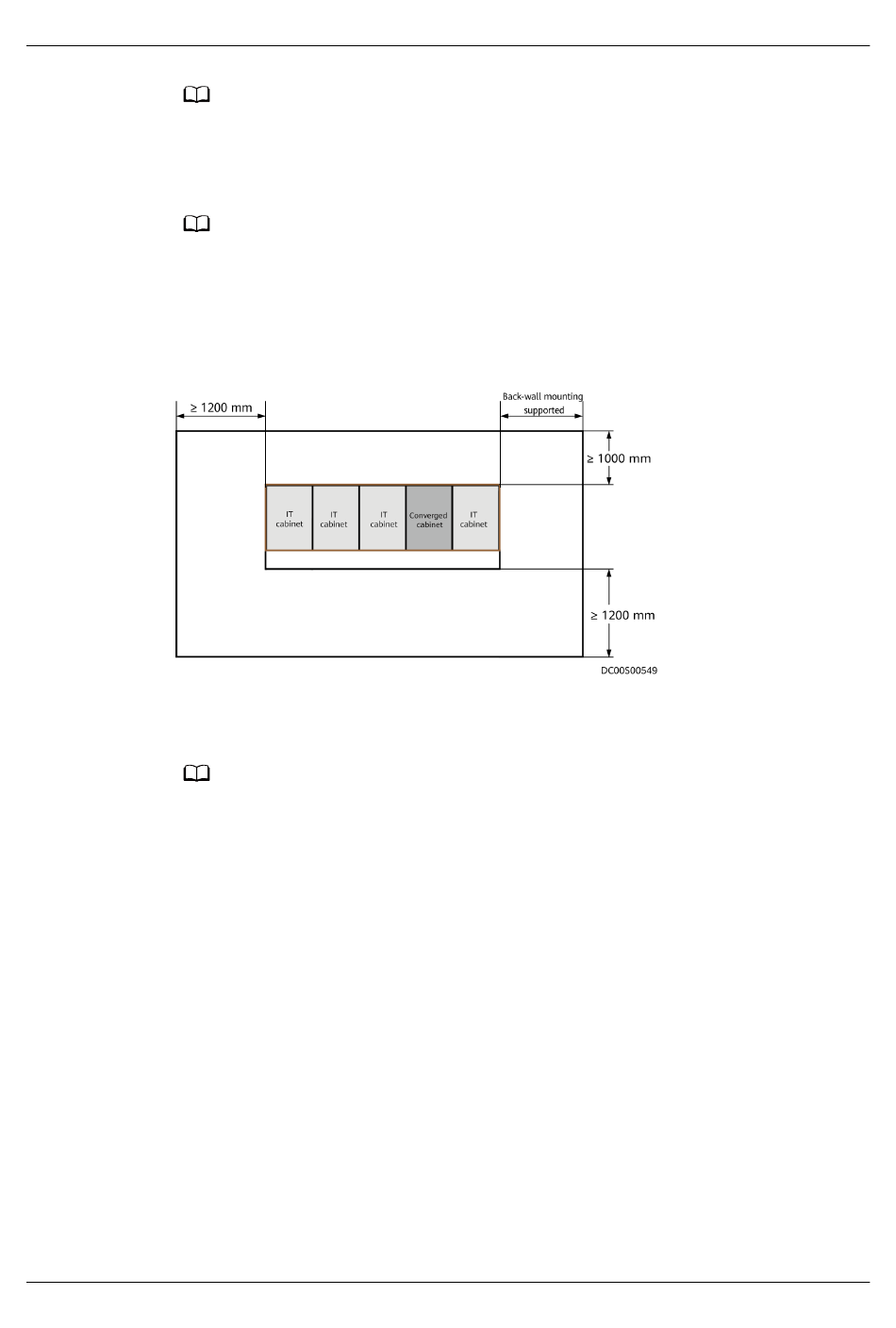

Figure 4-1 Site space requirements

4.1.5 Installation Scenarios

Different quantities of batteries can be installed in the Converged Cabinet
depending on configurations.
Issue 01 (2021-02-05)
NO TE
The customer needs to purchase power cables based on site requirements.
NO TE
● The cabinet layouts shown in the figures are for ease of description and do not provide
reference for engineering layout.
● If the site conditions do not meet the space requirements, contact Huawei technical
support.
NO TE
The component layout illustrates only the positions of components. The actual component
installation positions prevail.
Copyright © Huawei Technologies Co., Ltd.
Figure 4-2 shows the recommended layout.
